Accessing data on NASA Earthdata servers via OPeNDAP protocol

Author

Eli Holmes (NOAA)

📘 Learning Objectives

Show how to work with NASA OPeNDAP for EULA and non-EULA data

Create a NASA EDL session for authentication

Load single files with xarray.open_dataset

Load multiple files with xarray.open_mfdataset

Overview

NASA OPeNDAP servers (have nasa.gov in url) require Earthdata Login (EDL) authentication and some require an End User Licence Agreement (EULA). Here is the list of NASA OPeNDAP servers. There are Hyrax, GraDS and THREDDS servers. They behave slightly differently so it is good to know which one you are using.

In my experience, the NASA OPeNDAP is hard to work with due to the authentication and redirect issues that arise for data that require EULAs and for other unknown reasons. To deal with this, I will show a workflow using engine="pydap" and setting up an authenticated session using earthaccess. Although you can set up authentication with PyDAP, I find that tends to be fragile and only works consistently if you use an Earthdata token and do not use username/password. earthaccess automates the token part for you so you don’t have to do that manually. To see how to set up authentication with PyDAP see the extra notebook for that.

BTW, I would try first to find the data on https://search.earthdata.nasa.gov/search and try to use earthaccess results which would point you to the non-opendap cloud links. The earthaccess workflow for creating data cubes with xarray.open_mfdataset is quite a bit easier with fewer gotchas.

References

https://podaac.jpl.nasa.gov/OPeNDAP-in-the-Cloud

Prerequisites

I assume you have a .netrc file at ~ (home). ~/.netrc should look just like this with your username and password. Create that file if needed.

machine urs.earthdata.nasa.gov
        login yourusername
        password yourpassword

Setup for Colab

# uncomment and run if on Colab
#!pip install -q netCDF4 pydap earthaccess

Import packages

import xarray as xr
import pydap.client

Create a NASA EDL authenticated session

Authenticate with earthaccess.login() then create the session which will create the right headers when we (or pydap) does requests.

import earthaccess
earthaccess.login()
edl_session = earthaccess.get_requests_https_session()

Example 1: Hyrax server - NO EULA

Let’s go to this oceancolor OPeNDAP server https://oceandata.sci.gsfc.nasa.gov/opendap/. It is Hyrax, which we can see in the footer. These have both DAP4 and DAP2 protocols. With pydap, you can specify protocol="dap4" so it knows which one to use. But xarray.open_dataset() doesn’t accept the protocol argument so we need to use a work around.

We dig into the directory to find the PACE-OCI data and then look at the L3SMI directory: https://oceandata.sci.gsfc.nasa.gov/opendap/PACE_OCI/L3SMI/2024/0301/contents.html

We will navigate to the PACE_OCI.20240301_20240331.L3m.MO.AVW.V3_0.avw.0p1deg.nc file in 2024/0301. Here is the url which you will see when you click on the file and get to the “OPeNDAP DAP4 Data Request Form”. This a monthly average.

url="http://oceandata.sci.gsfc.nasa.gov/opendap/PACE_OCI/L3SMI/2024/0301/PACE_OCI.20240301_20240331.L3m.MO.AVW.V3_0.avw.0p1deg.nc"

But to open with xarray, we need to replace the http (or https) with dap4.

Loading a single file

url="http://oceandata.sci.gsfc.nasa.gov/opendap/PACE_OCI/L3SMI/2024/0301/PACE_OCI.20240301_20240331.L3m.MO.AVW.V3_0.avw.0p1deg.nc"
dap4_url = url.replace("http", "dap4", 1)
ds = xr.open_dataset(dap4_url, engine="pydap", session=edl_session)
ds

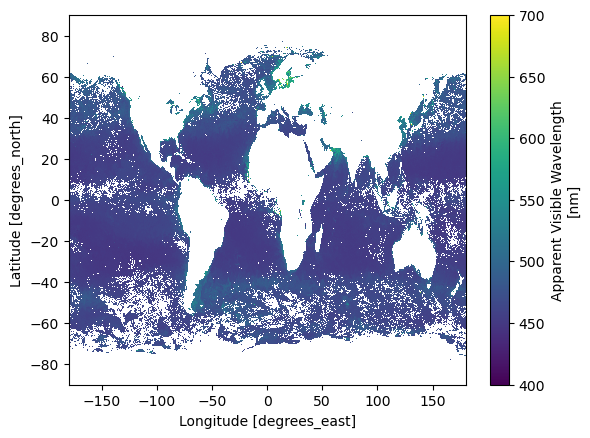

We can plot. Note the indices have slashes which we will want to fix and the lat/lon need to be associated with the values in the lat/lon variable, but we are able to create our xarray dataset so we can now work with it with standard syntax and clean it up.

Here a do a plot. Note I did not rename the indices to get rid of the slashes, so I have to use dict format for my .sel command.

ds.avw.plot()

Opening multiple files

Let’s combine 3 months.

mar = "http://oceandata.sci.gsfc.nasa.gov/opendap/PACE_OCI/L3SMI/2024/0301/PACE_OCI.20240301_20240331.L3m.MO.AVW.V3_0.avw.0p1deg.nc"
apr = "http://oceandata.sci.gsfc.nasa.gov/opendap/PACE_OCI/L3SMI/2024/0401/PACE_OCI.20240401_20240430.L3m.MO.AVW.V3_0.avw.0p1deg.nc"
may = "http://oceandata.sci.gsfc.nasa.gov/opendap/PACE_OCI/L3SMI/2024/0501/PACE_OCI.20240501_20240531.L3m.MO.AVW.V3_0.avw.0p1deg.nc"
urls = [mar, apr, may]

dap4_urls = [url.replace("http", "dap4", 1) for url in urls]
ds = xr.open_mfdataset(
    dap4_urls, engine="pydap",
    combine='nested', concat_dim="/time",
    session=edl_session)

ds

<xarray.Dataset> Size: 78MB
Dimensions:  (/time: 3, lat: 1800, lon: 3600, rgb: 3, eightbitcolor: 256)
Coordinates:
  * lat      (lat) float32 7kB 89.95 89.85 89.75 89.65 ... -89.75 -89.85 -89.95
  * lon      (lon) float32 14kB -179.9 -179.9 -179.8 ... 179.8 179.9 180.0
Dimensions without coordinates: /time, rgb, eightbitcolor
Data variables:
    avw      (/time, lat, lon) float32 78MB dask.array<chunksize=(1, 1800, 3600), meta=np.ndarray>
    palette  (/time, rgb, eightbitcolor) uint8 2kB dask.array<chunksize=(1, 3, 256), meta=np.ndarray>
Attributes: (12/62)
    product_name:                      PACE_OCI.20240301_20240331.L3m.MO.AVW....
    instrument:                        OCI
    title:                             OCI Level-3 Standard Mapped Image
    project:                           Ocean Biology Processing Group (NASA/G...
    platform:                          PACE
    source:                            satellite observations from OCI-PACE
    ...                                ...
    cdm_data_type:                     grid
    identifier_product_doi_authority:  http://dx.doi.org
    identifier_product_doi:            10.5067/PACE/OCI/L3M/AVW/3.0
    data_bins:                         Attribute elided: Unsupported attribut...
    data_minimum:                      399.999969
    data_maximum:                      700.000061

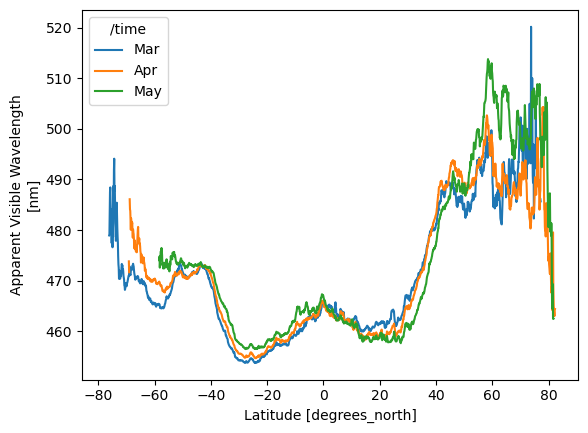

Plot mean AVW over all longitudes (global) by latitude and month

lat_mean = ds["avw"].mean(dim=["lon"])
lat_mean

<xarray.DataArray 'avw' (/time: 3, lat: 1800)> Size: 22kB
dask.array<mean_agg-aggregate, shape=(3, 1800), dtype=float32, chunksize=(1, 1800), chunktype=numpy.ndarray>
Coordinates:
  * lat      (lat) float32 7kB 89.95 89.85 89.75 89.65 ... -89.75 -89.85 -89.95
Dimensions without coordinates: /time
Attributes:
    long_name:      Apparent Visible Wavelength
    units:          nm
    valid_min:      400.0
    valid_max:      700.0
    reference:      Vandermeulen, R. A., Mannino, A., Craig, S.E., Werdell, P...
    display_scale:  linear
    display_min:    450.0
    display_max:    575.0
    Maps:           ('/lat', '/lon')

# Define custom labels for each time step
custom_time_labels = ["Mar", "Apr", "May"]  # Adjust based on actual time steps

# Assign new labels to the time coordinate
lat_mean = lat_mean.assign_coords({"/time": custom_time_labels})

# Plot
lat_mean.plot.line(x="lat");

Example 2: Get URL via CMR search

We are getting 6 hours of data.

import requests

# Define variables
# Get the concept_id from https://search.earthdata.nasa.gov/
concept_id = "C2036877806-POCLOUD"
start_time = "2022-01-01T00:00:00Z"
end_time = "2022-01-01T06:00:00Z"

# Format the CMR search URL with variables
url = f"https://cmr.earthdata.nasa.gov/search/granules.umm_json?collection_concept_id={concept_id}&temporal={start_time},{end_time}&pageSize=365"

# Make the request
r = requests.get(url)
response_body = r.json()

# Print response status
print(r.status_code)  # Should be 200 if successful

Now find the urls with opendap in them. Those are the ones we want.

od_files = []
for itm in response_body['items']:
    for urls in itm['umm']['RelatedUrls']:
        if 'OPeNDAP' in urls['Description']:
            od_files.append(urls['URL'])

od_files

['https://opendap.earthdata.nasa.gov/collections/C2036877806-POCLOUD/granules/20220101000000-OSISAF-L3C_GHRSST-SSTsubskin-GOES16-ssteqc_goes16_20220101_000000-v02.0-fv01.0',
 'https://opendap.earthdata.nasa.gov/collections/C2036877806-POCLOUD/granules/20220101010000-OSISAF-L3C_GHRSST-SSTsubskin-GOES16-ssteqc_goes16_20220101_010000-v02.0-fv01.0',
 'https://opendap.earthdata.nasa.gov/collections/C2036877806-POCLOUD/granules/20220101020000-OSISAF-L3C_GHRSST-SSTsubskin-GOES16-ssteqc_goes16_20220101_020000-v02.0-fv01.0',
 'https://opendap.earthdata.nasa.gov/collections/C2036877806-POCLOUD/granules/20220101030000-OSISAF-L3C_GHRSST-SSTsubskin-GOES16-ssteqc_goes16_20220101_030000-v02.0-fv01.0',
 'https://opendap.earthdata.nasa.gov/collections/C2036877806-POCLOUD/granules/20220101040000-OSISAF-L3C_GHRSST-SSTsubskin-GOES16-ssteqc_goes16_20220101_040000-v02.0-fv01.0',
 'https://opendap.earthdata.nasa.gov/collections/C2036877806-POCLOUD/granules/20220101050000-OSISAF-L3C_GHRSST-SSTsubskin-GOES16-ssteqc_goes16_20220101_050000-v02.0-fv01.0',
 'https://opendap.earthdata.nasa.gov/collections/C2036877806-POCLOUD/granules/20220101060000-OSISAF-L3C_GHRSST-SSTsubskin-GOES16-ssteqc_goes16_20220101_060000-v02.0-fv01.0']

# make sure we have an authenticated session
import earthaccess
earthaccess.login()
edl_session = earthaccess.get_requests_https_session()

Read in the files and combine using the “dap4” replacement again. If you go to <opendap.earthdata.nasa.gov>, you will see that it is Hyrax and we need “dap4” for that. The file complains about decode_cf so I set that.

%%time
dap4_urls = [url.replace("https", "dap4", 1) for url in od_files]
ds = xr.open_mfdataset(
    dap4_urls, engine="pydap",
    combine='nested', concat_dim="time",
    decode_cf=False,
    session=edl_session)

CPU times: user 413 ms, sys: 21 ms, total: 434 ms
Wall time: 54.5 s

ds

<xarray.Dataset> Size: 1GB
Dimensions:                    (time: 7, lat: 2400, lon: 2400)
Coordinates:
  * time                       (time) int32 28B 1293840000 ... 1293861600
  * lat                        (lat) float32 10kB -59.97 -59.92 ... 59.92 59.97
  * lon                        (lon) float32 10kB -135.0 -134.9 ... -15.02
Data variables: (12/16)
    wind_speed                 (time, lat, lon) int8 40MB dask.array<chunksize=(1, 2400, 2400), meta=np.ndarray>
    sses_standard_deviation    (time, lat, lon) int8 40MB dask.array<chunksize=(1, 2400, 2400), meta=np.ndarray>
    sst_dtime                  (time, lat, lon) int32 161MB dask.array<chunksize=(1, 2400, 2400), meta=np.ndarray>
    solar_zenith_angle         (time, lat, lon) int8 40MB dask.array<chunksize=(1, 2400, 2400), meta=np.ndarray>
    sea_ice_fraction           (time, lat, lon) int8 40MB dask.array<chunksize=(1, 2400, 2400), meta=np.ndarray>
    l2p_flags                  (time, lat, lon) int32 161MB dask.array<chunksize=(1, 2400, 2400), meta=np.ndarray>
    ...                         ...
    dt_analysis                (time, lat, lon) int8 40MB dask.array<chunksize=(1, 2400, 2400), meta=np.ndarray>
    satellite_zenith_angle     (time, lat, lon) int8 40MB dask.array<chunksize=(1, 2400, 2400), meta=np.ndarray>
    or_longitude               (time, lat, lon) int16 81MB dask.array<chunksize=(1, 2400, 2400), meta=np.ndarray>
    adi_dtime_from_sst         (time, lat, lon) int8 40MB dask.array<chunksize=(1, 2400, 2400), meta=np.ndarray>
    or_latitude                (time, lat, lon) int16 81MB dask.array<chunksize=(1, 2400, 2400), meta=np.ndarray>
    sses_bias                  (time, lat, lon) int8 40MB dask.array<chunksize=(1, 2400, 2400), meta=np.ndarray>
Attributes: (12/48)
    Conventions:                CF-1.4
    title:                      Sea Surface Temperature
    summary:                    The L3C product derived from GOES16/ABI brigh...
    references:                 Geostationary Sea Surface Temperature Product...
    institution:                OSISAF
    comment:                    None
    ...                         ...
    date_created:               20220101T005618Z
    start_time:                 20211231T234044Z
    time_coverage_start:        20211231T234044Z
    stop_time:                  20220101T001929Z
    time_coverage_end:          20220101T001929Z
    netcdf_version_id:          4.6.3

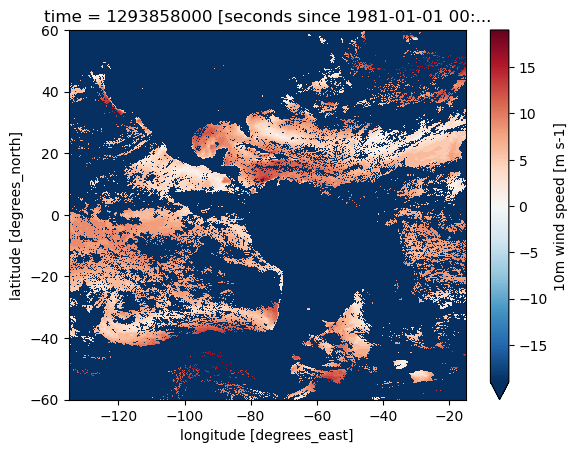

ds["wind_speed"].isel(time=5).plot();

/srv/conda/envs/notebook/lib/python3.12/site-packages/xarray/plot/utils.py:253: RuntimeWarning: overflow encountered in scalar absolute
  vlim = max(abs(vmin - center), abs(vmax - center))

Example 3: Data with a EULA - GrADS server

Prerequisites

Make sure you have the GESDISC EULA accepted.

Log into https://urs.earthdata.nasa.gov
Then go here https://urs.earthdata.nasa.gov/profile
Then click EULAs
Go to unaccepted EULAs and make sure that GESDISC is accepted

# the GESDISC data requires a EULA
eula_url = 'https://goldsmr4.gesdisc.eosdis.nasa.gov/opendap/MERRA2/M2T1NXSLV.5.12.4/2016/06/MERRA2_400.tavg1_2d_slv_Nx.20160601.nc4'

# make sure we have an authenticated session
import earthaccess
earthaccess.login()
edl_session = earthaccess.get_requests_https_session()

# this is NOT Hyrax server. Use the url as is.
ds = xr.open_dataset(eula_url, engine="pydap", session=edl_session)
ds

/srv/conda/envs/notebook/lib/python3.12/site-packages/pydap/handlers/dap.py:143: UserWarning: PyDAP was unable to determine the DAP protocol defaulting to DAP2. DAP2 is consider legacy and may result in slower responses.
Consider replacing `http` in your `url` with either `dap2` or `dap4` to specify the DAP protocol (e.g. `dap2://<data_url>` or `dap4://<data_url>`).  For more
information, go to https://www.opendap.org/faq-page.
  warnings.warn(

Getting ds did not get the data. So wouldn’t run into the EULA problem. But once we try to plot, we would run into the EULA. If we didn’t not have it accepted, it would not let us read the data. But even if it were accepted, it can be tricky to get past re-directs. Fortunately the earthaccess authenticated session works well as it gets the EDL token for us automatically.

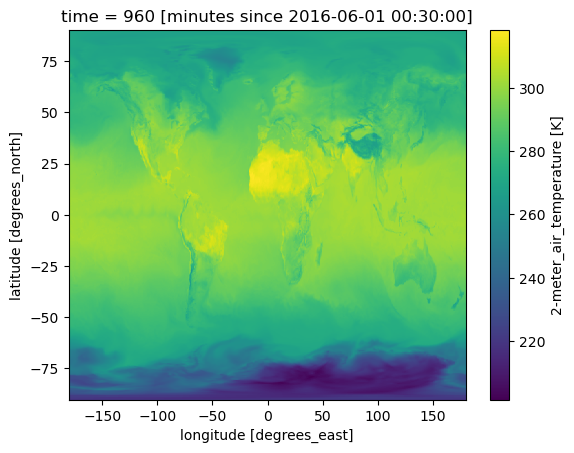

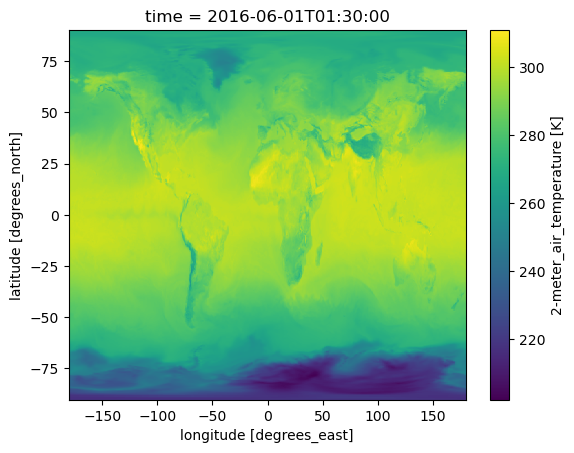

ds["T2M"].isel(time=1).plot();

Creating data cubes

Data cubes with data that have EULA often goes south (re-directs) but with earthaccess authenticated sessions it works well.

eula_url1 = 'dap4://goldsmr4.gesdisc.eosdis.nasa.gov/opendap/MERRA2/M2T1NXSLV.5.12.4/2016/06/MERRA2_400.tavg1_2d_slv_Nx.20160601.nc4'
eula_url2 = 'dap4://goldsmr4.gesdisc.eosdis.nasa.gov/opendap/MERRA2/M2T1NXSLV.5.12.4/2016/06/MERRA2_400.tavg1_2d_slv_Nx.20160602.nc4'
eula_urls = [eula_url1, eula_url2]

%%time
import xarray as xr
# very fast and this is 1Tb of data
ds = xr.open_mfdataset(eula_urls, engine="pydap",
                       combine="nested", concat_dim="time",
                       decode_cf=False, session=edl_session)
ds

CPU times: user 231 ms, sys: 0 ns, total: 231 ms
Wall time: 2.95 s

<xarray.Dataset> Size: 2GB
Dimensions:   (time: 48, lat: 361, lon: 576)
Coordinates:
  * time      (time) int32 192B 0 60 120 180 240 ... 1140 1200 1260 1320 1380
  * lat       (lat) float64 3kB -90.0 -89.5 -89.0 -88.5 ... 88.5 89.0 89.5 90.0
  * lon       (lon) float64 5kB -180.0 -179.4 -178.8 ... 178.1 178.8 179.4
Data variables: (12/47)
    CLDPRS    (time, lat, lon) float32 40MB dask.array<chunksize=(24, 361, 576), meta=np.ndarray>
    CLDTMP    (time, lat, lon) float32 40MB dask.array<chunksize=(24, 361, 576), meta=np.ndarray>
    DISPH     (time, lat, lon) float32 40MB dask.array<chunksize=(24, 361, 576), meta=np.ndarray>
    H1000     (time, lat, lon) float32 40MB dask.array<chunksize=(24, 361, 576), meta=np.ndarray>
    H250      (time, lat, lon) float32 40MB dask.array<chunksize=(24, 361, 576), meta=np.ndarray>
    H500      (time, lat, lon) float32 40MB dask.array<chunksize=(24, 361, 576), meta=np.ndarray>
    ...        ...
    V250      (time, lat, lon) float32 40MB dask.array<chunksize=(24, 361, 576), meta=np.ndarray>
    V2M       (time, lat, lon) float32 40MB dask.array<chunksize=(24, 361, 576), meta=np.ndarray>
    V500      (time, lat, lon) float32 40MB dask.array<chunksize=(24, 361, 576), meta=np.ndarray>
    V50M      (time, lat, lon) float32 40MB dask.array<chunksize=(24, 361, 576), meta=np.ndarray>
    V850      (time, lat, lon) float32 40MB dask.array<chunksize=(24, 361, 576), meta=np.ndarray>
    ZLCL      (time, lat, lon) float32 40MB dask.array<chunksize=(24, 361, 576), meta=np.ndarray>
Attributes: (12/31)
    History:                           Original file generated: Tue Jun 14 18...
    Comment:                           GMAO filename: d5124_m2_jan10.tavg1_2d...
    Filename:                          MERRA2_400.tavg1_2d_slv_Nx.20160601.nc4
    Conventions:                       CF-1
    Institution:                       NASA Global Modeling and Assimilation ...
    References:                        http://gmao.gsfc.nasa.gov
    ...                                ...
    identifier_product_doi:            10.5067/VJAFPLI1CSIV
    RangeBeginningDate:                2016-06-01
    RangeBeginningTime:                00:00:00.000000
    RangeEndingDate:                   2016-06-01
    RangeEndingTime:                   23:59:59.000000
    Unlimited_Dimension:               time

print(f"Dataset size: {ds.nbytes/1e6:.2f} MB")

Dataset size: 1876.42 MB

ds["T2M"].isel(time=40).plot();

Example 4 Using constraint expresions

In this example from the pydap documentation, constraint expression is used just to get certain variables when the OPeNDAP server uses Hyrax. See full notebook here. Using the constraint expression can greatly speed up the data access.

baseURL = 'dap4://opendap.earthdata.nasa.gov/providers/POCLOUD/collections/'
Temp_Salt = "ECCO%20Ocean%20Temperature%20and%20Salinity%20-%20Monthly%20Mean%20llc90%20Grid%20(Version%204%20Release%204)/granules/OCEAN_TEMPERATURE_SALINITY_mon_mean_"
year = '2017-'
month = '01'
end_ = '_ECCO_V4r4_native_llc0090'
CE = '?dap4.ce=/THETA;/SALT;/tile;/j;/k;/i;/time'

Temp_2017 = [baseURL + Temp_Salt + year + f'{i:02}' + end_ + CE for i in range(1, 4)]
Temp_2017

['dap4://opendap.earthdata.nasa.gov/providers/POCLOUD/collections/ECCO%20Ocean%20Temperature%20and%20Salinity%20-%20Monthly%20Mean%20llc90%20Grid%20(Version%204%20Release%204)/granules/OCEAN_TEMPERATURE_SALINITY_mon_mean_2017-01_ECCO_V4r4_native_llc0090?dap4.ce=/THETA;/SALT;/tile;/j;/k;/i;/time',
 'dap4://opendap.earthdata.nasa.gov/providers/POCLOUD/collections/ECCO%20Ocean%20Temperature%20and%20Salinity%20-%20Monthly%20Mean%20llc90%20Grid%20(Version%204%20Release%204)/granules/OCEAN_TEMPERATURE_SALINITY_mon_mean_2017-02_ECCO_V4r4_native_llc0090?dap4.ce=/THETA;/SALT;/tile;/j;/k;/i;/time',
 'dap4://opendap.earthdata.nasa.gov/providers/POCLOUD/collections/ECCO%20Ocean%20Temperature%20and%20Salinity%20-%20Monthly%20Mean%20llc90%20Grid%20(Version%204%20Release%204)/granules/OCEAN_TEMPERATURE_SALINITY_mon_mean_2017-03_ECCO_V4r4_native_llc0090?dap4.ce=/THETA;/SALT;/tile;/j;/k;/i;/time']

Create data cube with open_mfdataset but not concat dim is /time not time. This takes a really long time, but if we didn’t do the constraint expression part, it would take much longer. So it is good to do that step.

%%time
# 13 seconds to assemble the data cube for a 126Mb dataset...slow
theta_salt_ds = xr.open_mfdataset(
    Temp_2017,
    engine='pydap',
    parallel=True,
    combine='nested',
    concat_dim='time',
    session=edl_session
)
theta_salt_ds

CPU times: user 162 ms, sys: 8.55 ms, total: 171 ms
Wall time: 8.23 s

<xarray.Dataset> Size: 126MB
Dimensions:  (time: 3, k: 50, tile: 13, j: 90, i: 90)
Coordinates:
  * time     (time) datetime64[ns] 24B 2017-01-16T12:00:00 ... 2017-03-16T12:...
  * k        (k) int32 200B 0 1 2 3 4 5 6 7 8 9 ... 41 42 43 44 45 46 47 48 49
  * tile     (tile) int32 52B 0 1 2 3 4 5 6 7 8 9 10 11 12
  * j        (j) int32 360B 0 1 2 3 4 5 6 7 8 9 ... 81 82 83 84 85 86 87 88 89
  * i        (i) int32 360B 0 1 2 3 4 5 6 7 8 9 ... 81 82 83 84 85 86 87 88 89
Data variables:
    SALT     (time, k, tile, j, i) float32 63MB dask.array<chunksize=(1, 50, 13, 90, 90), meta=np.ndarray>
    THETA    (time, k, tile, j, i) float32 63MB dask.array<chunksize=(1, 50, 13, 90, 90), meta=np.ndarray>
Attributes: (12/62)
    acknowledgement:                 This research was carried out by the Jet...
    author:                          Ian Fenty and Ou Wang
    cdm_data_type:                   Grid
    comment:                         Fields provided on the curvilinear lat-l...
    Conventions:                     CF-1.8, ACDD-1.3
    coordinates_comment:             Note: the global 'coordinates' attribute...
    ...                              ...
    time_coverage_duration:          P1M
    time_coverage_end:               2017-02-01T00:00:00
    time_coverage_resolution:        P1M
    time_coverage_start:             2017-01-01T00:00:00
    title:                           ECCO Ocean Temperature and Salinity - Mo...
    uuid:                            f5b7028c-4181-11eb-b7e6-0cc47a3f47b1

print(f"Dataset size: {theta_salt_ds.nbytes/1e6:.2f} MB")

Dataset size: 126.36 MB

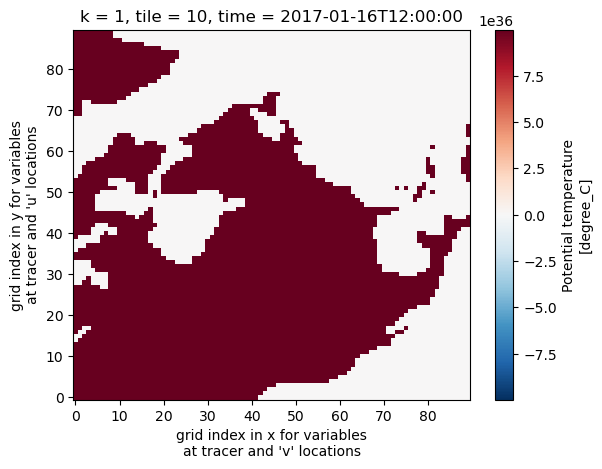

theta_salt_ds["THETA"].isel(time=0, tile=10, k=1).plot();

Conclusion

Working with NASA OPeNDAP servers using the earthaccess authenticated sessions, makes it easier to using xarray for single and multiple files.
