Get Bio-ARGO data

Author: Eli Holmes (NOAA)
Last updated: Jan 29, 2026

📘 Learning Objectives

Get Argo data using the argopy Python package

Learn the basic format of the data grouped into platform and cycles

Learn how to filter to just surface data

Learn how to get data in batches

Biogeochemical Argo (“Bio-Argo” or BGC-Argo) floats are autonomous profiling instruments that drift with ocean currents and periodically dive from the surface to depths of 1,000–2,000 meters, collecting a vertical profile of physical and biogeochemical properties. These floats are all over the world’s oceans and the data are freely available via the Argo global data assembly centers (GDACs) Video on the Argo system.

Each float has a unique PLATFORM_NUMBER, and every time it dives and returns to the surface it produces a new profile, identified by its CYCLE_NUMBER. A single float may produce hundreds of profiles over several years. Bio-Argo floats carry optical, chemical, and physical sensors that measure variables such as chlorophyll-a (CHLA), temperature (TEMP), salinity (PSAL), pressure (PRES, which is used as depth), dissolved oxygen (DOXY), and nitrate (NITRATE). These data are distributed in a consistent, profile-based format: each profile (platform+cycle) contains measurements at multiple depths, along with time, latitude, longitude, and quality-control flags. To use these data for surface-matching with satellite products, we will extract the shallow measurements from each profile (pressure is less than 20dbar or 10dbar).

We will use the argopy package to download Argo data from the Coriolis Argo Global Assembly Center. argopy documentation. We are going to work in “standard” user mode. This will do a lot of helpful QC for us (non-experts). In the Argo in R example, I walk through how one can get the full BGC-Argo data from ERDDAP and filter like argopy does. It is a bit involved and it is nice that Argo experts have done intelligent data selection for us to get to a more ‘science-ready’ set of data.

Workflow

Here is our basic workflow.

Use argopy to fetch data for Bio-Argo profiles in a given region and time
For each profile, save one point, the shallowest reading.
Process the globe in monthly chunks to not overload the ERDDAP server and save the monthly shallow points to a parquet file.

!pip install argopy cartopy

Requirement already satisfied: argopy in /srv/conda/envs/notebook/lib/python3.12/site-packages (1.4.0)
Requirement already satisfied: cartopy in /srv/conda/envs/notebook/lib/python3.12/site-packages (0.25.0)
Requirement already satisfied: xarray<=2025.9.0,>=2025.7 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from argopy) (2025.9.0)
Requirement already satisfied: scipy>=1.5 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from argopy) (1.16.3)
Requirement already satisfied: numpy in /srv/conda/envs/notebook/lib/python3.12/site-packages (from argopy) (2.3.5)
Requirement already satisfied: erddapy>=2.2.1 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from argopy) (2.3.0)
Requirement already satisfied: netCDF4>=1.5.3 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from argopy) (1.7.2)
Requirement already satisfied: h5netcdf>=1.4.0 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from argopy) (1.7.3)
Requirement already satisfied: fsspec>=2025.5.1 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from argopy) (2025.12.0)
Requirement already satisfied: toolz>=0.8.2 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from argopy) (1.1.0)
Requirement already satisfied: requests>=2.28 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from argopy) (2.32.5)
Requirement already satisfied: aiohttp<=3.12.15,>=3.7 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from argopy) (3.12.15)
Requirement already satisfied: decorator>=5.1 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from argopy) (5.2.1)
Requirement already satisfied: packaging>=20.4 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from argopy) (25.0)
Requirement already satisfied: aiohappyeyeballs>=2.5.0 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from aiohttp<=3.12.15,>=3.7->argopy) (2.6.1)
Requirement already satisfied: aiosignal>=1.4.0 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from aiohttp<=3.12.15,>=3.7->argopy) (1.4.0)
Requirement already satisfied: attrs>=17.3.0 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from aiohttp<=3.12.15,>=3.7->argopy) (25.4.0)
Requirement already satisfied: frozenlist>=1.1.1 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from aiohttp<=3.12.15,>=3.7->argopy) (1.7.0)
Requirement already satisfied: multidict<7.0,>=4.5 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from aiohttp<=3.12.15,>=3.7->argopy) (6.7.0)
Requirement already satisfied: propcache>=0.2.0 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from aiohttp<=3.12.15,>=3.7->argopy) (0.3.1)
Requirement already satisfied: yarl<2.0,>=1.17.0 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from aiohttp<=3.12.15,>=3.7->argopy) (1.22.0)
Requirement already satisfied: pandas>=2.2 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from xarray<=2025.9.0,>=2025.7->argopy) (2.3.3)
Requirement already satisfied: idna>=2.0 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from yarl<2.0,>=1.17.0->aiohttp<=3.12.15,>=3.7->argopy) (3.11)
Requirement already satisfied: matplotlib>=3.6 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from cartopy) (3.10.8)
Requirement already satisfied: shapely>=2.0 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from cartopy) (2.0.7)
Requirement already satisfied: pyshp>=2.3 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from cartopy) (3.0.3)
Requirement already satisfied: pyproj>=3.3.1 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from cartopy) (3.7.1)
Requirement already satisfied: typing-extensions>=4.2 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from aiosignal>=1.4.0->aiohttp<=3.12.15,>=3.7->argopy) (4.15.0)
Requirement already satisfied: httpx>=0.25.0 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from erddapy>=2.2.1->argopy) (0.28.1)
Requirement already satisfied: pytz in /srv/conda/envs/notebook/lib/python3.12/site-packages (from erddapy>=2.2.1->argopy) (2025.2)
Requirement already satisfied: python-dateutil>=2.8.2 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from pandas>=2.2->xarray<=2025.9.0,>=2025.7->argopy) (2.9.0.post0)
Requirement already satisfied: tzdata>=2022.7 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from pandas>=2.2->xarray<=2025.9.0,>=2025.7->argopy) (2025.3)
Requirement already satisfied: h5py in /srv/conda/envs/notebook/lib/python3.12/site-packages (from h5netcdf>=1.4.0->argopy) (3.13.0)
Requirement already satisfied: anyio in /srv/conda/envs/notebook/lib/python3.12/site-packages (from httpx>=0.25.0->erddapy>=2.2.1->argopy) (4.12.0)
Requirement already satisfied: certifi in /srv/conda/envs/notebook/lib/python3.12/site-packages (from httpx>=0.25.0->erddapy>=2.2.1->argopy) (2025.11.12)
Requirement already satisfied: httpcore==1.* in /srv/conda/envs/notebook/lib/python3.12/site-packages (from httpx>=0.25.0->erddapy>=2.2.1->argopy) (1.0.9)
Requirement already satisfied: h11>=0.16 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from httpcore==1.*->httpx>=0.25.0->erddapy>=2.2.1->argopy) (0.16.0)
Requirement already satisfied: contourpy>=1.0.1 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from matplotlib>=3.6->cartopy) (1.3.3)
Requirement already satisfied: cycler>=0.10 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from matplotlib>=3.6->cartopy) (0.12.1)
Requirement already satisfied: fonttools>=4.22.0 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from matplotlib>=3.6->cartopy) (4.61.1)
Requirement already satisfied: kiwisolver>=1.3.1 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from matplotlib>=3.6->cartopy) (1.4.9)
Requirement already satisfied: pillow>=8 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from matplotlib>=3.6->cartopy) (11.3.0)
Requirement already satisfied: pyparsing>=3 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from matplotlib>=3.6->cartopy) (3.3.1)
Requirement already satisfied: cftime in /srv/conda/envs/notebook/lib/python3.12/site-packages (from netCDF4>=1.5.3->argopy) (1.6.5)
Requirement already satisfied: six>=1.5 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from python-dateutil>=2.8.2->pandas>=2.2->xarray<=2025.9.0,>=2025.7->argopy) (1.17.0)
Requirement already satisfied: charset_normalizer<4,>=2 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from requests>=2.28->argopy) (3.4.4)
Requirement already satisfied: urllib3<3,>=1.21.1 in /srv/conda/envs/notebook/lib/python3.12/site-packages (from requests>=2.28->argopy) (2.5.0)

Step 1. Get some data

In this first step we’ll grab some in-situ data from Bio-Argo floats. We use argopy’s ArgoDataFetcher function to set up a datafetcher object with the information on what dataset (ds arg), where (src arg) and what parameters. We can access data by a specific buoy (platform), cycle (one descending/ascending cycle of a float), or by region (any data in that region, depth, time). We will use region. Once we set up our datafetcher object, we request the data using a method like to_xarray() or to_dataframe() to get the data and return in a specific form. We will use to_xarray() because the processing by buoy/cycle to get the shallowest points will be easier using xarray.

The code below requests only chlorophyll (CHLA) and pressure (PRES) for March 2024 in our chosen region and returns the result as an xarray Dataset that we can later save as a parquet file. src="erddap" says the data source is the Argo Global Data Assembly Centers (GDAC) data served via ERDDAP (by default https://erddap.ifremer.fr/erddap). We are querying this BGC-synthetic dataset.

# Start by looking at what variables are available in our region/time
region = [-70, -40, 20, 60, 0, 1000, "2024-03-01", "2024-04-01"]
fetcher = ArgoDataFetcher(
    ds="bgc",
    src="erddap",
).region(region)
print(fetcher)

WARNING:argopy.erddap.data:CDOM was requested but was removed from the fetcher because executed in 'standard' user mode

<datafetcher.erddap>
⭐ Name: Ifremer erddap Argo BGC data fetcher for a space/time region
🗺  Domain: [x=-70.00/-40.00; y=20.00/60.00; z=0.0/1000.0; t=2024-03-01/2024-04-01]
🔗 API: https://erddap.ifremer.fr/erddap
📗 Parameters: ['BBP700', 'CHLA', 'CP660', 'DOWNWELLING_PAR', 'DOWN_IRRADIANCE380', 'DOWN_IRRADIANCE412', 'DOWN_IRRADIANCE490', 'DOXY', 'NITRATE', 'PH_IN_SITU_TOTAL', 'PRES', 'PSAL', 'TEMP']
📕 BGC 'must be measured' parameters: []
🏊 User mode: standard
🟢 Dataset: bgc-s
🌥  Performances: cache=False, parallel=False

# now create a fetcher for some specific variables
from argopy import DataFetcher as ArgoDataFetcher
# specify the data set and what source
fetcher = ArgoDataFetcher(
    ds="bgc",
    src="erddap",
    params=["CHLA", "PRES"] # both these need to be present
)
# specify that we want to access data in a region; a NW Atlantic box
# lon_min, lon_max, lat_min, lat_max, depth_min, depth_max, time_min, time_max
region = [-70, -40, 20, 60, 0, 1000, "2024-03-01", "2024-04-01"]
fetcher = fetcher.region(region)
fetcher

<datafetcher.erddap>
⭐ Name: Ifremer erddap Argo BGC data fetcher for a space/time region
🗺  Domain: [x=-70.00/-40.00; y=20.00/60.00; z=0.0/1000.0; t=2024-03-01/2024-04-01]
🔗 API: https://erddap.ifremer.fr/erddap
📗 Parameters: ['CHLA', 'PRES', 'TEMP', 'PSAL']
📕 BGC 'must be measured' parameters: []
🏊 User mode: standard
🟢 Dataset: bgc-s
🌥  Performances: cache=False, parallel=False

# Get the data using the to_xarray() method
ds_na = fetcher.to_xarray()

/srv/conda/envs/notebook/lib/python3.12/site-packages/argopy/extensions/params_data_mode.py:117: FutureWarning: Note that the long name for institution is now in 'institution_name' while the 'institution' column will hold the institution code -- Deprecated since version 1.4
  df = idx.to_dataframe(completed=False)
/srv/conda/envs/notebook/lib/python3.12/site-packages/argopy/fetchers.py:795: FutureWarning: Note that the long name for institution is now in 'institution_name' while the 'institution' column will hold the institution code -- Deprecated since version 1.4
  df = idx.to_dataframe()

ds_na

# How many row in our dataframe?
df = ds_na.to_dataframe().reset_index()
df.shape[0]

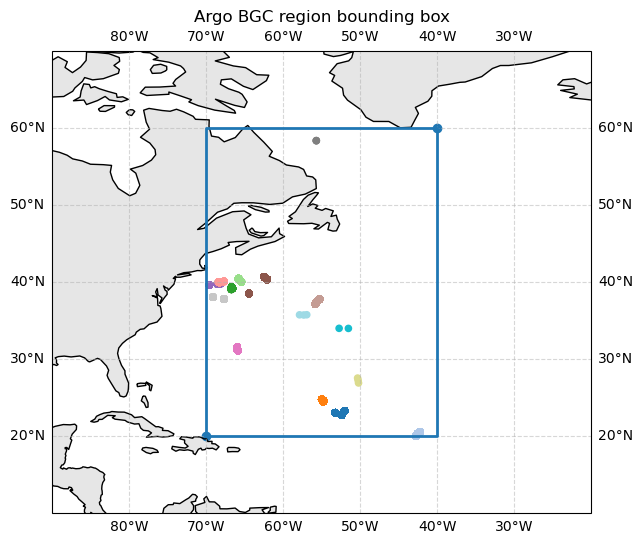

Plot the data

# plot the data; includes all buoys and all depths during each cycle
lon_min, lon_max, lat_min, lat_max = region[:4]
ds = ds_na

import matplotlib.pyplot as plt
import cartopy.crs as ccrs
import cartopy.feature as cfeature
import pandas as pd

# Corners of the box (closed loop)
lons = [lon_min, lon_max, lon_max, lon_min, lon_min]
lats = [lat_min, lat_min, lat_max, lat_max, lat_min]

proj = ccrs.PlateCarree()

fig = plt.figure(figsize=(8, 6))
ax = plt.axes(projection=proj)

# Show a bit more context than just the box
ax.set_extent([lon_min - 20, lon_max + 20, lat_min - 10, lat_max + 10], crs=proj)

# Add coastlines and land
ax.coastlines(resolution="110m")
ax.add_feature(cfeature.LAND, facecolor="0.9")
ax.add_feature(cfeature.OCEAN, facecolor="white")
ax.gridlines(draw_labels=True, linestyle="--", alpha=0.5)

# Plot the bounding box
ax.plot(lons, lats, transform=proj, linewidth=2)
ax.scatter([lon_min, lon_max], [lat_min, lat_max], transform=proj)

# Color the buoys different colors
codes = pd.Categorical(ds["PLATFORM_NUMBER"].values).codes

# Add the Argo points from ds
ax.scatter(
    ds["LONGITUDE"].values,
    ds["LATITUDE"].values,
    s=20,
    c=codes,
    cmap="tab20",   # good for discrete categories
    marker="o",
    transform=proj,
)

ax.set_title("Argo BGC region bounding box")

plt.show()

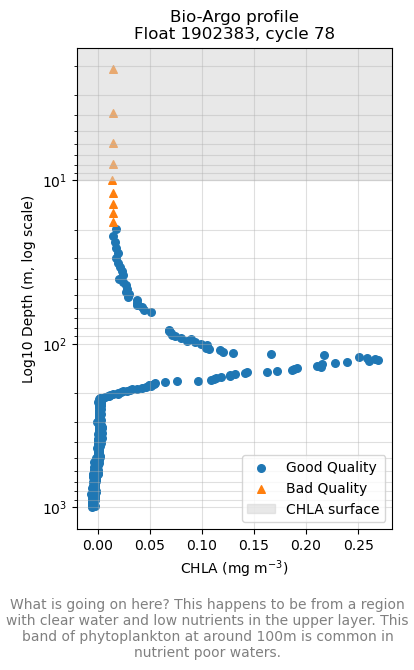

Profiles: a descending/ascending cycle

The data for each buoy are organized into cycles which is data collected on one descending/ascending cycle. Depending how the buoy is set up to record data, it might record only on the descending or ascending part of the cycle. The data that the ocean color satellites measure is just the surface. Even if there is high CHLA in deep water, the satellite does not “see” that. Thus we need to filter our cycle data from just the upper layer (< 20 m or so).

import numpy as np
import matplotlib.pyplot as plt

ds = ds_na  # just to keep the name short

# Unique platform numbers in the dataset
platforms = np.unique(ds["PLATFORM_NUMBER"].values)
plat = int(platforms[0])

# All cycles for that platform
cycles = ds["CYCLE_NUMBER"].where(ds["PLATFORM_NUMBER"] == plat, drop=True)
cycles = np.unique(cycles.values)
cyc = int(cycles[0])

# Select all points belonging to that profile
prof = ds.where(
    (ds["PLATFORM_NUMBER"] == plat) & (ds["CYCLE_NUMBER"] == cyc),
    drop=True
)

chl   = prof["CHLA"]
pres  = prof["PRES"]
qc = prof["CHLA_QC"]   # 'A' or 'D'

# Depth in meters ~ pressure in dbar
depth = pres
depth_plot = depth.clip(min=1)  # avoid 0 for log scale

# Masks for ascending/descending
good_mask =  qc.isin([1, 2])
bad_mask = ~good_mask

fig, ax = plt.subplots(figsize=(4, 6))

# Plot descending profile
ax.scatter(
    chl.where(good_mask),
    depth_plot.where(good_mask),
    label="Good Quality",
    s=30,
)

# Plot ascending profile
ax.scatter(
    chl.where(bad_mask),
    depth_plot.where(bad_mask),
    label="Bad Quality",
    s=30,
    marker="^",
)

# Add a shaded layer representing what is often designated as CHLA surface (e.g. 0–10 m)
z_sat = 10  # meters; adjust to taste for your explanation
ax.axhspan(0, z_sat, color="lightgrey", alpha=0.5,
           label="CHLA surface")

# Log scale on depth axis, surface at top
ax.set_yscale("log")
ax.invert_yaxis()

ax.set_xlabel("CHLA (mg m$^{-3}$)")
ax.set_ylabel("Log10 Depth (m, log scale)")
ax.set_title(f"Bio-Argo profile\nFloat {plat}, cycle {cyc}")
ax.grid(True, which="both", alpha=0.4)
ax.legend(loc="lower right")
plt.figtext(0.5, -0.1, "What is going on here? This happens to be from a region with clear water and low nutrients in the upper layer. This band of phytoplankton at around 100m is common in nutrient poor waters.",
            wrap=True, horizontalalignment='center', fontsize=10, color='gray')

# Adjust the bottom margin to make space for the annotation if necessary
#fig.subplots_adjust(bottom=0.25) # Increase bottom margin if annotation is cut off

plt.tight_layout()
plt.show()

Step 2 Compute point estimates

We will compute two point estimates from the profiles of CHLA: 1) the surface average from 0 to 10m and 2) binned averages from 0 to 200m in bins 10m wide. We will not be filtering based on CHLA_QC so as to not lose too much data.

Create functions to make these calculations from a profile

average_profile takes the depth (PRES) and variable (CHLA) and gets the average over a depth range.
summarize_profile_binned takes a filtered dataframe with just one profile (PLATFORM_NUMBER/CYCLE_NUMBER) and gives means for binned depths like 0 to 10m.

# average over a depth band
def average_profile(depth, var, z_min=0.0, z_max=None):
    """
    Average a var profile over a depth range.

    Parameters
    ----------
    depth : array-like
        1D array of depth or pressure (m or dbar ≈ m), increasing downward.
    var : array-like
        1D array of variable same shape as `depth`.
    z_min : float, optional
        Lower bound of depth (e.g. 0 for surface), in same units as depth.
    z_max : float or None, optional
        Upper bound of depth. If None, use max(depth).

    Returns
    -------
    Mean of var [z_min, z_max]. Returns np.nan if insufficient data.
    Number of data points in [z_min, z_max].
    """
    depth = np.asarray(depth, dtype=float)
    var   = np.asarray(var,   dtype=float)

    # Mask out NaNs
    m = np.isfinite(depth) & np.isfinite(var)
    depth = depth[m]
    var   = var[m]

    if depth.size < 1:
        return np.nan, 0

    # Set z_max if not provided
    if z_max is None:
        z_max = depth.max()

    # Subset to [z_min, z_max]
    sel = (depth > z_min) & (depth <= z_max)
    depth = depth[sel]
    var   = var[sel]

    if depth.size < 1:
        return np.nan, 0

    # Mean
    return np.mean(var), len(var)

# function to create our metrics for a platform/cycle group
import numpy as np
import pandas as pd

def summarize_profile_binned(group, var, depth_bins=None, include_meta=False):
    """
    Summarize a single Bio-Argo profile into depth-binned CHL means and one integrated bin.

    Parameters
    ----------
    group : dataframe
        dataframe with PRES, TIME, LATITUDE, LONGITUDE, var. Expected to be from
        filtering a Argo dataframe by PLATFORM_NUMBER and CYCLE_NUMBER
    var : str
        name of variable like `CHLA`.
    depth_bins : list, optional
        list of bins. Default is 0,10,...,200
    include_meta : Bool, optional
        whether to include TIME, LATITUDE, LONGITUDE in the returned dataframe

    Returns
    -------
    Returns pd.Series with one row with CHL in each depth bin + metadata (if include_meta=True)
    """
    depth_bins = np.arange(0, 210, 10)  # 0,10,...,200

    z = group["PRES"].values
    c = group[var].values

    out = {}

    if include_meta:# metadata
        out["TIME"]      = group["TIME"].iloc[0]
        out["LATITUDE"]  = group["LATITUDE"].iloc[0]
        out["LONGITUDE"] = group["LONGITUDE"].iloc[0]

    # depth-binned means
    for z0, z1 in zip(depth_bins[:-1], depth_bins[1:]):
        col1 = f"{var}_{int(z0)}_{int(z1)}"
        col2 = f"{var}_{int(z0)}_{int(z1)}_N"
        out[col1], out[col2] = average_profile(z, c, z_min=z0, z_max=z1)

    return pd.Series(out)

The summarize_profile_binned will return the depth binned averages for each profile.

# convert the xarray dataset from Argo to dataframe
df = ds_na.to_dataframe().reset_index()

# QC first if desired
df_qc = df[df["CHLA_QC"].isin([1, 2])]

# Get the binned averages and add on some metadata
df_points = (
    df_qc
    .groupby(["PLATFORM_NUMBER", "CYCLE_NUMBER"], as_index=False)
    .apply(summarize_profile_binned, var="CHLA", include_meta=True, include_groups=False)   # default 0–200m in 10m bins
    .reset_index(drop=True)
)

df_points.head()

	PLATFORM_NUMBER	CYCLE_NUMBER	TIME	LATITUDE	LONGITUDE	CHLA_0_10	CHLA_0_10_N	CHLA_10_20	CHLA_10_20_N	CHLA_20_30	...	CHLA_150_160	CHLA_150_160_N	CHLA_160_170	CHLA_160_170_N	CHLA_170_180	CHLA_170_180_N	CHLA_180_190	CHLA_180_190_N	CHLA_190_200	CHLA_190_200_N
0	1902383	78	2024-03-02 16:13:24.002000128	23.0209	-53.2220	NaN	0	0.017404	1	0.016929	...	0.129163	5	0.101144	5	0.054446	5	0.042098	5	0.024844	5
1	1902383	79	2024-03-12 15:19:00.002000128	22.7279	-52.3932	0.011863	1	0.013578	6	0.012971	...	0.126472	5	0.095604	5	0.058087	5	0.041782	5	0.025952	5
2	1902383	80	2024-03-22 15:28:33.002000128	23.2649	-52.0005	NaN	0	0.023577	5	0.015662	...	0.065052	5	0.057928	5	0.062677	5	0.045739	5	0.027851	5
3	1902384	79	2024-03-08 20:58:18.002000128	20.0154	-42.7101	0.027295	5	0.028305	5	0.029748	...	0.136242	5	0.112432	5	0.074770	5	0.042880	5	0.028594	5
4	1902384	80	2024-03-18 20:31:41.002000128	20.3018	-42.5525	0.016256	4	0.018060	5	0.019359	...	0.201177	5	0.124553	5	0.078233	5	0.050095	5	0.037541	5

5 rows × 45 columns

Summary

Now you can query the Bio-Argo ERDDAP server and get Argo profiles for any region and time frame. You can filter the data by quality and get averages for different depths.

Stop here is you just need to know how to get Bio-Argo data. In the next section, I show how I queried for the whole globe and assembled into monthly 10-20Mb netcdfs which I process into a 2Mb dataframe with rows for each profile (a single descend/ascend cycle for a buoy) with the binned CHLA averages. This dataframe is small enough to keep on GitHub with the tutorials. This has all profiles, CHLA data were not filtered by quality and CHLA for many depth bins, including surface, may be missing. You can load and plot this file as

# Load data from GitHub
import pandas as pd
url = (
    "https://raw.githubusercontent.com/"
    "fish-pace/fish-pace-datasets/main/"
    "datasets/chla_z/data/CHLA_argo_profiles.parquet"
)
df = pd.read_parquet(url)
print(f"\nNumber of profiles in the dataset {len(df)}\n")
df.head()


Number of profiles in the dataset 15833

	profile_id	PLATFORM_NUMBER	CYCLE_NUMBER	TIME	LATITUDE	LONGITUDE	CHLA_0_10	CHLA_0_10_N	CHLA_10_20	CHLA_10_20_N	...	CHLA_150_160	CHLA_150_160_N	CHLA_160_170	CHLA_160_170_N	CHLA_170_180	CHLA_170_180_N	CHLA_180_190	CHLA_180_190_N	CHLA_190_200	CHLA_190_200_N
0	1902304_0155	1902304	155	2024-03-01 21:23:16.002000128	54.6582	-19.2434	0.150386	4	0.158043	5	...	0.157366	5	0.158550	5	0.154490	5	0.153305	5	0.154151	5
1	1902304_0156	1902304	156	2024-03-11 20:45:53.002000128	54.9187	-18.9609	0.155674	4	0.156858	5	...	0.131986	5	0.135201	5	0.135539	5	0.136385	5	0.134524	5
2	1902304_0157	1902304	157	2024-03-21 21:21:39.002000128	55.2967	-18.8331	0.195647	4	0.202542	5	...	0.202204	5	0.200004	5	0.198820	5	0.194590	5	0.198651	5
3	1902304_0158	1902304	158	2024-03-31 21:31:53.002000128	55.7268	-18.8653	0.190783	4	0.193575	5	...	0.155336	5	0.153982	5	0.143492	5	0.135201	5	0.143830	5
4	1902380_0079	1902380	79	2024-03-07 18:01:17.002000128	17.6665	-46.0155	0.008062	4	0.009940	5	...	0.105501	5	0.066193	5	0.053091	5	0.043657	5	0.031253	5

5 rows × 46 columns

# plot the data
import matplotlib.pyplot as plt
import cartopy.crs as ccrs
import cartopy.feature as cfeature

proj = ccrs.PlateCarree()

fig = plt.figure(figsize=(8, 6))
ax = plt.axes(projection=proj)

# Add coastlines and land
ax.coastlines(resolution="110m")
ax.add_feature(cfeature.LAND, facecolor="0.9")
ax.add_feature(cfeature.OCEAN, facecolor="white")
ax.gridlines(draw_labels=True, linestyle="--", alpha=0.5)

df_clean = df.dropna(subset=["CHLA_0_10"])

# Add the Argo points from df
ax.scatter(
    df_clean["LONGITUDE"].values,
    df_clean["LATITUDE"].values,
    s=1,
    marker=".",
    transform=proj,
)

ax.set_title("Argo CHLA data")

plt.show()

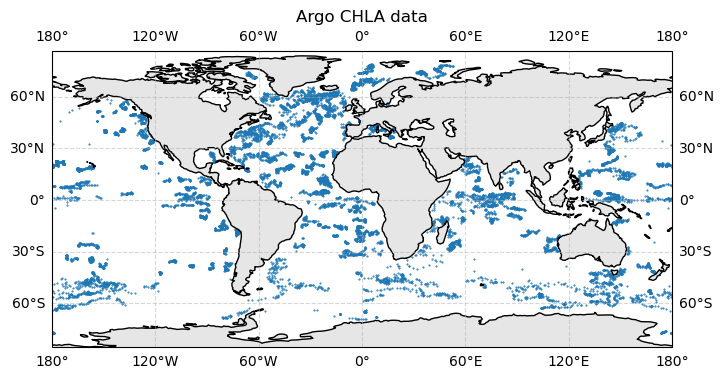

Each dot is a profile (descend/ascend cycle for one buoy). Some regions are better represented that others.

If you want to see how I assembled the global file, read below.

Process data from the whole globe

I will show 2 workflows. The first one gets Argo data and processes that into a dataframe with CHLA binned averages for each profile (descend/ascend cycle for a buoy). The dataframe has one row per Argo profile. Then these dataframes are assembled together into one parquet file for the whole globe. This problem with this is that if you change your mind regarding how to summarize the Argo data, then you have to query the Argo ERDDAP server again. If you are doing a lot of experimentation, then you keep hitting their server over and over (slow and excessive use of their server). So in the second workflow, I saved 10-20Mb netcdfs for all Bio-Argo data for a month and then worked with that as I experimented with how to summarize the profile data (measurements at each depth).

Workflow 1: Process into profile summaries directly

There are 3 steps, which take in total about 4 hours.

Get profile summaries for a region and month. To do this create the function get_bgc_profile(). This will fetch profile Bio-Argo data for a region and month and save as parquet. Returns dataframe with one row per profile (a descend/ascend cycle for a buoy) with the whole CHLA binned profile (averages for different depth bins). Uses our summarize_profile_binned() function from above.
A for loop to work through the whole globe and save the monthly parquet files. This is the step that takes 4 hrs.
Merge these files altogether into one file to put on GitHub.

A function to get one month `get_bgc_profile()`

Get a month for a region. Return a dataframe of the shallow points only. The function allows us to get multiple possible variables like CHLA, DOXY, NITRATE, BBP770, TEMP and PSAL. However if we pass in multiple variables then all must be present, so to maximize the data only pass in one varible at a time unless you need paired measurements.

# get_bgc_profile() function
from pathlib import Path

import numpy as np
import pandas as pd
from argopy import DataFetcher as ArgoDataFetcher


def get_bgc_profile(reg, mon, data_dir="data", vars=None, save=False):
    """
    Fetch profile Bio-Argo data for a region and month and (optionally) save as parquet.
    Returns dataframe with one row per profile (a descend/ascend cycle for a buoy)
    with the whole CHLA binned profile (averages for different depth bins).

    Parameters
    ----------
    reg : sequence
        [lon_min, lon_max, lat_min, lat_max, depth_min, depth_max]
        (same as argopy region, but without time bounds).
    mon : str or datetime-like
        Month to fetch, e.g. "2024-03" or "2024-03-01".
    data_dir : str, optional
        Directory where the parquet file will be saved.
    vars : list of str, optional
        Bio-Argo variables to fetch and surface-average (e.g. ["CHLA", "BBP700", "DOXY"]).
        Defaults to ["CHLA"].
    save : bool, optional
        If True, save a parquet file and return (df_surf, path).
        If False, just return (df_surf, None).

    Returns
    -------
    df_surf : pandas.DataFrame
        Near-surface samples (one row per profile) with requested variables.
    out_path : str or None
        Path to the saved parquet file, or None if save=False.
    """
    if vars is None:
        vars = ["CHLA"]  # default behaviour

    # Required base columns in the data from Bio-Argo
    base_cols = [
        "PLATFORM_NUMBER", "CYCLE_NUMBER",
        "TIME", "LATITUDE", "LONGITUDE", "PRES",
    ]

    # De-duplicate and drop any that are base columns (e.g. PRES)
    extra_vars_raw = list(dict.fromkeys(vars))
    extra_vars = [v for v in extra_vars_raw if v not in base_cols]

    def extra_cols(var):
        depth_bins = np.arange(0, 210, 10)  # 0,10,...,200
        cols = []
        for v in var:
            cols.append(f"{v}_INT_150")
            for z0, z1 in zip(depth_bins[:-1], depth_bins[1:]):
                cols.append(f"{v}_{int(z0)}_{int(z1)}")
        return cols
    # column names of the metrics, like CHLA_0_10
    var_metric_cols = extra_cols(extra_vars)

    # Columns that we need for processing the argo data
    argo_cols = base_cols + extra_vars
    # Final schema for the output DataFrame: base - PRES + colnames of points (like CHLA_INT_150)
    final_cols = base_cols + var_metric_cols
    final_cols.remove("PRES");

    lon_min, lon_max, lat_min, lat_max, z_min, z_max = reg

    # Compute start/end of the month
    mon_start = pd.to_datetime(mon).to_period("M").start_time
    mon_end = (mon_start + pd.offsets.MonthBegin(1))

    region = [
        lon_min, lon_max,
        lat_min, lat_max,
        z_min, z_max,
        mon_start.strftime("%Y-%m-%d"),
        mon_end.strftime("%Y-%m-%d"),
    ]

    # STEP 1: Get data for region + month
    # We always request PRES, plus user extras (not TEMP/PSAL unless user asked)
    param_vars = list(dict.fromkeys(extra_vars + ["PRES"]))

    fetcher = ArgoDataFetcher(
        ds="bgc",
        src="erddap",
        params=param_vars,
    )

    try:
        ds = fetcher.region(region).to_xarray()
    except Exception as exc:
        print(f"No data for region={reg}, month={mon}: {exc}")
        # Return empty frame with full schema
        return pd.DataFrame(columns=final_cols), None

    # Bail if argopy returned an empty ds
    if "N_POINTS" in ds.sizes and ds.sizes["N_POINTS"] == 0:
        print(f"No data rows (N_POINTS=0) for region={reg}, month={mon}")
        return pd.DataFrame(columns=final_cols), None

    # Also guard against “all dims zero”
    if all(size == 0 for size in ds.sizes.values()):
        print(f"No data rows (all dims zero) for region={reg}, month={mon}")
        return pd.DataFrame(columns=final_cols), None

    # STEP 2: Compute point metrics
    ds_vars = set(ds.data_vars) | set(ds.coords)

    # We only select columns that exist, but we *remember* full schema in argo_cols
    qc_cols = [f"{v}_QC" for v in extra_vars if f"{v}_QC" in ds_vars]
    available_cols = [c for c in argo_cols if c in ds_vars] + qc_cols
    available_cols = list(dict.fromkeys(available_cols))  # de-dup

    if not available_cols:
        print(f"No requested columns in dataset for region={reg}, month={mon}")
        return pd.DataFrame(columns=final_cols), None

    df_all = ds[available_cols].to_dataframe().reset_index(drop=True)

    if df_all.empty:
        print(f"No data rows for region={reg}, month={mon}")
        return pd.DataFrame(columns=final_cols), None

    # Ensure all required base columns are present before aggregating
    missing_base = [c for c in base_cols if c not in df_all.columns]
    if missing_base:
        raise ValueError(
            f"Missing required base columns {missing_base} in argo data "
            f"for region={reg}, month={mon}"
        )

    df_clean = df_all.copy()

    # STEP 2a: Base per-profile aggregation
    agg_dict = {
        "TIME": ("TIME", "first"),
        "LATITUDE": ("LATITUDE", "first"),
        "LONGITUDE": ("LONGITUDE", "first"),
    }

    df_points = (
        df_clean
        .groupby(["PLATFORM_NUMBER", "CYCLE_NUMBER"], as_index=False)
        .agg(**agg_dict)
    )

    # STEP 2b: per-variable metrics (using QC if available)
    for v in extra_vars:
        if v not in df_clean.columns:
            # We will add it later as NaN for schema consistency
            continue

        df_var = df_clean.copy()
        qc_col = f"{v}_QC"
        # If a QC column exists, filter by good values
        if qc_col in df_var.columns:
            df_var = df_var[df_var[qc_col].isin([1, 2])]

        if df_var.empty:
            # no good data for this variable; we'll add NaNs later
            continue

        df_points_var = (
            df_var
            .groupby(["PLATFORM_NUMBER", "CYCLE_NUMBER"], as_index=False)
            .apply(summarize_profile_binned, var=v, include_groups=False)   # default 0–200m in 10m bins
        )

        df_points = df_points.merge(
            df_points_var,
            on=["PLATFORM_NUMBER", "CYCLE_NUMBER"],
            how="left",
        )

    # STEP 2c: ensure all extras exist as columns (NaN if no data)
    for v in var_metric_cols :
        if v not in df_points.columns:
            df_points[v] = np.nan

    # Sanity check: all cols in final_cols must exist now
    missing_base_final = [c for c in final_cols if c not in df_points.columns]
    if missing_base_final:
        raise ValueError(
            f"After aggregation, missing base columns {missing_base_final} in df_points "
            f"for region={reg}, month={mon}"
        )

    # Reorder columns to match target schema exactly
    df_points = df_points.reindex(columns=final_cols)

    # STEP 3: Save to parquet in data/ dir (optional)
    data_path = Path(data_dir)
    data_path.mkdir(parents=True, exist_ok=True)

    out_fname = (
        f"argo_bgc_{lat_min}_{lat_max}_{lon_min}_{lon_max}_"
        f"{mon_start.strftime('%Y%m')}.parquet"
    )
    out_path = data_path / out_fname

    if save:
        df_points.to_parquet(out_path, index=False)
        return df_points, str(out_path)

    return df_points, None

%%time
# Example
params = ["CHLA"]
# [lon_min, lon_max, lat_min, lat_max, depth_min, depth_max]
region = [-55, -50, 20, 25, 0, 200]
month = "2024-03"
df_surf, _ = get_bgc_profile(region, month, vars=params)
df_surf.head()

CPU times: user 2.9 s, sys: 94.8 ms, total: 3 s
Wall time: 8.05 s

	PLATFORM_NUMBER	CYCLE_NUMBER	TIME	LATITUDE	LONGITUDE	CHLA_INT_150	CHLA_0_10	CHLA_10_20	CHLA_20_30	CHLA_30_40	...	CHLA_100_110	CHLA_110_120	CHLA_120_130	CHLA_130_140	CHLA_140_150	CHLA_150_160	CHLA_160_170	CHLA_170_180	CHLA_180_190	CHLA_190_200
0	1902383	78	2024-03-02 16:13:24.002000128	23.0209	-53.2220	0.085970	NaN	0.017404	0.016929	0.021678	...	0.107001	0.176812	0.258653	0.211954	0.170480	0.129163	0.101144	0.054446	0.042098	0.024844
1	1902383	79	2024-03-12 15:19:00.002000128	22.7279	-52.3932	0.109202	0.011863	0.013578	0.012971	0.017404	...	0.293004	0.237599	0.196283	0.168263	0.160982	0.126472	0.095604	0.058087	0.041782	0.025952
2	1902383	80	2024-03-22 15:28:33.002000128	23.2649	-52.0005	0.087394	NaN	0.023577	0.015662	0.018353	...	NaN	0.288097	0.201032	0.145627	0.105102	0.065052	0.057928	0.062677	0.045739	0.027851
3	1902385	78	2024-03-04 07:40:06.000999936	24.4592	-54.8044	0.075974	0.026190	0.026150	0.026465	0.025993	...	0.080926	0.139006	0.220854	0.195828	0.165449	0.120276	0.062982	0.037483	0.022845	0.010410
4	1902385	79	2024-03-14 09:51:52.000999936	24.5896	-54.7481	0.076172	NaN	NaN	NaN	0.023632	...	0.104378	0.171273	0.229354	0.190161	0.136803	0.106267	0.067389	0.045511	0.027724	0.013716

5 rows × 26 columns

df_surf.columns

Index(['PLATFORM_NUMBER', 'CYCLE_NUMBER', 'TIME', 'LATITUDE', 'LONGITUDE',
       'CHLA_INT_150', 'CHLA_0_10', 'CHLA_10_20', 'CHLA_20_30', 'CHLA_30_40',
       'CHLA_40_50', 'CHLA_50_60', 'CHLA_60_70', 'CHLA_70_80', 'CHLA_80_90',
       'CHLA_90_100', 'CHLA_100_110', 'CHLA_110_120', 'CHLA_120_130',
       'CHLA_130_140', 'CHLA_140_150', 'CHLA_150_160', 'CHLA_160_170',
       'CHLA_170_180', 'CHLA_180_190', 'CHLA_190_200'],
      dtype='object')

A for loop to work through the whole globe

Loop through the globe and save monthly files. We will do this for all months when there is PACE data. This will take about four hours but we only have to do it once. The %%script false is added to prevent accidentally run the cell.

%%script false --no-raise-error
# comment out the above to run; this just prevents inadvertant running
# since this loops through the whole globe
import os
from pathlib import Path
import numpy as np
import pandas as pd

# Variables to get if avail. NaN if missing
BGC_VARS = ["CHLA"]
out_dir = Path("_temp_data/chla_profile")
out_dir.mkdir(parents=True, exist_ok=True)

# Months from 2024-03 up to the current month
start_month = "2024-03"
end_month = pd.Timestamp.today().to_period("M")
months = pd.period_range(start_month, end_month, freq="M")

for mon in months:
    month_str = mon.strftime("%Y-%m")
    out_path = out_dir / f"argo_bgc_global_{month_str}.parquet"

    # Skip if we already have this month (so reruns don't redo everything)
    if out_path.exists():
        print(f"Skipping {month_str}, already have {out_path}")
        continue

    print(f"\n=== Processing month {month_str} ===")

    dfs = []  # collect all boxes for this month

    # Latitude: 45° bands from -90 to 90 -> 4 bands
    for lat_min in range(-90, 90, 45):
        lat_max = lat_min + 45

        # Longitude: 60° bands from -180 to 180 -> 6 bands
        for lon_min in range(-180, 180, 60):
            lon_max = lon_min + 60
            region = [lon_min, lon_max, lat_min, lat_max, 0, 200]
            #print(f" -- region={region}")
            df_box, _ = get_bgc_profile(region, month_str, vars=BGC_VARS, save=False)
            if df_box is None or df_box.empty: continue
            dfs.append(df_box)

    # Desired column order (core metadata + all BGC vars)
    cols = [
        'profile_id', 'PLATFORM_NUMBER', 'CYCLE_NUMBER',
        'TIME', 'LATITUDE', 'LONGITUDE',
       'CHLA_0_10', 'CHLA_10_20', 'CHLA_20_30', 'CHLA_30_40',
       'CHLA_40_50', 'CHLA_50_60', 'CHLA_60_70', 'CHLA_70_80', 'CHLA_80_90',
       'CHLA_90_100', 'CHLA_100_110', 'CHLA_110_120', 'CHLA_120_130',
       'CHLA_130_140', 'CHLA_140_150', 'CHLA_150_160', 'CHLA_160_170',
       'CHLA_170_180', 'CHLA_180_190', 'CHLA_190_200',
    ]

    if not dfs:
        print(f"No data at all for month {month_str}, writing empty file")
        df_month = pd.DataFrame(columns=cols)
    else:
        df_month = pd.concat(dfs, ignore_index=True)

        # Make sure all expected columns exist; if missing, add as NaN
        # Create a stable profile_id: e.g. "6901234_0042"
        if "profile_id" not in df_month.columns:
            df_month["profile_id"] = (
                df_month["PLATFORM_NUMBER"].astype(int).astype(str).str.zfill(7)
                + "_"
                + df_month["CYCLE_NUMBER"].astype(int).astype(str).str.zfill(4)
            )

        for c in cols:
            if c not in df_month.columns:
                df_month[c] = np.nan

        # Now safely reorder columns
        df_month = df_month[cols]

    # Save one file per month
    df_month.to_parquet(out_path, index=False)
    print(f"Saved {len(df_month)} rows for {month_str} to {out_path}")

Merge all monthly files together into one parquet

%%script false --no-raise-error
# requires above to have run
# example of one monthly file
from pathlib import Path
import numpy as np
import pandas as pd

var_dir = Path("_temp_data/chla_profile")
# these are monthly files
files = sorted(var_dir.glob("argo_bgc_global_*.parquet"))
df = pd.read_parquet(files[0])
df.head()

# function to process the monthly files
from pathlib import Path
import numpy as np
import pandas as pd

def merge_bgc_monthlies(var_dir, out_path):
    """
    Merge monthly Bio-Argo parquet files for a single variable (e.g., CHLA or BBP700).

    Parameters
    ----------
    var_dir : str or Path
        Directory containing monthly parquet files like 'argo_bgc_global_YYYY-MM.parquet'.
    out_path : str or Path
        Output parquet path for the merged dataset.
    """
    var_dir = Path(var_dir)
    files = sorted(var_dir.glob("argo_bgc_global_*.parquet"))

    if not files:
        raise FileNotFoundError(f"No parquet files found in {var_dir}")

    dfs = []
    for f in files:
        print(f"Reading {f}")
        df = pd.read_parquet(f)
        dfs.append(df)

    # Concatenate all months
    df_all = pd.concat(dfs, ignore_index=True)

    # Save merged parquet
    out_path = Path(out_path)
    out_path.parent.mkdir(parents=True, exist_ok=True)
    df_all.to_parquet(out_path, index=False)
    print(f"Saved merged dataset with {len(df_all)} rows to {out_path}")

%%script false --no-raise-error
# requires above to have run
# %%script to prevent accidentally rerunning this code
outfile = "_temp_data/argo_bgc_global_profile_CHLA.parquet"
merge_bgc_monthlies("_temp_data/chla_profile", outfile)

Once you have the data file on your computer, you load as below.

%%script false --no-raise-error
# Example. Requires above to have run
# Load from local file
from pathlib import Path
import numpy as np
import pandas as pd

file = "_temp_data/argo_bgc_global_profile_CHLA.parquet"
df = pd.read_parquet(file)

Workflow 2: Save full Argo data queries first

This is what I actually did after discovering that I kept changing my mind about how to summarize the profile data; bin averages? only surface? how to define surface? how much QC to do? integrate by depth? etc, etc.

There are 3 steps, which take in total about 4 hours.

Using a for loop, save region/month files from a Argo query using get_bgc_file() for the whole globe. These files are small but I wanted to save since the ERDDAP server or my network would sometimes hang.
Merge these region/month files into monthly files and delete the region/month files since I won’t need them anymore. I will keep the monthly files.
Get profile summaries for a region and month. To do this create the function get_bgc_profile(). This will fetch profile Bio-Argo data for a region and month and save as parquet. Returns dataframe with one row per profile (a descend/ascend cycle for a buoy) with the whole CHLA binned profile (averages for different depth bins). Uses our summarize_profile_binned() function from above.
A for loop to work through the whole globe and save the monthly parquet files. This is the step that takes 4 hrs.
Merge these files altogether into one file to put on GitHub.

Save query file as netcdf `get_bgc_file()`

# get_bgc_surface() function
from pathlib import Path

import numpy as np
import pandas as pd
from argopy import DataFetcher as ArgoDataFetcher

def get_bgc_file(reg, mon, data_dir="data", vars=None, save=False):
    """
    Fetch profile Bio-Argo dataset.
    """
    if vars is None:
        vars = ["CHLA"]  # default behaviour

    # Required base columns in the data from Bio-Argo
    base_cols = [
        "PLATFORM_NUMBER", "CYCLE_NUMBER",
        "TIME", "LATITUDE", "LONGITUDE", "PRES",
    ]

    # De-duplicate and drop any that are base columns (e.g. PRES)
    extra_vars_raw = list(dict.fromkeys(vars))
    extra_vars = [v for v in extra_vars_raw if v not in base_cols]

    lon_min, lon_max, lat_min, lat_max, z_min, z_max = reg

    # Compute start/end of the month
    mon_start = pd.to_datetime(mon).to_period("M").start_time
    mon_end = (mon_start + pd.offsets.MonthBegin(1))

    region = [
        lon_min, lon_max,
        lat_min, lat_max,
        z_min, z_max,
        mon_start.strftime("%Y-%m-%d"),
        mon_end.strftime("%Y-%m-%d"),
    ]

    # STEP 1: Get data for region + month
    # We always request PRES, plus user extras (not TEMP/PSAL unless user asked)
    param_vars = list(dict.fromkeys(extra_vars + ["PRES"]))

    fetcher = ArgoDataFetcher(
        ds="bgc",
        src="erddap",
        params=param_vars,
    )

    try:
        ds = fetcher.region(region).to_xarray()
    except Exception as exc:
        print(f"No data for region={reg}, month={mon}: {exc}")
        # Return empty frame with full schema
        return None

    # Bail if argopy returned an empty ds
    if "N_POINTS" in ds.sizes and ds.sizes["N_POINTS"] == 0:
        print(f"No data rows (N_POINTS=0) for region={reg}, month={mon}")
        return None

    # Also guard against “all dims zero”
    if all(size == 0 for size in ds.sizes.values()):
        print(f"No data rows (all dims zero) for region={reg}, month={mon}")
        return None

    return ds

For loop to get files for each month

Break the globe up into regions and get file for each region/month.

%%script false --no-raise-error
# Save the raw files so I don't need to keep hitting the erddap server
import os
from pathlib import Path
import numpy as np
import pandas as pd

# Variables to get if avail. NaN if missing
BGC_VARS = ["CHLA"]
out_dir = Path("_temp_data/raw")
out_dir.mkdir(parents=True, exist_ok=True)

# Months from 2024-03 up to the current month
start_month = "2024-03"
end_month = pd.Timestamp.today().to_period("M")
months = pd.period_range(start_month, end_month, freq="M")

for mon in months:
    month_str = mon.strftime("%Y-%m")

    print(f"\n=== Processing month {month_str} ===")

    dfs = []  # collect all boxes for this month

    # Latitude: 45° bands from -90 to 90 -> 4 bands
    for lat_min in range(-90, 90, 45):
        lat_max = lat_min + 45

        # Longitude: 60° bands from -180 to 180 -> 6 bands
        for lon_min in range(-180, 180, 60):
            lon_max = lon_min + 60
            region = [lon_min, lon_max, lat_min, lat_max, 0, 200]
            print(f" -- region={region}")
            ds_box = get_bgc_file(region, month_str, vars=BGC_VARS, save=False)
            if ds_box is None: continue
            out_path = out_dir / f"argo_bgc_global_{month_str}_{lon_min}_{lon_max}_{lat_min}_{lat_max}.parquet"
            # Skip if we already have this month (so reruns don't redo everything)
            if out_path.exists():
                print(f"Skipping {month_str}, already have {out_path}")
                continue

            ds_box.to_netcdf(out_path)

Merge the region/month files into one month file

%%script false --no-raise-error
# Merge into monthly files for GitHub

from pathlib import Path
import pandas as pd
import xarray as xr

raw_dir = Path("_temp_data/raw")          # where the tile .nc files live
out_dir = Path("_temp_data/CHLA_argo_monthly_nc")   # where you want monthly merged .nc
out_dir.mkdir(parents=True, exist_ok=True)

# derive months from existing files
months = sorted({
    f.name.split("_")[3]           # "2024-03" from "argo_bgc_global_2024-03_..."
    for f in raw_dir.glob("argo_bgc_global_*.nc")
})

for month_str in months:
    out_path = out_dir / f"argo_bgc_global_{month_str}.nc"
    if out_path.exists():
        print(f"Skipping {month_str}, already have {out_path}")
        continue

    month_files = sorted(raw_dir.glob(f"argo_bgc_global_{month_str}_*.nc"))
    if not month_files:
        print(f"No tiles found for {month_str}, skipping")
        continue

    print(f"\n=== Merging {len(month_files)} tiles for {month_str} ===")

    # Peek at first file to find the "point" dimension (usually N_POINTS)
    with xr.open_dataset(month_files[0]) as ds0:
        # Prefer N_POINTS if present, otherwise just take the first non-time dim
        if "N_POINTS" in ds0.dims:
            point_dim = "N_POINTS"
        else:
            # fall back: pick first dimension that's not time
            non_time_dims = [d for d in ds0.dims if d.lower() != "time"]
            if not non_time_dims:
                raise ValueError(f"Could not figure out point dim for {month_files[0]}")
            point_dim = non_time_dims[0]

    # Open & concatenate all tiles along the point dimension
    ds_month = xr.open_mfdataset(
        month_files,
        combine="nested",
        concat_dim=point_dim,
        parallel=False,
    )

    # (Optional) sort by time then index if you like
    if "TIME" in ds_month:
        ds_month = ds_month.sortby("TIME")

    ds_month.to_netcdf(out_path)
    ds_month.close()

    print(f"  -> Saved merged monthly file to {out_path}")

# test
import xarray as xr
ds = xr.open_dataset("_temp_data/CHLA_argo_monthly_nc/argo_bgc_global_2024-12.nc")
ds

Create an index file with just the profile meta data

We will use this for doing matchups so we don’t have to load more data than needed, e.g. all the profile data.

%%script false --no-raise-error
from pathlib import Path
import xarray as xr
import pandas as pd

var_dir = Path("_temp_data/CHLA_argo_monthly_nc")
files = sorted(var_dir.glob("argo_bgc_global_*.nc"))

profile_rows = []

for f in files:
    print(f"Reading {f}")
    ds = xr.open_dataset(f)

    # Select only the columns we need for the profile index
    needed = ["PLATFORM_NUMBER", "CYCLE_NUMBER", "TIME", "LATITUDE", "LONGITUDE", "CHLA_QC", "PRES"]
    missing = [v for v in needed if v not in ds.variables and v not in ds.coords]
    if missing:
        raise ValueError(f"{f} missing required vars: {missing}")

    df = (
        ds[needed]
        .to_dataframe()
        .reset_index(drop=True)
    )

    # Drop any rows without platform/cycle info
    df = df.dropna(subset=["PLATFORM_NUMBER", "CYCLE_NUMBER"])

    # Collapse to ONE row per (PLATFORM_NUMBER, CYCLE_NUMBER).
    # We just keep:
    #   - TIME: first
    #   - LAT/LON: first (typically constant within profile)
    df_profiles = (
        df
        .sort_values("TIME")  # just to make "first" deterministic
        .groupby(["PLATFORM_NUMBER", "CYCLE_NUMBER"], as_index=False)
        .agg({
            "TIME": "first",
            "LATITUDE": "first",
            "LONGITUDE": "first",
        })
    )

    profile_rows.append(df_profiles)

# Combine all months
profiles = pd.concat(profile_rows, ignore_index=True)

# If there is overlap between months, enforce uniqueness
profiles = (
    profiles
    .sort_values("TIME")
    .drop_duplicates(subset=["PLATFORM_NUMBER", "CYCLE_NUMBER"], keep="first")
    .reset_index(drop=True)
)

# Create a stable profile_id: e.g. "6901234_0042"
profiles["profile_id"] = (
    profiles["PLATFORM_NUMBER"].astype(int).astype(str).str.zfill(7)
    + "_"
    + profiles["CYCLE_NUMBER"].astype(int).astype(str).str.zfill(4)
)

# Reorder columns: profile_id first, then metadata
profiles = profiles[
    ["profile_id", "PLATFORM_NUMBER", "CYCLE_NUMBER", "TIME",
     "LATITUDE", "LONGITUDE"]
]

print(len(profiles), "unique profiles")
print(profiles.columns)

# Save for later joins
out_path = var_dir / "argo_profiles_index.parquet"
profiles.to_parquet(out_path, index=False)
print("Wrote", out_path)

Process the monthly files

Now that I have the data locally, we can easily create different metrics. Specifically, I will create the profile dataframe with CHLA binned depth averages for each profile. To do this, I run through all the months and create a list with dataframes from each month. Then I concatenate that into one dataframe with all the months. This is the final dataframe for GitHub. It is about 2.2Mb.

# Example of doing this for one month file
import xarray as xr
ds = xr.open_dataset("_temp_data/CHLA_argo_monthly_nc/argo_bgc_global_2025-07.nc")

df = ds.to_dataframe().reset_index()

# QC first
#df_qc = df[df["CHLA_QC"].isin([1, 2])]

df_points = (
    df
    .groupby(["PLATFORM_NUMBER", "CYCLE_NUMBER"], as_index=False)
    .apply(summarize_profile_binned, var="CHLA", include_meta=True, include_groups=False)   # default 0–200m in 10m bins
    .reset_index(drop=True)
)
df_points.shape

# Run through all the months and create a list with dataframes from each month
from pathlib import Path
import xarray as xr

var_dir = Path("_temp_data/CHLA_argo_monthly_nc")
files = sorted(var_dir.glob("argo_bgc_global_*.nc"))

profile_rows = []

for f in files:
    print(f"Reading {f}")
    ds = xr.open_dataset(f)
    df = ds.to_dataframe().reset_index()

    df_profiles = (
        df
        .groupby(["PLATFORM_NUMBER", "CYCLE_NUMBER"], as_index=False)
        .apply(summarize_profile_binned, var="CHLA", include_meta=True, include_groups=False)   # default 0–200m in 10m bins
        .reset_index(drop=True)
    )
    profile_rows.append(df_profiles)

Reading data/argo_monthly_nc/argo_bgc_global_2024-03.nc
Reading data/argo_monthly_nc/argo_bgc_global_2024-04.nc
Reading data/argo_monthly_nc/argo_bgc_global_2024-05.nc
Reading data/argo_monthly_nc/argo_bgc_global_2024-06.nc
Reading data/argo_monthly_nc/argo_bgc_global_2024-07.nc
Reading data/argo_monthly_nc/argo_bgc_global_2024-08.nc
Reading data/argo_monthly_nc/argo_bgc_global_2024-09.nc
Reading data/argo_monthly_nc/argo_bgc_global_2024-10.nc
Reading data/argo_monthly_nc/argo_bgc_global_2024-11.nc
Reading data/argo_monthly_nc/argo_bgc_global_2024-12.nc
Reading data/argo_monthly_nc/argo_bgc_global_2025-01.nc
Reading data/argo_monthly_nc/argo_bgc_global_2025-02.nc
Reading data/argo_monthly_nc/argo_bgc_global_2025-03.nc
Reading data/argo_monthly_nc/argo_bgc_global_2025-04.nc
Reading data/argo_monthly_nc/argo_bgc_global_2025-05.nc
Reading data/argo_monthly_nc/argo_bgc_global_2025-06.nc
Reading data/argo_monthly_nc/argo_bgc_global_2025-07.nc
Reading data/argo_monthly_nc/argo_bgc_global_2025-08.nc
Reading data/argo_monthly_nc/argo_bgc_global_2025-09.nc
Reading data/argo_monthly_nc/argo_bgc_global_2025-10.nc
Reading data/argo_monthly_nc/argo_bgc_global_2025-11.nc

# Merge the list of dataframes
profiles = pd.concat(profile_rows, ignore_index=True)
# Create a stable profile_id: e.g. "6901234_0042"
profiles["profile_id"] = (
    profiles["PLATFORM_NUMBER"].astype(int).astype(str).str.zfill(7)
    + "_"
    + profiles["CYCLE_NUMBER"].astype(int).astype(str).str.zfill(4)
)
# move profile_id to the start instead of the end
col = "profile_id"
profiles = profiles[[col] + [c for c in profiles.columns if c != col]]

Save the final version with metadata

Use pyarrow package to add metadata. Adding thorough metadata when we are all done helps us know exactly how this parquet file was created.

import pyarrow as pa
import pyarrow.parquet as pq
from datetime import datetime

df = profiles

table = pa.Table.from_pandas(df)

file_meta = {
    "title": "Global Bio-Argo CHLA profile metrics (0 to 200 m, 10 m bins)",
    "creator": "Eli Holmes / NOAA https://orcid.org/0000-0001-9128-8393",
    "created": datetime.utcnow().isoformat() + "Z",
    "source": "BGC-Argo (via argopy). Argo (2000). Argo float data and metadata from Global Data Assembly Centre (Argo GDAC). SEANOE. https://doi.org/10.17882/42182",
    "description": (
        "All BGC-Argo data Mar 2024 to Nov 2025 with CHLA variable was downloaded."
        " Per-profile depth-binned CHLA means (0–200 m by 10 m bins) computed for each depth bin."
        " No QC filtering on the values was done using the CHLA_QC variable."
        " All profiles kept even if some binned averages were missing."
    ),
    "profile_id_definition": "profile_id = PLATFORM_NUMBER (7 digits) + '_' + CYCLE_NUMBER (4 digits)",
    "PLATFORM_NUMBER_definition": "PLATFORM_NUMBER from BGC-Argo identifying the buoy.",
    "CYCLE_NUMBER_definition": "CYCLE_NUMBER from BGC-Argo identifying the ascent/descent cycle.",
    "TIME_definition": "TIME in UTC from BGC-Argo. One time is assigned to each ascent/descent cycle.",
    "LATITUDE_definition": "LATITUDE from BGC-Argo. One is assigned to each ascent/descent cycle.",
    "LONGITUDE_definition": "LONGITUDE from BGC-Argo. One is assigned to each ascent/descent cycle.",
    "CHLA_A_B_definition": (
        "Depth binned averages of CHLA. Computed as the average of all individual CHLA measurements within the pressure interval "
        "(PRES>=A and PRES<B), where PRES is dbar and signifies depth."
        "No QC done on the CHLA data before averaging."
    ),
    "CHLA_A_B_N_definition": (
        "Number of individual CHLA measurements within the pressure interval "
        "(PRES>=A and PRES<B) filter used to compute the depth-binned mean."
    ),
    "variable_LATITUDE_standard_name": "latitude",
    "variable_LATITUDE_units": "degrees_north",
    "variable_LONGITUDE_standard_name": "longitude",
    "variable_LONGITUDE_units": "degrees_east",
    "variable_TIME_standard_name": "time",
    "variable_TIME_units": "UTC",
    "variable_CHLA_A_B_standard_name": "mass_concentration_of_chlorophyll_a_in_sea_water",
    "variable_CHLA_A_B_units": "mg m-3",
    "variable_CHLA_A_B_N_long_name": "count of raw CHLA measurements in each depth bin",
    "variable_CHLA_A_B_N_units": "1",
    "CHLA_processing_description": (
        "CHLA values were taken directly from the BGC-Argo variable 'CHLA' "
        "(mg m-3). No additional sensor corrections or non-photochemical "
        "quenching adjustments were applied. CHLA_QC values were not used to "
        "filter measurements. CHLA measurements were aggregated into 10 m "
        "pressure bins between 0 and 200 dbar using arithmetic means."
    ),
    "CHLA_measurement_description": (
        "BGC-Argo chlorophyll-a (CHLA) is measured using a submersible "
        "chlorophyll fluorometer mounted on the float. The sensor emits blue light "
        "(~470 nm) and detects the resulting chlorophyll fluorescence near ~695 nm. "
        "Fluorescence intensity is converted onboard to chlorophyll-a concentration "
        "using factory calibration coefficients and reported in mg m-3 as the raw "
        "'CHLA' variable. Additional processing recommended by the BGC-Argo community "
        "(e.g., non-photochemical quenching correction, dark-count correction, and "
        "delayed-mode quality-control adjustments) was not applied; this dataset uses "
        "the unadjusted CHLA values provided in the core BGC-Argo data stream."
    ) ,
    "spatiotemporal_coverage_time_start": "2024-03-01T00:00:00Z",
    "spatiotemporal_coverage_time_end": "2025-11-30T23:59:59Z",
    "spatiotemporal_coverage_lat_min": "-90.0",
    "spatiotemporal_coverage_lat_max": "90.0",
    "spatiotemporal_coverage_lon_min": "-180.0",
    "spatiotemporal_coverage_lon_max": "180.0",
    "license": "Open access (Argo Data Policy); unrestricted use with attribution."
}
table = table.replace_schema_metadata(file_meta)

out_path = "data/CHLA_argo_profiles.parquet"
pq.write_table(table, out_path)

# Display metadata using pyarrow
import pyarrow.parquet as pq
out_path = "data/CHLA_argo_profiles.parquet"
t = pq.read_table(out_path)
t.schema.metadata

{b'title': b'Global Bio-Argo CHLA profile metrics (0 to 200 m, 10 m bins)',
 b'creator': b'Eli Holmes / NOAA https://orcid.org/0000-0001-9128-8393',
 b'created': b'2025-12-03T19:59:11.896859Z',
 b'source': b'BGC-Argo (via argopy). Argo (2000). Argo float data and metadata from Global Data Assembly Centre (Argo GDAC). SEANOE. https://doi.org/10.17882/42182',
 b'description': b'All BGC-Argo data Mar 2024 to Nov 2025 with CHLA variable was downloaded. Per-profile depth-binned CHLA means (0\xe2\x80\x93200 m by 10 m bins) computed for each depth bin. No QC filtering on the values was done using the CHLA_QC variable. All profiles kept even if some binned averages were missing.',
 b'profile_id_definition': b"profile_id = PLATFORM_NUMBER (7 digits) + '_' + CYCLE_NUMBER (4 digits)",
 b'PLATFORM_NUMBER_definition': b'PLATFORM_NUMBER from BGC-Argo identifying the buoy.',
 b'CYCLE_NUMBER_definition': b'CYCLE_NUMBER from BGC-Argo identifying the ascent/descent cycle.',
 b'TIME_definition': b'TIME in UTC from BGC-Argo. One time is assigned to each ascent/descent cycle.',
 b'LATITUDE_definition': b'LATITUDE from BGC-Argo. One is assigned to each ascent/descent cycle.',
 b'LONGITUDE_definition': b'LONGITUDE from BGC-Argo. One is assigned to each ascent/descent cycle.',
 b'CHLA_A_B_definition': b'Depth binned averages of CHLA. Computed as the average of all individual CHLA measurements within the pressure interval (PRES>=A and PRES<B), where PRES is dbar and signifies depth.No QC done on the CHLA data before averaging.',
 b'CHLA_A_B_N_definition': b'Number of individual CHLA measurements within the pressure interval (PRES>=A and PRES<B) filter used to compute the depth-binned mean.',
 b'variable_LATITUDE_standard_name': b'latitude',
 b'variable_LATITUDE_units': b'degrees_north',
 b'variable_LONGITUDE_standard_name': b'longitude',
 b'variable_LONGITUDE_units': b'degrees_east',
 b'variable_TIME_standard_name': b'time',
 b'variable_TIME_units': b'UTC',
 b'variable_CHLA_A_B_standard_name': b'mass_concentration_of_chlorophyll_a_in_sea_water',
 b'variable_CHLA_A_B_units': b'mg m-3',
 b'variable_CHLA_A_B_N_long_name': b'count of raw CHLA measurements in each depth bin',
 b'variable_CHLA_A_B_N_units': b'1',
 b'CHLA_processing_description': b"CHLA values were taken directly from the BGC-Argo variable 'CHLA' (mg m-3). No additional sensor corrections or non-photochemical quenching adjustments were applied. CHLA_QC values were not used to filter measurements. CHLA measurements were aggregated into 10 m pressure bins between 0 and 200 dbar using arithmetic means.",
 b'CHLA_measurement_description': b"BGC-Argo chlorophyll-a (CHLA) is measured using a submersible chlorophyll fluorometer mounted on the float. The sensor emits blue light (~470 nm) and detects the resulting chlorophyll fluorescence near ~695 nm. Fluorescence intensity is converted onboard to chlorophyll-a concentration using factory calibration coefficients and reported in mg m-3 as the raw 'CHLA' variable. Additional processing recommended by the BGC-Argo community (e.g., non-photochemical quenching correction, dark-count correction, and delayed-mode quality-control adjustments) was not applied; this dataset uses the unadjusted CHLA values provided in the core BGC-Argo data stream.",
 b'spatiotemporal_coverage_time_start': b'2024-03-01T00:00:00Z',
 b'spatiotemporal_coverage_time_end': b'2025-11-30T23:59:59Z',
 b'spatiotemporal_coverage_lat_min': b'-90.0',
 b'spatiotemporal_coverage_lat_max': b'90.0',
 b'spatiotemporal_coverage_lon_min': b'-180.0',
 b'spatiotemporal_coverage_lon_max': b'180.0',
 b'license': b'Open access (Argo Data Policy); unrestricted use with attribution.'}

Update our STAC json file

A README.md should always be included so you know basically what your data are without having to open them up and look at the metadata. A STAC json file is a standard machine readable README for spatiotemporal datasets. We will create that and create a human readable README from that. This is a little extra work but if we get into the habit of creating nice clean datasets with good metadata, it gets easier to do this and makes it much easier for others to reuse our work.

# --- Custom python functions ---
import os, importlib
# Looks to see if you have the file already and if not, downloads from GitHub
if not os.path.exists("ml_utils.py"):
    !wget -q https://raw.githubusercontent.com/fish-pace/2025-tutorials/main/ml_utils.py

import ml_utils as mu
importlib.reload(mu)

<module 'ml_utils' from '/home/jovyan/2025-tutorials/ml_utils.py'>

# Create or update the STAC entry

collection_path = "data/tutorial_data_collection.json"

collection = mu.load_or_create_collection(collection_path)

chla_item_id = "global-bio-argo-chla-profile-metrics-0-200m-10m-bins"
chla_file_name = "CHLA_argo_profiles.parquet"
chla_href = f"https://raw.githubusercontent.com/fish-pace/2025-tutorials/main/data/{chla_file_name}"
notebook_href = "https://github.com/fish-pace/2025-tutorials/blob/main/argopy.ipynb"

collection = mu.add_or_update_item(
    collection,
    item_id=chla_item_id,
    asset_href=chla_href,
    title="Global Bio-Argo CHLA profile metrics (0–200 m, 10 m bins)",
    description=(
        "Per-profile CHLA metrics from all global BGC-Argo floats from Mar 2024 to Nov 2025, depth-binned from 0–200 m "
        "in 10 m bins using unadjusted CHLA values."
    ),
    start_datetime="2024-03-01T00:00:00Z",
    end_datetime="2025-11-30T23:59:59Z",
    extra_properties={
        "license": "Open access (Argo Data Policy); unrestricted use with attribution.",
        "variable": "CHLA",
        "platform": "BGC-Argo",
        "tutorial_notebook": notebook_href,
        "file_name": chla_file_name
    }
)

mu.save_collection(collection, collection_path)

mu.stac_to_readme(
    "data/tutorial_data_collection.json",
    readme_path="data/README.md",
    repo_raw_base="https://raw.githubusercontent.com/fish-pace/2025-tutorials/main"
)

README.md written to data/README.md

Summary

Now we have the final dataframe that is on GitHub. If I want to experiment with other summaries of the Argo data, I have the raw data stored as monthly netcdfs.

# Load data from GitHub
import pandas as pd
url = "https://raw.githubusercontent.com/fish-pace/2025-tutorials/main/data/CHLA_argo_profiles.parquet"
df = pd.read_parquet(url)
df.head()

	profile_id	PLATFORM_NUMBER	CYCLE_NUMBER	TIME	LATITUDE	LONGITUDE	CHLA_0_10	CHLA_0_10_N	CHLA_10_20	CHLA_10_20_N	...	CHLA_150_160	CHLA_150_160_N	CHLA_160_170	CHLA_160_170_N	CHLA_170_180	CHLA_170_180_N	CHLA_180_190	CHLA_180_190_N	CHLA_190_200	CHLA_190_200_N
0	1902304_0155	1902304	155	2024-03-01 21:23:16.002000128	54.6582	-19.2434	0.150386	4	0.158043	5	...	0.157366	5	0.158550	5	0.154490	5	0.153305	5	0.154151	5
1	1902304_0156	1902304	156	2024-03-11 20:45:53.002000128	54.9187	-18.9609	0.155674	4	0.156858	5	...	0.131986	5	0.135201	5	0.135539	5	0.136385	5	0.134524	5
2	1902304_0157	1902304	157	2024-03-21 21:21:39.002000128	55.2967	-18.8331	0.195647	4	0.202542	5	...	0.202204	5	0.200004	5	0.198820	5	0.194590	5	0.198651	5
3	1902304_0158	1902304	158	2024-03-31 21:31:53.002000128	55.7268	-18.8653	0.190783	4	0.193575	5	...	0.155336	5	0.153982	5	0.143492	5	0.135201	5	0.143830	5
4	1902380_0079	1902380	79	2024-03-07 18:01:17.002000128	17.6665	-46.0155	0.008062	4	0.009940	5	...	0.105501	5	0.066193	5	0.053091	5	0.043657	5	0.031253	5

5 rows × 46 columns

# Get metadata using pyarrow
import fsspec
import pyarrow.parquet as pq

url = "https://raw.githubusercontent.com/fish-pace/2025-tutorials/main/data/CHLA_argo_profiles.parquet"
with fsspec.open(url, "rb") as f:
    t = pq.read_table(f)
t.schema.metadata

{b'title': b'Global Bio-Argo CHLA profile metrics (0 to 200 m, 10 m bins)',
 b'creator': b'Eli Holmes / NOAA https://orcid.org/0000-0001-9128-8393',
 b'created': b'2025-12-03T19:59:11.896859Z',
 b'source': b'BGC-Argo (via argopy). Argo (2000). Argo float data and metadata from Global Data Assembly Centre (Argo GDAC). SEANOE. https://doi.org/10.17882/42182',
 b'description': b'All BGC-Argo data Mar 2024 to Nov 2025 with CHLA variable was downloaded. Per-profile depth-binned CHLA means (0\xe2\x80\x93200 m by 10 m bins) computed for each depth bin. No QC filtering on the values was done using the CHLA_QC variable. All profiles kept even if some binned averages were missing.',
 b'profile_id_definition': b"profile_id = PLATFORM_NUMBER (7 digits) + '_' + CYCLE_NUMBER (4 digits)",
 b'PLATFORM_NUMBER_definition': b'PLATFORM_NUMBER from BGC-Argo identifying the buoy.',
 b'CYCLE_NUMBER_definition': b'CYCLE_NUMBER from BGC-Argo identifying the ascent/descent cycle.',
 b'TIME_definition': b'TIME in UTC from BGC-Argo. One time is assigned to each ascent/descent cycle.',
 b'LATITUDE_definition': b'LATITUDE from BGC-Argo. One is assigned to each ascent/descent cycle.',
 b'LONGITUDE_definition': b'LONGITUDE from BGC-Argo. One is assigned to each ascent/descent cycle.',
 b'CHLA_A_B_definition': b'Depth binned averages of CHLA. Computed as the average of all individual CHLA measurements within the pressure interval (PRES>=A and PRES<B), where PRES is dbar and signifies depth.No QC done on the CHLA data before averaging.',
 b'CHLA_A_B_N_definition': b'Number of individual CHLA measurements within the pressure interval (PRES>=A and PRES<B) filter used to compute the depth-binned mean.',
 b'variable_LATITUDE_standard_name': b'latitude',
 b'variable_LATITUDE_units': b'degrees_north',
 b'variable_LONGITUDE_standard_name': b'longitude',
 b'variable_LONGITUDE_units': b'degrees_east',
 b'variable_TIME_standard_name': b'time',
 b'variable_TIME_units': b'UTC',
 b'variable_CHLA_A_B_standard_name': b'mass_concentration_of_chlorophyll_a_in_sea_water',
 b'variable_CHLA_A_B_units': b'mg m-3',
 b'variable_CHLA_A_B_N_long_name': b'count of raw CHLA measurements in each depth bin',
 b'variable_CHLA_A_B_N_units': b'1',
 b'CHLA_processing_description': b"CHLA values were taken directly from the BGC-Argo variable 'CHLA' (mg m-3). No additional sensor corrections or non-photochemical quenching adjustments were applied. CHLA_QC values were not used to filter measurements. CHLA measurements were aggregated into 10 m pressure bins between 0 and 200 dbar using arithmetic means.",
 b'CHLA_measurement_description': b"BGC-Argo chlorophyll-a (CHLA) is measured using a submersible chlorophyll fluorometer mounted on the float. The sensor emits blue light (~470 nm) and detects the resulting chlorophyll fluorescence near ~695 nm. Fluorescence intensity is converted onboard to chlorophyll-a concentration using factory calibration coefficients and reported in mg m-3 as the raw 'CHLA' variable. Additional processing recommended by the BGC-Argo community (e.g., non-photochemical quenching correction, dark-count correction, and delayed-mode quality-control adjustments) was not applied; this dataset uses the unadjusted CHLA values provided in the core BGC-Argo data stream.",
 b'spatiotemporal_coverage_time_start': b'2024-03-01T00:00:00Z',
 b'spatiotemporal_coverage_time_end': b'2025-11-30T23:59:59Z',
 b'spatiotemporal_coverage_lat_min': b'-90.0',
 b'spatiotemporal_coverage_lat_max': b'90.0',
 b'spatiotemporal_coverage_lon_min': b'-180.0',
 b'spatiotemporal_coverage_lon_max': b'180.0',
 b'license': b'Open access (Argo Data Policy); unrestricted use with attribution.'}

Workflow

Step 1. Get some data

Plot the data

Profiles: a descending/ascending cycle

Step 2 Compute point estimates

Create functions to make these calculations from a profile

Summary

Process data from the whole globe

Workflow 1: Process into profile summaries directly

A function to get one month get_bgc_profile()

A for loop to work through the whole globe

Merge all monthly files together into one parquet

Workflow 2: Save full Argo data queries first

Save query file as netcdf get_bgc_file()

For loop to get files for each month

Merge the region/month files into one month file

Create an index file with just the profile meta data

Process the monthly files

Save the final version with metadata

Update our STAC json file

Summary

A function to get one month `get_bgc_profile()`

Save query file as netcdf `get_bgc_file()`
