Simple Machine-Learning: CNN, UNet and Boosted Regression

Author: Eli Holmes (NOAA)
Last updated: March 20, 2026

📘 Learning Objectives

1. Understand the basics of prediction
2. Learn the format that your data should be in
3. Learn to fit a CNN and Boosted Regression Tree
4. Evaluate fit
5. Make predictions with your model

Important notes for this tutorial

Data must be able to be loaded into memory

This notebook creates the training data as NumPy arrays. The data needs to be able to be loaded fully into memory. We will discuss working with larger than memory data in the advanced tutorials.

Run this with GPU

This notebook is slow with CPU. You can run in Colab if you don’t have GPU access. Click the “Open in Colab” button above. To get GPU in Colab, go to Edit > Notebook Settings and select GPU. Then uncomment the !pip line below to install the needed libraries. For the JupyterHub, you might not have the option to select GPU.

This notebook requires tensorflow

Colab has tensorflow installed by default. For the JupyterHub, you need to select an image with tensorflow. We used the image quay.io/pangeo/ml-notebook:2025.05.22 for running the notebook.

The functions are in a separate file

The Python functions for doing tasks, like prepping the data and plotting, are in a separate file ml_utils.py and the functions are imported with import ml_utils as mu. You will need to run the import code to have access to the functions.

Summary

In this tutorial we will predict a variable (chl) using predictor variables, in this case SST, salinity, and season.

\[ \hat{y} \sim f(sst, so, season, location) \]

We will compare two classic machine-learning algorithms for prediction: 2-dimensional convolutional neural networks and boosted regression trees.

Intro to CNNs

How are they similar?

Both are non-linear: they can learn complicated non-linear relationships like “very high CHL only occurs when SST is low and it’s winter and we are above a certain latitude threshold.” Both can handle complex interactions between variables (SST × salinity × season × location). Both are strong baseline methods for prediction tasks like ours.

How are they different?

• Input shape: Boosted regression trees see individuals pixels. They ignore the neighboring pixels, unless we add them as extra predictor variables. 2D CNNs look at a small area around each pixel. They use the neighborhood to detect patterns like lines, blobs, and gradients.

• What they learn: Trees learn a big collection of if-else rules that split the response variable space. CNNs learn spatial filters (little square spatial weightings) that slide over the map to detect shapes and textures (e.g. sharp gradients).

• Spatial awareness: Trees have no built-in spatial structure; “location” is just another number. CNNs are explicitly designed for using spatial structure and patterns for the prediction.

• Interpretability: Trees (especially boosted trees with feature importance / partial dependence) are usually easier to interpret. CNNs are more of a black box; they can capture richer patterns but are harder to “read”.

Overview of the modeling steps

1. Load data
2. Prepare training, test, and validation data. Normalize the training data and deal with NAs in the data.
3. Set up model
4. Fit model
5. Make predictions

Variables in the model

Feature	Spatial Variation	Temporal Variation	Notes
sst, so	✅ Varies by lat/lon	✅ Varies by time	Numeric, normalize
sin_time, cos_time	❌ Same across lat/lon	✅ Varies by time	Cyclical, do not normalize
x_geo,y_geo, z_geo	✅ Varies by lat/lon	❌ Static	-1 to 1, do not normalize
ocean_mask	✅ Varies by lat/lon	❌ Static	Binary (0=land, 1=ocean), do not normalize
cloud_mask	✅ Varies by lat/lon	✅ Varies by time	Binary (0=land, 1=ocean), do not normalize
y (log CHL)	✅ Varies by lat/lon	✅ Varies by time	Numeric, maybe normalize

• sst and so: These are our core predictor variables. We normalize these to mean 0 and s.d. of 1 so they are on the same scale.

• sin_time and cos_time: These introduce seasonality into our model. The models can learn seasonally dependent patterns, e.g., chlorophyll blooms in spring. The sin_time and cos_time features use cyclical encoding (sine/cosine). Normalizing these features (e.g., to mean 0, std 1) would distort their circular geometry and defeat their intended purpose.

• x_geo, y_geo, and z_geo: This is a dimensionless geometric encoding of location on the globe that is -1 to 1. This works better than lat/lon for machine-learning tasks. Including these location variables allows the model to learn location specific relationships.

• ocean_mask, cloud_mask: This tells the model which pixels are land (0) vs ocean (1) and cloud (0) versus valid (1). For the CNN, the mask is used in a custom loss function which helps avoid learning patterns over invalid/land/cloud areas. The ocean mask is also used as a predictor variable to help it learn the effect of coastlines.

• y (response): The model trains on this. For our model it is logged CHL and it is roughly centered near 0. We need to evaluate whether our response has areas with much much higher variance than other areas. If so, we need to do some spatial normalization so our model doesn’t only learn the high variance areas.

Note, neither bathymetry nor distance from coast improved the model by any appreciable amount over the model we use here. SST (upwelling signal) and salinity (river outflow signal) are highly correlated with chlorophyll in this region with strong seasonal patterns. Including the ocean mask and location in the fitting allows it to learn the coastal patterns.

Dealing with NaNs

In our application, NaNs in y (in our case CHL) appear over land and when obscured by clouds. NaNs in our predictor variables are less common, but can happen. Algorithms for boosted regression trees can filter out any pixels that have NaNs in the response and predictor variables so we just have to make sure that missing values, or areas to ignore like land are coded as NaN. But for CNNs dealing with NaNs is harder because the models do not allow any NaNs in the response or predictor variables. For y, the problem comes when the training algorithm calculates the training (and validation) loss. Those NaNs in y will lead to NaN in y - y_pred, the loss returns NaN and training immediately breaks down. We therefore use a custom masked loss function that multiplies the error by an ocean/valid-pixel mask and normalizes by the number of valid pixels, effectively excluding land/cloudy pixels from the loss and validation metrics.

NaNs/Infs in the predictor variables will prevent the model from creating a prediction at all. Therefore NaNs (or Infs) in our predictor variables must be replaced or imputed. In this notebook, we replace these with the pixel median from the pixels that are not missing. In order to guard against training on too much imputed data, days with more than 5% missing pixels in the predictor variables are removed.

Modifying the notebook to model your own data

You will need the following:

• Data: an xarray Dataset with your response variable and predictor variables.
• num_var: the variables which will be normalized
• cat_var: the variables which will be left as is
• mask: The model will not be trained on the data under the mask
• response variable (y) should have NaNs for missing values. Do not replace missing values with anything.
• functions: in ml_utils.py

Variables can be 2D (not time-varying) or 3D (time-varying). They can be numerical (will be normalized) or categorical (will not be normalized). Note, categorical can be numerical. Difference is what will be normalized and what will not.

Load the libraries

• core data handling and plotting libraries
• tensorflow libraries
• our custom functions in ml_utils.py

# Uncomment this line and run if you are in Colab; leave in the !. That is part of the cmd
# !pip install zarr gcsfs --quiet

# --- Core data handling and plotting libraries ---
import xarray as xr       # for working with labeled multi-dimensional arrays
import numpy as np        # for numerical operations on arrays
import matplotlib.pyplot as plt  # for creating plots

# --- TensorFlow libraries ---
import os
os.environ['TF_CPP_MIN_LOG_LEVEL'] = '3'  # suppress TensorFlow log spam (0=all, 3=only errors)

import tensorflow as tf  # main deep learning framework

# --- Keras (part of TensorFlow): building and training neural networks ---
from keras.models import Sequential          # lets us stack layers in a simple linear model
from keras.layers import Conv2D              # 2D convolution layer — finds spatial patterns in image-like data
from keras.layers import BatchNormalization  # stabilizes and speeds up training by normalizing activations
from keras.layers import Dropout             # randomly "drops" neurons during training to reduce overfitting
from keras.callbacks import EarlyStopping    # stops training early if validation loss doesn't improve

# --- Custom python functions ---
# this requires that tensorflow and keras are available
import os, importlib
# Looks to see if you have the file already and if not, downloads from GitHub
if not os.path.exists("ml_utils.py"):
    !wget -q https://raw.githubusercontent.com/fish-pace/2025-tutorials/main/ml_utils.py

import ml_utils as mu
importlib.reload(mu)

<module 'ml_utils' from '/home/jovyan/2025-tutorials/ml_utils.py'>

Prepare the Indian Ocean Dataset

This is a dataset for the Indian Ocean with a variety of variables, including chlorophyll which will will try to predict using SST, salinity, location and season. The data are in Google Object Storage as a chunked Zarr file. It has files that are chunks of 100 days of data. When we go to get data we will get these files. How we load our data will determine if our xarray dataset “knows” about the chunks and this will make a big difference to speed and memory usage. xarray.open_dataset will not know the chunking while xarray.open_zarr will.

We need our lat/lon number of pixels to be even

This is a requirement for the U-Net model we will fit.

# Load the Indian Ocean Dataset
# Note use open_zarr instead of open_dataset to preserve the chunking
data_full = xr.open_zarr(
    "gcs://nmfs_odp_nwfsc/CB/mind_the_chl_gap/IO.zarr",
    storage_options={"token": "anon"},
    consolidated=True
)
# slice to a smaller lat/lon segment
data_full = data_full.sel(lat=slice(35, -5), lon=slice(45,90))

# Make lat/lon lengths even for our simple U-Net model
if data_full.sizes["lat"] % 2 == 1: data_full = data_full.isel(lat=slice(0, -1))   # drop last lat
if data_full.sizes["lon"] % 2 == 1: data_full = data_full.isel(lon=slice(0, -1))   # drop last lon

# subset out predictors, response and land mask
pred_var = ["sst", "so"]
resp_var = "CHL_cmes-gapfree"
land_mask = "CHL_cmes-land"
dataset = data_full[pred_var + [resp_var, land_mask]]
dataset = dataset.rename({resp_var: "y", land_mask: "land_mask"})

# IMPORTANT! log our response so it is symmetric (Normal-ish)
dataset["y"] = np.log(dataset["y"])

# remove years with no response (y), sst or salinity data; these will be all NaN
vars_to_check = ["y", "so", "sst"]
drop = dataset[vars_to_check].to_array().isnull().all(["lat", "lon"]).any("variable")
dataset = dataset.sel(time=~drop)

# Make ocean mask
# Mark where SST (sea surface temperature) is always missing; these are likely lakes
dataset["land_mask"] = dataset["land_mask"] == 0 # make ocean 1 instead of land
invalid_ocean = np.isnan(dataset["sst"]).all(dim="time")
dataset["land_mask"] = dataset["land_mask"].where(~invalid_ocean, other=False)
dataset = dataset.rename({"land_mask": "ocean_mask"})

# Add location and seasonality variables
dataset = mu.add_spherical_coords(dataset)  # add lat/lon variables to dataset
dataset = mu.add_seasonal_time_features(dataset)

# fix chunking to be consistent
dataset = dataset.chunk({'time': 100, 'lat': -1, 'lon': -1})

dataset

<xarray.Dataset> Size: 5GB
Dimensions:     (time: 8475, lat: 148, lon: 180)
Coordinates:
  * lat         (lat) float32 592B 32.0 31.75 31.5 31.25 ... -4.25 -4.5 -4.75
  * lon         (lon) float32 720B 45.0 45.25 45.5 45.75 ... 89.25 89.5 89.75
  * time        (time) datetime64[ns] 68kB 1997-10-01 1997-10-02 ... 2020-12-31
Data variables:
    sst         (time, lat, lon) float32 903MB dask.array<chunksize=(100, 148, 180), meta=np.ndarray>
    so          (time, lat, lon) float32 903MB dask.array<chunksize=(100, 148, 180), meta=np.ndarray>
    y           (time, lat, lon) float32 903MB dask.array<chunksize=(100, 148, 180), meta=np.ndarray>
    ocean_mask  (lat, lon) bool 27kB dask.array<chunksize=(148, 180), meta=np.ndarray>
    x_geo       (lat, lon) float32 107kB dask.array<chunksize=(148, 180), meta=np.ndarray>
    y_geo       (lat, lon) float32 107kB dask.array<chunksize=(148, 180), meta=np.ndarray>
    z_geo       (lat, lon) float32 107kB dask.array<chunksize=(148, 180), meta=np.ndarray>
    sin_time    (time, lat, lon) float32 903MB dask.array<chunksize=(100, 148, 180), meta=np.ndarray>
    cos_time    (time, lat, lon) float32 903MB dask.array<chunksize=(100, 148, 180), meta=np.ndarray>
Attributes: (12/92)
    Conventions:                     CF-1.8, ACDD-1.3
    DPM_reference:                   GC-UD-ACRI-PUG
    IODD_reference:                  GC-UD-ACRI-PUG
    acknowledgement:                 The Licensees will ensure that original ...
    citation:                        The Licensees will ensure that original ...
    cmems_product_id:                OCEANCOLOUR_GLO_BGC_L3_MY_009_103
    ...                              ...
    time_coverage_end:               2024-04-18T02:58:23Z
    time_coverage_resolution:        P1D
    time_coverage_start:             2024-04-16T21:12:05Z
    title:                           cmems_obs-oc_glo_bgc-plankton_my_l3-mult...
    westernmost_longitude:           -180.0
    westernmost_valid_longitude:     -180.0

xarray.Dataset

• Dimensions:
  • time: 8475
  • lat: 148
  • lon: 180
• Coordinates: (3)
  • lat
    (lat)
    float32
    32.0 31.75 31.5 ... -4.5 -4.75

    long_name :

    latitude

    standard_name :

    latitude

    units :

    degrees_north

    array([32.  , 31.75, 31.5 , 31.25, 31.  , 30.75, 30.5 , 30.25, 30.  , 29.75,
           29.5 , 29.25, 29.  , 28.75, 28.5 , 28.25, 28.  , 27.75, 27.5 , 27.25,
           27.  , 26.75, 26.5 , 26.25, 26.  , 25.75, 25.5 , 25.25, 25.  , 24.75,
           24.5 , 24.25, 24.  , 23.75, 23.5 , 23.25, 23.  , 22.75, 22.5 , 22.25,
           22.  , 21.75, 21.5 , 21.25, 21.  , 20.75, 20.5 , 20.25, 20.  , 19.75,
           19.5 , 19.25, 19.  , 18.75, 18.5 , 18.25, 18.  , 17.75, 17.5 , 17.25,
           17.  , 16.75, 16.5 , 16.25, 16.  , 15.75, 15.5 , 15.25, 15.  , 14.75,
           14.5 , 14.25, 14.  , 13.75, 13.5 , 13.25, 13.  , 12.75, 12.5 , 12.25,
           12.  , 11.75, 11.5 , 11.25, 11.  , 10.75, 10.5 , 10.25, 10.  ,  9.75,
            9.5 ,  9.25,  9.  ,  8.75,  8.5 ,  8.25,  8.  ,  7.75,  7.5 ,  7.25,
            7.  ,  6.75,  6.5 ,  6.25,  6.  ,  5.75,  5.5 ,  5.25,  5.  ,  4.75,
            4.5 ,  4.25,  4.  ,  3.75,  3.5 ,  3.25,  3.  ,  2.75,  2.5 ,  2.25,
            2.  ,  1.75,  1.5 ,  1.25,  1.  ,  0.75,  0.5 ,  0.25,  0.  , -0.25,
           -0.5 , -0.75, -1.  , -1.25, -1.5 , -1.75, -2.  , -2.25, -2.5 , -2.75,
           -3.  , -3.25, -3.5 , -3.75, -4.  , -4.25, -4.5 , -4.75], dtype=float32)

  • lon
    (lon)
    float32
    45.0 45.25 45.5 ... 89.5 89.75

    long_name :

    longitude

    standard_name :

    longitude

    units :

    degrees_east

    array([45.  , 45.25, 45.5 , 45.75, 46.  , 46.25, 46.5 , 46.75, 47.  , 47.25,
           47.5 , 47.75, 48.  , 48.25, 48.5 , 48.75, 49.  , 49.25, 49.5 , 49.75,
           50.  , 50.25, 50.5 , 50.75, 51.  , 51.25, 51.5 , 51.75, 52.  , 52.25,
           52.5 , 52.75, 53.  , 53.25, 53.5 , 53.75, 54.  , 54.25, 54.5 , 54.75,
           55.  , 55.25, 55.5 , 55.75, 56.  , 56.25, 56.5 , 56.75, 57.  , 57.25,
           57.5 , 57.75, 58.  , 58.25, 58.5 , 58.75, 59.  , 59.25, 59.5 , 59.75,
           60.  , 60.25, 60.5 , 60.75, 61.  , 61.25, 61.5 , 61.75, 62.  , 62.25,
           62.5 , 62.75, 63.  , 63.25, 63.5 , 63.75, 64.  , 64.25, 64.5 , 64.75,
           65.  , 65.25, 65.5 , 65.75, 66.  , 66.25, 66.5 , 66.75, 67.  , 67.25,
           67.5 , 67.75, 68.  , 68.25, 68.5 , 68.75, 69.  , 69.25, 69.5 , 69.75,
           70.  , 70.25, 70.5 , 70.75, 71.  , 71.25, 71.5 , 71.75, 72.  , 72.25,
           72.5 , 72.75, 73.  , 73.25, 73.5 , 73.75, 74.  , 74.25, 74.5 , 74.75,
           75.  , 75.25, 75.5 , 75.75, 76.  , 76.25, 76.5 , 76.75, 77.  , 77.25,
           77.5 , 77.75, 78.  , 78.25, 78.5 , 78.75, 79.  , 79.25, 79.5 , 79.75,
           80.  , 80.25, 80.5 , 80.75, 81.  , 81.25, 81.5 , 81.75, 82.  , 82.25,
           82.5 , 82.75, 83.  , 83.25, 83.5 , 83.75, 84.  , 84.25, 84.5 , 84.75,
           85.  , 85.25, 85.5 , 85.75, 86.  , 86.25, 86.5 , 86.75, 87.  , 87.25,
           87.5 , 87.75, 88.  , 88.25, 88.5 , 88.75, 89.  , 89.25, 89.5 , 89.75],
          dtype=float32)

  • time
    (time)
    datetime64[ns]
    1997-10-01 ... 2020-12-31

    axis :

    T

    comment :

    Data is averaged over the day

    long_name :

    time centered on the day

    standard_name :

    time

    array(['1997-10-01T00:00:00.000000000', '1997-10-02T00:00:00.000000000',
           '1997-10-03T00:00:00.000000000', ..., '2020-12-29T00:00:00.000000000',
           '2020-12-30T00:00:00.000000000', '2020-12-31T00:00:00.000000000'],
          dtype='datetime64[ns]')

• Data variables: (9)
  • sst
    (time, lat, lon)
    float32
    dask.array<chunksize=(100, 148, 180), meta=np.ndarray>

    long_name :

    Sea surface temperature

    nameCDM :

    Sea_surface_temperature_surface

    nameECMWF :

    Sea surface temperature

    product_type :

    analysis

    shortNameECMWF :

    sst

    standard_name :

    sea_surface_temperature

    units :

    K

    Array Chunk Bytes 861.26 MiB 10.16 MiB Shape (8475, 148, 180) (100, 148, 180) Dask graph 85 chunks in 7 graph layers Data type float32 numpy.ndarray

  • so
    (time, lat, lon)
    float32
    dask.array<chunksize=(100, 148, 180), meta=np.ndarray>

    _ChunkSizes :

    [1, 7, 341, 720]

    cell_methods :

    area: mean

    long_name :

    mean sea water salinity at 0.49 metres below ocean surface

    standard_name :

    sea_water_salinity

    unit_long :

    Practical Salinity Unit

    units :

    1e-3

    valid_max :

    28336

    valid_min :

    1

    Array Chunk Bytes 861.26 MiB 10.16 MiB Shape (8475, 148, 180) (100, 148, 180) Dask graph 85 chunks in 7 graph layers Data type float32 numpy.ndarray

  • y
    (time, lat, lon)
    float32
    dask.array<chunksize=(100, 148, 180), meta=np.ndarray>

    Conventions :

    CF-1.8, ACDD-1.3

    DPM_reference :

    GC-UD-ACRI-PUG

    IODD_reference :

    GC-UD-ACRI-PUG

    acknowledgement :

    The Licensees will ensure that original CMEMS products - or value added products or derivative works developed from CMEMS Products including publications and pictures - shall credit CMEMS by explicitly making mention of the originator (CMEMS) in the following manner: <Generated using CMEMS Products, production centre ACRI-ST>

    ancillary_variables :

    flags CHL_uncertainty

    citation :

    The Licensees will ensure that original CMEMS products - or value added products or derivative works developed from CMEMS Products including publications and pictures - shall credit CMEMS by explicitly making mention of the originator (CMEMS) in the following manner: <Generated using CMEMS Products, production centre ACRI-ST>

    cmems_product_id :

    OCEANCOLOUR_GLO_BGC_L4_MY_009_104

    cmems_production_unit :

    OC-ACRI-NICE-FR

    comment :

    average

    contact :

    servicedesk.cmems@acri-st.fr

    copernicusmarine_version :

    1.3.1

    coverage_content_type :

    modelResult

    creation_date :

    2023-11-29 UTC

    creation_time :

    01:06:50 UTC

    creator_email :

    servicedesk.cmems@acri-st.fr

    creator_name :

    ACRI

    creator_url :

    http://marine.copernicus.eu

    date_created :

    2023-11-29T01:06:50Z

    distribution_statement :

    See CMEMS Data License

    duration_time :

    PT146878S

    earth_radius :

    6378.137

    easternmost_longitude :

    180.0

    easternmost_valid_longitude :

    180.00001525878906

    file_quality_index :

    0

    geospatial_bounds :

    POLYGON ((90.000000 -180.000000, 90.000000 180.000000, -90.000000 180.000000, -90.000000 -180.000000, 90.000000 -180.000000))

    geospatial_bounds_crs :

    EPSG:4326

    geospatial_bounds_vertical_crs :

    EPSG:5829

    geospatial_lat_max :

    89.97916412353516

    geospatial_lat_min :

    -89.97917175292969

    geospatial_lon_max :

    179.9791717529297

    geospatial_lon_min :

    -179.9791717529297

    geospatial_vertical_max :

    0

    geospatial_vertical_min :

    0

    geospatial_vertical_positive :

    up

    grid_mapping :

    Equirectangular

    grid_resolution :

    4.638312339782715

    history :

    Created using software developed at ACRI-ST

    id :

    20231121_cmems_obs-oc_glo_bgc-plankton_myint_l4-gapfree-multi-4km_P1D

    input_files_reprocessings :

    Processors versions: MODIS R2022.0NRT/VIIRSN R2022.0.1NRT/OLCIA 07.02/VIIRSJ1 R2022.0NRT/OLCIB 07.02

    institution :

    ACRI

    keywords :

    EARTH SCIENCE > OCEANS > OCEAN CHEMISTRY > CHLOROPHYLL

    keywords_vocabulary :

    NASA Global Change Master Directory (GCMD) Science Keywords

    lat_step :

    0.0416666679084301

    license :

    See CMEMS Data License

    lon_step :

    0.0416666679084301

    long_name :

    Chlorophyll-a concentration - Mean of the binned pixels

    naming_authority :

    CMEMS

    nb_bins :

    37324800

    nb_equ_bins :

    8640

    nb_grid_bins :

    37324800

    nb_valid_bins :

    19169208

    netcdf_version_id :

    4.3.3.1 of Jul 8 2016 18:15:50 $

    northernmost_latitude :

    90.0

    northernmost_valid_latitude :

    58.08333206176758

    overall_quality :

    mode=myint

    parameter :

    Chlorophyll-a concentration

    parameter_code :

    CHL

    pct_bins :

    100.0

    pct_valid_bins :

    51.357831790123456

    period_duration_day :

    P1D

    period_end_day :

    20231121

    period_start_day :

    20231121

    platform :

    Aqua,Suomi-NPP,Sentinel-3a,JPSS-1 (NOAA-20),Sentinel-3b

    processing_level :

    L4

    product_level :

    4

    product_name :

    20231121_cmems_obs-oc_glo_bgc-plankton_myint_l4-gapfree-multi-4km_P1D

    product_type :

    day

    project :

    CMEMS

    publication :

    Gohin, F., Druon, J. N., Lampert, L. (2002). A five channel chlorophyll concentration algorithm applied to SeaWiFS data processed by SeaDAS in coastal waters. International journal of remote sensing, 23(8), 1639-1661 + Hu, C., Lee, Z., Franz, B. (2012). Chlorophyll a algorithms for oligotrophic oceans: A novel approach based on three-band reflectance difference. Journal of Geophysical Research, 117(C1). doi: 10.1029/2011jc007395

    publisher_email :

    servicedesk.cmems@mercator-ocean.eu

    publisher_name :

    CMEMS

    publisher_url :

    http://marine.copernicus.eu

    references :

    http://www.globcolour.info GlobColour has been originally funded by ESA with data from ESA, NASA, NOAA and GeoEye. This version has received funding from the European Community s Seventh Framework Programme ([FP7/2007-2013]) under grant agreement n. 282723 [OSS2015 project].

    registration :

    5

    sensor :

    Moderate Resolution Imaging Spectroradiometer,Visible Infrared Imaging Radiometer Suite,Ocean and Land Colour Instrument

    sensor_name :

    MODISA,VIIRSN,OLCIa,VIIRSJ1,OLCIb

    sensor_name_list :

    MOD,VIR,OLA,VJ1,OLB

    site_name :

    GLO

    software_name :

    globcolour_l3_reproject

    software_version :

    2022.2

    source :

    surface observation

    southernmost_latitude :

    -90.0

    southernmost_valid_latitude :

    -78.58333587646484

    standard_name :

    mass_concentration_of_chlorophyll_a_in_sea_water

    standard_name_vocabulary :

    NetCDF Climate and Forecast (CF) Metadata Convention

    start_date :

    2023-11-20 UTC

    start_time :

    15:24:55 UTC

    stop_date :

    2023-11-22 UTC

    stop_time :

    08:12:52 UTC

    summary :

    CMEMS product: cmems_obs-oc_glo_bgc-plankton_my_l4-gapfree-multi-4km_P1D, generated by ACRI-ST

    time_coverage_duration :

    PT146878S

    time_coverage_end :

    2023-11-22T08:12:52Z

    time_coverage_resolution :

    P1D

    time_coverage_start :

    2023-11-20T15:24:55Z

    title :

    cmems_obs-oc_glo_bgc-plankton_my_l4-gapfree-multi-4km_P1D

    type :

    surface

    units :

    milligram m-3

    valid_max :

    1000.0

    valid_min :

    0.0

    westernmost_longitude :

    -180.0

    westernmost_valid_longitude :

    -180.0

    Array Chunk Bytes 861.26 MiB 10.16 MiB Shape (8475, 148, 180) (100, 148, 180) Dask graph 85 chunks in 8 graph layers Data type float32 numpy.ndarray

  • ocean_mask
    (lat, lon)
    bool
    dask.array<chunksize=(148, 180), meta=np.ndarray>

    Array Chunk Bytes 26.02 kiB 26.02 kiB Shape (148, 180) (148, 180) Dask graph 1 chunks in 20 graph layers Data type bool numpy.ndarray

  • x_geo
    (lat, lon)
    float32
    dask.array<chunksize=(148, 180), meta=np.ndarray>

    Array Chunk Bytes 104.06 kiB 104.06 kiB Shape (148, 180) (148, 180) Dask graph 1 chunks in 1 graph layer Data type float32 numpy.ndarray

  • y_geo
    (lat, lon)
    float32
    dask.array<chunksize=(148, 180), meta=np.ndarray>

    Array Chunk Bytes 104.06 kiB 104.06 kiB Shape (148, 180) (148, 180) Dask graph 1 chunks in 1 graph layer Data type float32 numpy.ndarray

  • z_geo
    (lat, lon)
    float32
    dask.array<chunksize=(148, 180), meta=np.ndarray>

    Array Chunk Bytes 104.06 kiB 104.06 kiB Shape (148, 180) (148, 180) Dask graph 1 chunks in 1 graph layer Data type float32 numpy.ndarray

  • sin_time
    (time, lat, lon)
    float32
    dask.array<chunksize=(100, 148, 180), meta=np.ndarray>

    Array Chunk Bytes 861.26 MiB 10.16 MiB Shape (8475, 148, 180) (100, 148, 180) Dask graph 85 chunks in 1 graph layer Data type float32 numpy.ndarray

  • cos_time
    (time, lat, lon)
    float32
    dask.array<chunksize=(100, 148, 180), meta=np.ndarray>

    Array Chunk Bytes 861.26 MiB 10.16 MiB Shape (8475, 148, 180) (100, 148, 180) Dask graph 85 chunks in 1 graph layer Data type float32 numpy.ndarray

• Indexes: (3)
  • lat
    PandasIndex

    PandasIndex(Index([ 32.0, 31.75,  31.5, 31.25,  31.0, 30.75,  30.5, 30.25,  30.0, 29.75,
           ...
            -2.5, -2.75,  -3.0, -3.25,  -3.5, -3.75,  -4.0, -4.25,  -4.5, -4.75],
          dtype='float32', name='lat', length=148))

  • lon
    PandasIndex

    PandasIndex(Index([ 45.0, 45.25,  45.5, 45.75,  46.0, 46.25,  46.5, 46.75,  47.0, 47.25,
           ...
            87.5, 87.75,  88.0, 88.25,  88.5, 88.75,  89.0, 89.25,  89.5, 89.75],
          dtype='float32', name='lon', length=180))

  • time
    PandasIndex

    PandasIndex(DatetimeIndex(['1997-10-01', '1997-10-02', '1997-10-03', '1997-10-04',
                   '1997-10-05', '1997-10-06', '1997-10-07', '1997-10-08',
                   '1997-10-09', '1997-10-10',
                   ...
                   '2020-12-22', '2020-12-23', '2020-12-24', '2020-12-25',
                   '2020-12-26', '2020-12-27', '2020-12-28', '2020-12-29',
                   '2020-12-30', '2020-12-31'],
                  dtype='datetime64[ns]', name='time', length=8475, freq=None))

• Attributes: (92)

  Conventions :

  CF-1.8, ACDD-1.3

  DPM_reference :

  GC-UD-ACRI-PUG

  IODD_reference :

  GC-UD-ACRI-PUG

  acknowledgement :

  The Licensees will ensure that original CMEMS products - or value added products or derivative works developed from CMEMS Products including publications and pictures - shall credit CMEMS by explicitly making mention of the originator (CMEMS) in the following manner: <Generated using CMEMS Products, production centre ACRI-ST>

  citation :

  The Licensees will ensure that original CMEMS products - or value added products or derivative works developed from CMEMS Products including publications and pictures - shall credit CMEMS by explicitly making mention of the originator (CMEMS) in the following manner: <Generated using CMEMS Products, production centre ACRI-ST>

  cmems_product_id :

  OCEANCOLOUR_GLO_BGC_L3_MY_009_103

  cmems_production_unit :

  OC-ACRI-NICE-FR

  comment :

  average

  contact :

  servicedesk.cmems@acri-st.fr

  copernicusmarine_version :

  1.3.1

  creation_date :

  2024-04-25 UTC

  creation_time :

  00:47:33 UTC

  creator_email :

  servicedesk.cmems@acri-st.fr

  creator_name :

  ACRI

  creator_url :

  http://marine.copernicus.eu

  date_created :

  2024-04-25T00:47:33Z

  distribution_statement :

  See CMEMS Data License

  duration_time :

  PT107179S

  earth_radius :

  6378.137

  easternmost_longitude :

  180.0

  easternmost_valid_longitude :

  180.00001525878906

  file_quality_index :

  0

  geospatial_bounds :

  POLYGON ((90.000000 -180.000000, 90.000000 180.000000, -90.000000 180.000000, -90.000000 -180.000000, 90.000000 -180.000000))

  geospatial_bounds_crs :

  EPSG:4326

  geospatial_bounds_vertical_crs :

  EPSG:5829

  geospatial_lat_max :

  89.97916412353516

  geospatial_lat_min :

  -89.97917175292969

  geospatial_lon_max :

  179.9791717529297

  geospatial_lon_min :

  -179.9791717529297

  geospatial_vertical_max :

  0

  geospatial_vertical_min :

  0

  geospatial_vertical_positive :

  up

  grid_mapping :

  Equirectangular

  grid_resolution :

  4.638312339782715

  history :

  Created using software developed at ACRI-ST

  id :

  20240417_cmems_obs-oc_glo_bgc-plankton_myint_l3-multi-4km_P1D

  institution :

  ACRI

  keywords :

  EARTH SCIENCE > OCEANS > OCEAN CHEMISTRY > CHLOROPHYLL, EARTH SCIENCE > BIOLOGICAL CLASSIFICATION > PROTISTS > PLANKTON > PHYTOPLANKTON

  keywords_vocabulary :

  NASA Global Change Master Directory (GCMD) Science Keywords

  lat_step :

  0.0416666679084301

  license :

  See CMEMS Data License

  lon_step :

  0.0416666679084301

  naming_authority :

  CMEMS

  nb_bins :

  37324800

  nb_equ_bins :

  8640

  nb_grid_bins :

  37324800

  nb_valid_bins :

  9704694

  netcdf_version_id :

  4.3.3.1 of Jul 8 2016 18:15:50 $

  northernmost_latitude :

  90.0

  northernmost_valid_latitude :

  82.70833587646484

  overall_quality :

  mode=myint

  parameter :

  Chlorophyll-a concentration,Phytoplankton Functional Types

  parameter_code :

  CHL,DIATO,DINO,HAPTO,GREEN,PROKAR,PROCHLO,MICRO,NANO,PICO

  pct_bins :

  100.0

  pct_valid_bins :

  26.000659079218106

  period_duration_day :

  P1D

  period_end_day :

  20240417

  period_start_day :

  20240417

  platform :

  Aqua,Suomi-NPP,Sentinel-3a,JPSS-1 (NOAA-20),Sentinel-3b

  processing_level :

  L3

  product_level :

  3

  product_name :

  20240417_cmems_obs-oc_glo_bgc-plankton_myint_l3-multi-4km_P1D

  product_type :

  day

  project :

  CMEMS

  publication :

  Gohin, F., Druon, J. N., Lampert, L. (2002). A five channel chlorophyll concentration algorithm applied to SeaWiFS data processed by SeaDAS in coastal waters. International journal of remote sensing, 23(8), 1639-1661 + Hu, C., Lee, Z., Franz, B. (2012). Chlorophyll a algorithms for oligotrophic oceans: A novel approach based on three-band reflectance difference. Journal of Geophysical Research, 117(C1). doi: 10.1029/2011jc007395 + Xi H, Losa S N, Mangin A, Garnesson P, Bretagnon M, Demaria J, Soppa M A, Hembise Fanton d Andon O, Bracher A (2021) Global chlorophyll a concentrations of phytoplankton functional types with detailed uncertainty assessment using multi-sensor ocean color and sea surface temperature satellite products, JGR, in review.

  publisher_email :

  servicedesk.cmems@mercator-ocean.eu

  publisher_name :

  CMEMS

  publisher_url :

  http://marine.copernicus.eu

  references :

  http://www.globcolour.info GlobColour has been originally funded by ESA with data from ESA, NASA, NOAA and GeoEye. This version has received funding from the European Community s Seventh Framework Programme ([FP7/2007-2013]) under grant agreement n. 282723 [OSS2015 project].

  registration :

  5

  sensor :

  Moderate Resolution Imaging Spectroradiometer,Visible Infrared Imaging Radiometer Suite,Ocean and Land Colour Instrument

  sensor_name :

  MODISA,VIIRSN,OLCIa,VIIRSJ1,OLCIb

  sensor_name_list :

  MOD,VIR,OLA,VJ1,OLB

  site_name :

  GLO

  software_name :

  globcolour_l3_reproject

  software_version :

  2022.2

  source :

  surface observation

  southernmost_latitude :

  -90.0

  southernmost_valid_latitude :

  -66.33333587646484

  standard_name_vocabulary :

  NetCDF Climate and Forecast (CF) Metadata Convention

  start_date :

  2024-04-16 UTC

  start_time :

  21:12:05 UTC

  stop_date :

  2024-04-18 UTC

  stop_time :

  02:58:23 UTC

  summary :

  CMEMS product: cmems_obs-oc_glo_bgc-plankton_my_l3-multi-4km_P1D, generated by ACRI-ST

  time_coverage_duration :

  PT107179S

  time_coverage_end :

  2024-04-18T02:58:23Z

  time_coverage_resolution :

  P1D

  time_coverage_start :

  2024-04-16T21:12:05Z

  title :

  cmems_obs-oc_glo_bgc-plankton_my_l3-multi-4km_P1D

  westernmost_longitude :

  -180.0

  westernmost_valid_longitude :

  -180.0

Process the data for training and testing

The time_series_split function in ml_utils.py (loaded as mu) will do the following.

• Get the year(s) we want for training
• Remove the days with too many NaNs (> 10 percent) in response or explanatory variables
• Split data randomly into train, validate, and test pools
• Normalize the numerical predictor variables (SST and salinity)
• Replace NaNs in our numerical predictor variables with the pixel mean in training data.
• Return stacked Numpy arrays

We need to normalize (mean zero, variance of 1) our numerical predictor variables but we need to compute the normalization metrics (X_mean and X_std) from the training data only. Otherwise we would have “data leakage”; information from the data we are predicting (not using for training) is used in testing or validation.

This function is stored in model_utils.py and loaded with import model_utils as mu. If you are running this notebook in your own directory, you will need to download model_utils.py into the same directory as where you have this notebook.

help(mu.time_series_split)

Help on function time_series_split in module ml_utils:

time_series_split(data: xarray.core.dataset.Dataset, num_var, cat_var=None, mask='ocean_mask', split_ratio=(0.7, 0.2, 0.1), seed=42, X_mean=None, X_std=None, y_var='y', years=None, cast_float32=True, contiguous_splits=False, return_full=False, nan_max_frac_y=0.5, nan_max_frac_v=0.05, add_missingness=False, verbose=False)
    Pure-NumPy splitter/normalizer for xarray Dataset (NumPy-backed).
    Splits time indices randomly into train/val/test.
    Normalizes numerical variables only, using either provided or training-set mean/std.
    Replaces NaNs with 0s.
    Removes days with too many NaNs (>

    Parameters:
      data: xarray dataset with 'time' dimension
      years: year(s) to use for training
      num_var: list of numerical variable names (to normalize)
      cat_var: list of categorical variable names (no normalization)
      y_var: name of response variable in data.
      mask: name of the mask in the data. 0 = ignore; 1 = use; can be static or one for each time step (y)
      split_ratio: tuple (train, val, test), must sum to 1.0
      seed: random seed
      nan_max_frac_y: maximum percent missing values for response
      nan_max_frac_v: maximum percent missing values for explanatory variables
      X_mean, X_std: optional mean/std arrays for num_var only (shape = [n_num_vars])
      cast_float32 : If True, cast outputs to float32 (good for TF)
      verbose: print out info
      return_full: return X and y
      contiguous_splits: versus random splits

    Returns:
      X, y: full input and response arrays (NumPy arrays)
      X_train, y_train, X_val, y_val, X_test, y_test: split data X_mean, X_std: mean and std used for normalization
      If return_full=False, X and y are None.

# Our predictor variables; numerical variables and categorical variables
num_var = ['sst','so']
cat_var = ['ocean_mask','sin_time','cos_time','x_geo', 'y_geo', 'z_geo']
# Our time_series_split function needs the dataset to be loaded into memory
dataset.load();

# Train on 3 years in different decades
X, y, X_train, y_train, X_val, y_val, X_test, y_test, X_mean, X_std = \
    mu.time_series_split(dataset,
                         num_var, cat_var=cat_var,
                         split_ratio=(0.7,0.2,0.1),
                         years=[2000, 2010, 2020],
                         nan_max_frac_y=0.5, # max y that can be NaN
                         nan_max_frac_v=0.05); # max predictors vars that can be imputed

Create the CNN models

A simple 2 layer 2D CNN to create pixel predictions. This is super simple and we don’t use Batch Normalization or Dropout. Those are standard techniques to improve fitting but did not seem to have much effect for this simple CNN.

from keras.models import Sequential
from keras.layers import Input, Conv2D

def tiny_CNN(input_shape):
    """
    Create a simple 2-layer CNN model for gridded data to predict single output (log-CHL).
    Layer 1 — learns 64 fine-scale 3x3 spatial features.
    Layer 2 — expands context to 5x5; combines fine features into larger structures.
    Activation "relu" provides non-linearity relationship between variables and chl.
    Output combines all the previous layer’s features into a CHL estimate at each pixel.
    1 response (chl value) — hence, 1 prediction pixel = 1 filter. Activation is linear since predicting
    a real continuous variable (log CHL)
    """
    model = Sequential()
    model.add(Input(shape=input_shape)) # define the input dimensions for the CNN
    model.add(Conv2D(filters=64, kernel_size=(3, 3), padding='same', activation='relu')) # Layer 1
    model.add(Conv2D(filters=32, kernel_size=(3, 3), padding='same', activation='relu')) # Layer 2
    model.add(Conv2D(filters=1, kernel_size=(3, 3), padding='same', activation='linear')) # Output

    return model

from keras.models import Model
from keras.layers import Input, Conv2D

def tiny_cnn(input_shape):
    """
    Create a simple 2-layer CNN model for gridded data to predict single output (log-CHL).
    Layer 1 — learns 64 fine-scale 3x3 spatial features.
    Layer 2 — expands context to 5x5; combines fine features into larger structures.
    Activation "relu" provides non-linearity relationship between variables and chl.
    Output combines all the previous layer’s features into a CHL estimate at each pixel.
    1 response (chl value) — hence, 1 prediction pixel = 1 filter. Activation is linear since predicting
    a real continuous variable (log CHL)
    """
    inputs = Input(shape=input_shape)  # define the input dimensions for the CNN

    x = Conv2D(filters=64, kernel_size=(3, 3), padding='same', activation='relu')(inputs)   # Layer 1
    x = Conv2D(filters=32, kernel_size=(3, 3), padding='same', activation='relu')(x)        # Layer 2
    outputs = Conv2D(filters=1, kernel_size=(3, 3), padding='same', activation='linear')(x)  # Output

    model = Model(inputs=inputs, outputs=outputs, name="tiny_cnn")
    return model

Create a custom loss function

The y have NaNs (over land and under clouds). We need to mask these out to calculate the training and validation loss. That way we do not train on NAs in y.

import tensorflow as tf
import numpy as np

# Build once, BEFORE compiling the model
floatx = tf.keras.backend.floatx()  # e.g., 'float32' or 'float16' if using mixed precision
ocean_mask_np = dataset['ocean_mask'].values.astype(np.float32)           # (H, W)
OCEAN_MASK = tf.constant(ocean_mask_np)[tf.newaxis, ..., tf.newaxis]      # (1, H, W, 1)
ocean_bool = tf.greater(OCEAN_MASK, 0.5)

@tf.function
def masked_mae(y_true, y_pred):
    # Ensure shape (B, H, W, 1)
    if y_true.shape.rank == 3:
        y_true = y_true[..., tf.newaxis]
    if y_pred.shape.rank == 3:
        y_pred = y_pred[..., tf.newaxis]

    # Valid where labels are finite (not = NaN)
    valid = tf.math.is_finite(y_true)   # (B, H, W, 1), bool
    mask_bool = tf.logical_and(valid, ocean_bool)
    mask = tf.cast(mask_bool, y_true.dtype)
    mask = tf.stop_gradient(mask)

    # Safe labels for diff (avoid any NaNs in subtraction)
    y_true_safe = tf.where(mask_bool, y_true, tf.zeros_like(y_true))

    diff = tf.abs(y_true_safe - y_pred) * mask
    denom = tf.reduce_sum(mask) + tf.keras.backend.epsilon()
    # Safe divide: if a batch has no valid ocean pixels, return 0.0 instead of NaN.
    return tf.where(denom > 0, tf.reduce_sum(diff) / denom, tf.zeros((), y_true.dtype))

Train the model

We will train for 50 epochs. From plotting out the fitting, I know that the validation and training errors level off around 50 epochs. Compile the model with Adam optimizer which is a standard choice. We use the custom loss function masked_mae because the standard one would break with NaNs in our y. Batch size is the number of days of data used in each fitting round. You can make it bigger but it would need more memory.

# Create the model using the correct input shape
cnn_model = tiny_cnn(X_train.shape[1:])

# Compile the model
cnn_model.compile(
    optimizer='adam',
    loss=masked_mae
)

# Train the CNN model
cnn_history = cnn_model.fit(
    X_train, y_train,
    batch_size=8,
    epochs=50,
    validation_data=(X_val, y_val)
)

Epoch 1/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 9s 48ms/step - loss: 0.6982 - val_loss: 0.3342

Epoch 2/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.3109 - val_loss: 0.3010

Epoch 3/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2945 - val_loss: 0.2872

Epoch 4/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2897 - val_loss: 0.2769

Epoch 5/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2801 - val_loss: 0.2720

Epoch 6/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2704 - val_loss: 0.2663

Epoch 7/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2684 - val_loss: 0.2632

Epoch 8/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2736 - val_loss: 0.2607

Epoch 9/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2640 - val_loss: 0.2622

Epoch 10/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2636 - val_loss: 0.2612

Epoch 11/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2653 - val_loss: 0.2547

Epoch 12/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2600 - val_loss: 0.2667

Epoch 13/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2583 - val_loss: 0.2564

Epoch 14/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2544 - val_loss: 0.2590

Epoch 15/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2566 - val_loss: 0.2517

Epoch 16/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2527 - val_loss: 0.2529

Epoch 17/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2566 - val_loss: 0.2668

Epoch 18/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2588 - val_loss: 0.2499

Epoch 19/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 14ms/step - loss: 0.2524 - val_loss: 0.2547

Epoch 20/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2502 - val_loss: 0.2505

Epoch 21/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2495 - val_loss: 0.2489

Epoch 22/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2524 - val_loss: 0.2490

Epoch 23/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2516 - val_loss: 0.2456

Epoch 24/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2498 - val_loss: 0.2543

Epoch 25/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2456 - val_loss: 0.2546

Epoch 26/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2502 - val_loss: 0.2459

Epoch 27/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2479 - val_loss: 0.2426

Epoch 28/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 15ms/step - loss: 0.2463 - val_loss: 0.2555

Epoch 29/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2489 - val_loss: 0.2517

Epoch 30/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2468 - val_loss: 0.2743

Epoch 31/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 14ms/step - loss: 0.2549 - val_loss: 0.2463

Epoch 32/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2446 - val_loss: 0.2470

Epoch 33/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2444 - val_loss: 0.2476

Epoch 34/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2428 - val_loss: 0.2580

Epoch 35/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2441 - val_loss: 0.2587

Epoch 36/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2488 - val_loss: 0.2447

Epoch 37/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2439 - val_loss: 0.2522

Epoch 38/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2422 - val_loss: 0.2468

Epoch 39/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2447 - val_loss: 0.2427

Epoch 40/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 14ms/step - loss: 0.2416 - val_loss: 0.2402

Epoch 41/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2421 - val_loss: 0.2408

Epoch 42/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2379 - val_loss: 0.2518

Epoch 43/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2415 - val_loss: 0.2456

Epoch 44/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2425 - val_loss: 0.2725

Epoch 45/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2475 - val_loss: 0.2418

Epoch 46/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2408 - val_loss: 0.2450

Epoch 47/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2389 - val_loss: 0.2448

Epoch 48/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2396 - val_loss: 0.2439

Epoch 49/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2423 - val_loss: 0.2389

Epoch 50/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 1s 14ms/step - loss: 0.2402 - val_loss: 0.2373

Save the model for loading later

# Save
meta = {"num_var": num_var, "cat_var": cat_var, "input_shape": list(X_train.shape[1:])}
mu.save_cnn_bundle("artifacts/cnn_bundle.zip", cnn_model, X_mean, X_std, meta)

'artifacts/cnn_bundle.zip'

# Load later (in a fresh session)
from model_utils import load_cnn_bundle
cnn_model, X_mean, X_std, meta = load_cnn_bundle("artifacts/cnn_bundle.zip", compile=False)

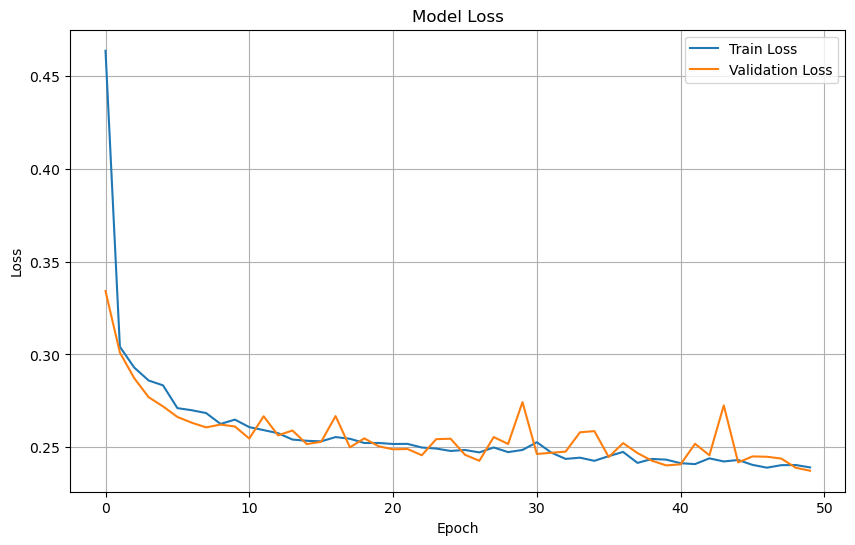

Plot training & validation loss values

plt.figure(figsize=(10, 6))
plt.plot(cnn_history.history['loss'], label='Train Loss')
plt.plot(cnn_history.history['val_loss'], label='Validation Loss')
plt.title('Model Loss')
plt.xlabel('Epoch')
plt.ylabel('Loss')
plt.legend(loc='upper right')
plt.grid(True)
plt.show()

Prepare test dataset

# Evaluate the model on the test dataset
test_loss = cnn_model.evaluate(X_test, y_test)
print(f"Test Loss: {test_loss}")

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - loss: 0.2376

Test Loss: 0.2392425239086151

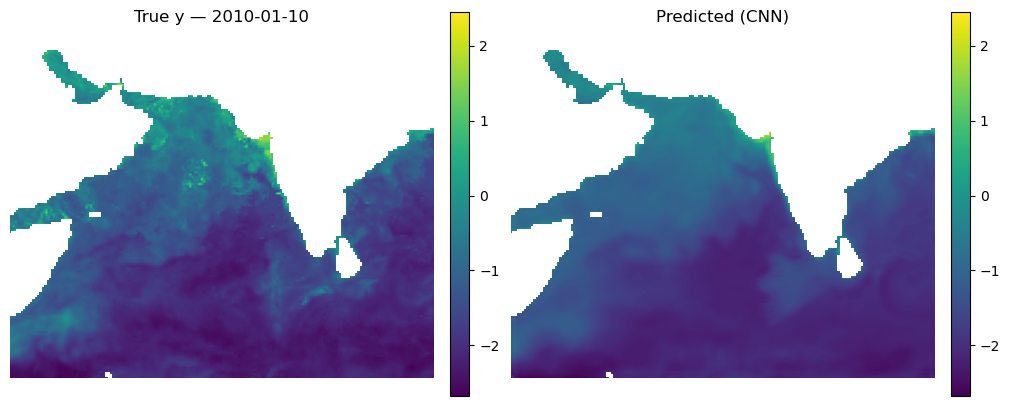

Make some maps of our predictions

_ = mu.predict_and_plot_date(
    data_xr=dataset,
    date="2010-01-10",
    model=cnn_model,
    num_var=num_var,
    cat_var=cat_var,
    X_mean=X_mean, X_std=X_std,
    model_type="cnn",
    use_percentiles=False
)

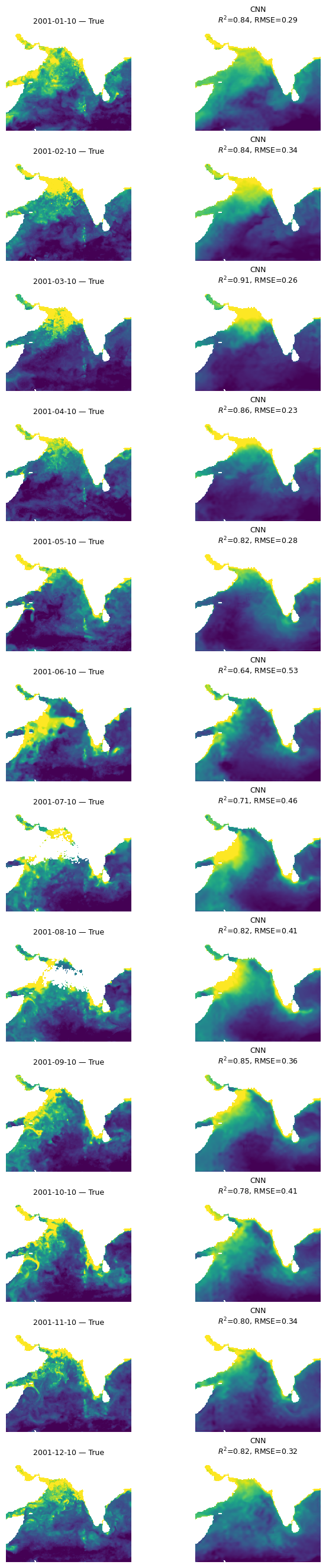

Let’s look at all the months

This is a function that takes our model, the normalizing X_mean and X_std, the year to use and then makes plots of true versus predicted for the first available day each month. We need to use X_mean and X_std from our training data. This was returned by time_series_split() above.

mu.plot_true_vs_predicted_year_multi(
    dataset, "2001", [cnn_model], X_mean, X_std,
    num_var, cat_var, y_var="y", day=10,
    model_types=["cnn"],
    model_names=["CNN"])

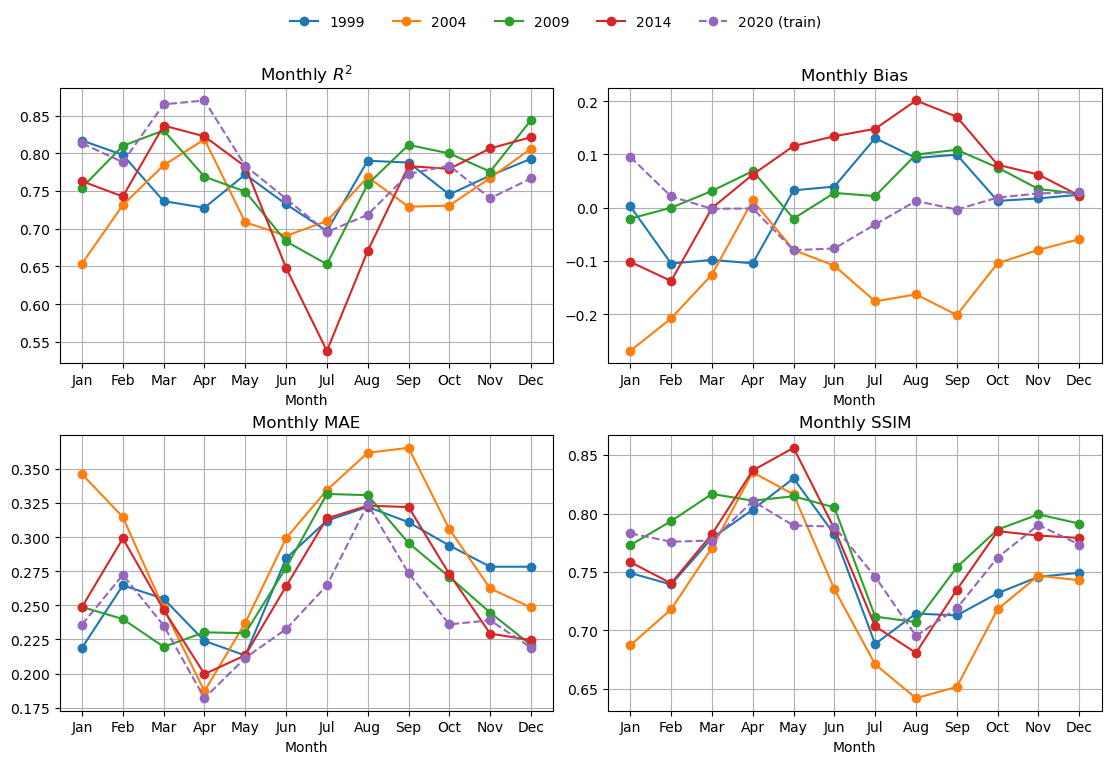

Look at fit metrics over years

Here I compute the metrics for 4 days in each month and average together. The metrics are R2, bias, mean abs error and SSIM. SSIM/MS-SSIM is a metric for images. It runs from (about) 0 to 1. Higher is better; 1.0 = identical. Rough, practical bands:

• ≥ 0.95 — near-indistinguishable (often called “visually lossless” in imaging)
• 0.90–0.95 — very good structural agreement
• 0.80–0.90 — clearly similar patterns, some blur/offset/contrast differences
• 0.60–0.80 — moderate; big structures align but details differ
• < 0.60 — poor structural match

%%time
mu.plot_4metric_by_month(dataset, ['1999', '2004', '2009', '2014', '2020'],
                     cnn_model, X_mean, X_std,
                     num_var, cat_var,
                     training_year="2020")

CPU times: user 8.69 s, sys: 231 ms, total: 8.92 s
Wall time: 8.9 s

Compare to a BRT

We will use exactly the same explanatory variables. The main difference is that the BRT does not learn local features, like fronts and edges. On the otherhand, it doesn’t have the CNNs tendency to smudge out (average) local patterns.

# Fit the model
brt, brt_model = mu.train_brt_from_splits(
    X_train, y_train, feature_names=num_var + cat_var,
    grid_shape=(dataset.sizes['lat'], dataset.sizes['lon'])
)

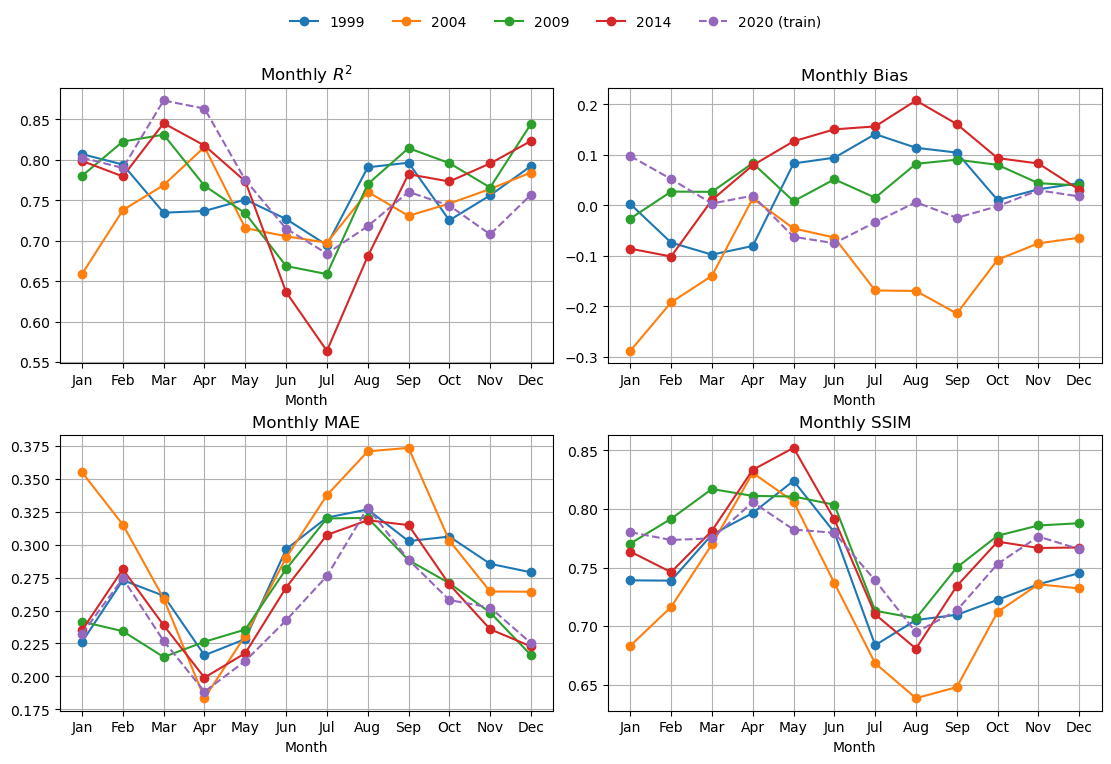

Look a fit metrics

This is slow for BRT.

%%time
mu.plot_4metric_by_month(dataset, ['1999', '2004', '2009', '2014', '2020'],
                     brt_model, X_mean, X_std,
                     num_var, cat_var,
                     training_year="2020",
                     model_type="brt")

CPU times: user 3min, sys: 1.81 s, total: 3min 2s
Wall time: 1min 33s

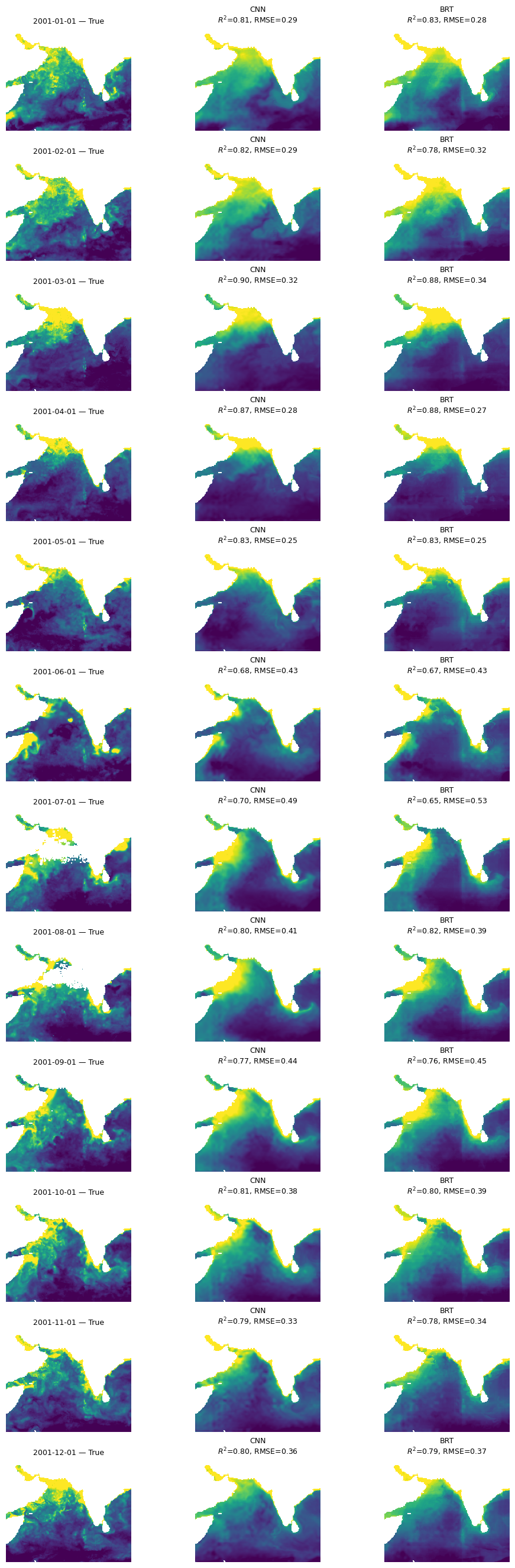

Compare BRT and CNN

mu.plot_true_vs_predicted_year_multi(
    dataset, "2001", [cnn_model, brt_model], X_mean, X_std,
    num_var, cat_var, y_var="y",
    model_types=["cnn", "tabular"],
    model_names=["CNN", "BRT"])

Try a UNet model

A feature of our CNN is that it is creating pixel estimates by averaging over an area so by design it will lose fine scale features. The BRT is a pixel by pixel estimate so it will retain fine-scale features but it cannot use the spatial information from neighboring pixels. Let’s try a U-Net that has a ‘decoder’ to upscale the prediction from the average back to fine-scale.

from keras.layers import (
    Input, Conv2D, MaxPooling2D, UpSampling2D,
    Concatenate
)
from keras.models import Model

def tiny_unet(input_shape):
    inputs = Input(shape=input_shape)

    # --- Encoder ---
    # Level 1
    c1 = Conv2D(32, (3, 3), activation='relu', padding='same')(inputs)
    c1 = Conv2D(32, (3, 3), activation='relu', padding='same')(c1)
    p1 = MaxPooling2D((2, 2))(c1)      # H/2, W/2

    # Level 2 (bottleneck-ish)
    c2 = Conv2D(64, (3, 3), activation='relu', padding='same')(p1)
    c2 = Conv2D(64, (3, 3), activation='relu', padding='same')(c2)

    # --- Decoder ---
    # Up to Level 1
    u1 = UpSampling2D((2, 2))(c2)      # back to H, W
    u1 = Concatenate()([u1, c1])       # skip connection
    c3 = Conv2D(32, (3, 3), activation='relu', padding='same')(u1)
    c3 = Conv2D(32, (3, 3), activation='relu', padding='same')(c3)

    # --- Output ---
    outputs = Conv2D(1, (1, 1), activation='linear', padding='same')(c3)

    model = Model(inputs, outputs, name="tiny_unet")
    return model

# Create the model using the correct input shape
unet_model = tiny_unet(X_train.shape[1:])

# Compile the model
unet_model.compile(
    optimizer='adam',
    loss=masked_mae
)

# Train the CNN model
unet_history = unet_model.fit(
    X_train, y_train,
    batch_size=8,
    epochs=50,
    validation_data=(X_val, y_val)
)

Epoch 1/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 14s 87ms/step - loss: 0.6598 - val_loss: 0.3015

Epoch 2/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 31ms/step - loss: 0.2981 - val_loss: 0.2819

Epoch 3/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 31ms/step - loss: 0.2916 - val_loss: 0.2699

Epoch 4/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 31ms/step - loss: 0.2661 - val_loss: 0.2706

Epoch 5/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 31ms/step - loss: 0.2640 - val_loss: 0.2551

Epoch 6/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 31ms/step - loss: 0.2736 - val_loss: 0.2478

Epoch 7/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 31ms/step - loss: 0.2497 - val_loss: 0.2472

Epoch 8/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 31ms/step - loss: 0.2516 - val_loss: 0.2501

Epoch 9/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 31ms/step - loss: 0.2480 - val_loss: 0.2409

Epoch 10/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 31ms/step - loss: 0.2471 - val_loss: 0.2397

Epoch 11/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 31ms/step - loss: 0.2421 - val_loss: 0.2482

Epoch 12/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 31ms/step - loss: 0.2377 - val_loss: 0.2366

Epoch 13/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 31ms/step - loss: 0.2377 - val_loss: 0.2374

Epoch 14/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 31ms/step - loss: 0.2389 - val_loss: 0.2316

Epoch 15/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 31ms/step - loss: 0.2387 - val_loss: 0.2343

Epoch 16/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 31ms/step - loss: 0.2319 - val_loss: 0.2426

Epoch 17/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 31ms/step - loss: 0.2367 - val_loss: 0.2355

Epoch 18/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 32ms/step - loss: 0.2319 - val_loss: 0.2296

Epoch 19/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 31ms/step - loss: 0.2308 - val_loss: 0.2267

Epoch 20/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 31ms/step - loss: 0.2298 - val_loss: 0.2300

Epoch 21/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 31ms/step - loss: 0.2313 - val_loss: 0.2277

Epoch 22/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 31ms/step - loss: 0.2253 - val_loss: 0.2354

Epoch 23/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 31ms/step - loss: 0.2293 - val_loss: 0.2303

Epoch 24/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 31ms/step - loss: 0.2272 - val_loss: 0.2234

Epoch 25/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 32ms/step - loss: 0.2220 - val_loss: 0.2246

Epoch 26/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 31ms/step - loss: 0.2262 - val_loss: 0.2281

Epoch 27/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 32ms/step - loss: 0.2251 - val_loss: 0.2201

Epoch 28/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 31ms/step - loss: 0.2265 - val_loss: 0.2233

Epoch 29/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 31ms/step - loss: 0.2230 - val_loss: 0.2285

Epoch 30/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 32ms/step - loss: 0.2211 - val_loss: 0.2216

Epoch 31/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 32ms/step - loss: 0.2201 - val_loss: 0.2321

Epoch 32/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 32ms/step - loss: 0.2202 - val_loss: 0.2235

Epoch 33/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 32ms/step - loss: 0.2191 - val_loss: 0.2242

Epoch 34/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 32ms/step - loss: 0.2209 - val_loss: 0.2223

Epoch 35/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 31ms/step - loss: 0.2138 - val_loss: 0.2176

Epoch 36/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 31ms/step - loss: 0.2189 - val_loss: 0.2167

Epoch 37/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 31ms/step - loss: 0.2134 - val_loss: 0.2138

Epoch 38/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 32ms/step - loss: 0.2165 - val_loss: 0.2138

Epoch 39/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 32ms/step - loss: 0.2143 - val_loss: 0.2134

Epoch 40/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 32ms/step - loss: 0.2125 - val_loss: 0.2145

Epoch 41/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 32ms/step - loss: 0.2175 - val_loss: 0.2113

Epoch 42/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 31ms/step - loss: 0.2153 - val_loss: 0.2171

Epoch 43/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 31ms/step - loss: 0.2110 - val_loss: 0.2158

Epoch 44/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 32ms/step - loss: 0.2075 - val_loss: 0.2138

Epoch 45/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 32ms/step - loss: 0.2127 - val_loss: 0.2146

Epoch 46/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 32ms/step - loss: 0.2100 - val_loss: 0.2132

Epoch 47/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 31ms/step - loss: 0.2148 - val_loss: 0.2158

Epoch 48/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 32ms/step - loss: 0.2103 - val_loss: 0.2108

Epoch 49/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 32ms/step - loss: 0.2080 - val_loss: 0.2160

Epoch 50/50

96/96 ━━━━━━━━━━━━━━━━━━━━ 3s 32ms/step - loss: 0.2099 - val_loss: 0.2099

mu.plot_true_vs_predicted_year_multi(
    dataset, "2001", [cnn_model, unet_model], X_mean, X_std,
    num_var, cat_var, y_var="y",
    model_types=["cnn", "cnn"],
    model_names=["CNN", "UNet"])

Summary

All three models are doing “doing” ok and doing fairly similarly. The CNN models (CNN and UNet) are smoother and do not have the banding issues that we see in the BRT. Also performances shows big variation by season and struggles to fit even our training data in the summer monsoon.

%%time
# CNN example
daily, monthly = mu.evaluate_year_batched(
    dataset, 2000, cnn_model, X_mean, X_std,
    num_var=num_var, cat_var=cat_var,
    model_type='cnn', batch_size=16
)

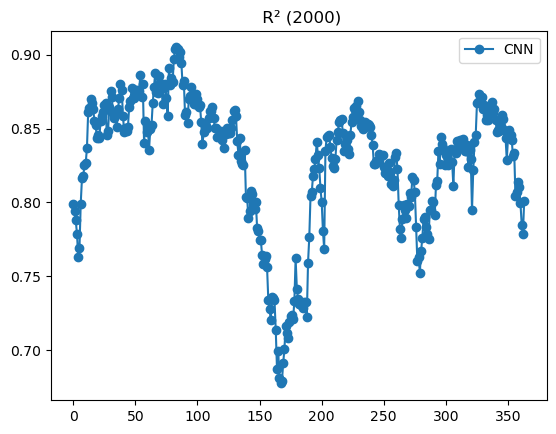

# Plot daily R2 for 2000
daily['r2'].plot(marker='o', label='CNN');
plt.legend(); plt.title(" R² (2000)"); plt.show()

CPU times: user 7.88 s, sys: 22.9 ms, total: 7.91 s
Wall time: 7.88 s

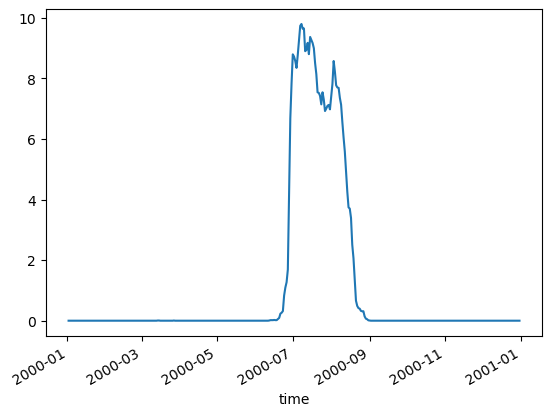

It is true that most of the missing data in our CHL happens during the summer monsoon. We are using a gap-filled CHL product but their algorithm does not fill in pixels if those pixels never had a CHL observation over a decade. This does happen in this region. This means that certain days in July and August always have the same pixels missing. This probably causes odd behavior in those months.

mu.pct_missing_by_day_year(dataset, 2000).plot()
