DaskHub Set-up

Setting up a multi-user JupyterHub with Dask enabled

Requirements

Documentation: https://z2jh.jupyter.org

See examples of full config.yaml files in the config directory in the nmfs-opensci/nmfs-jhub GitHub repo.

Set up on Azure

This is my notes for setting this up on Azure. Attempting to replicate the Openscapes 2i2c JupyterHub: https://github.com/2i2c-org/infrastructure/tree/master/config/clusters/openscapes

That hub is on AWS and is designed for large workshops (100+) however the NMFS OpenSci JHub is quite similar. Main difference at the moment is that I don’t have a shared drive set-up and the user persistent volume (storage) is on the same VM as the user node for their Jupyter Notebook. This means that I cannot have multiple VM sizes. Need to fix so that user can pick a larger VM for a task if needed.

Create your Kubernetes cluster

Log into https:\\portal.azure.com

Get to the dashboard that looks similar to this.

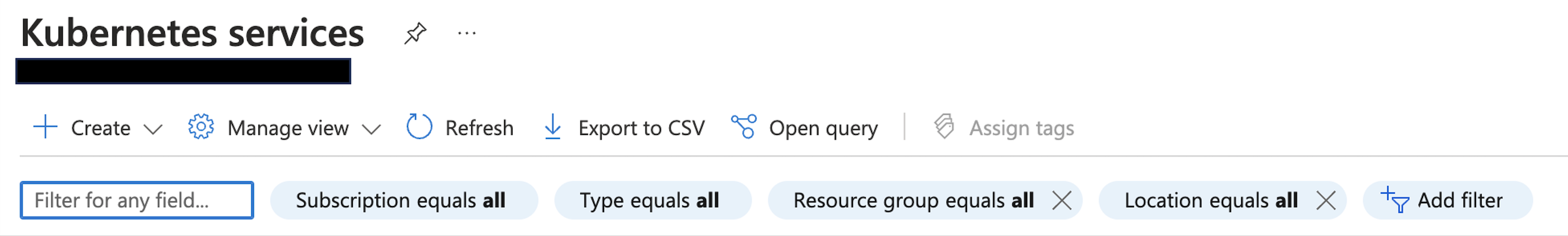

Click on the Kubernetes Services button and you should see something like this

Click Create Kubernetes Cluster

At this point, you will get to the set-up with lots of tabs.

You need to select the resource group. You can create a new one if needed.
You need to give your Kubernetes cluster a name. For example, jhub or daskhub or whatever.
You need to chose the region and zone. If you are using Azure file access (big data in the cloud), then you need to be on the same region as the files you are accessing. Do you have no idea? In that case, just go with the default or something close to you. Make sure to use the same region and zone in every node pool creation step.
Next you chose the “Node size”. This is the size of the base virtural machine (VM). It is going to spin up as many as it needs. The default is Standard DS2 v2 which as 2 CPU, 7 Gig RAM and 1T memory. This is fine for set-up. You can add more (bigger VMs later). Accept autoscaling since this is a multi-user hub.

The first tab is all you need for now. Later you may want to allow the user, to choose a different base VM. You can do that by adding node-pools. That’ll be covered after the initial set-up. For now, just get your basic hub working. You can add more VM sizes later.

Click “Review and Create”

Wait for validation tests to pass.

Click “Create”.

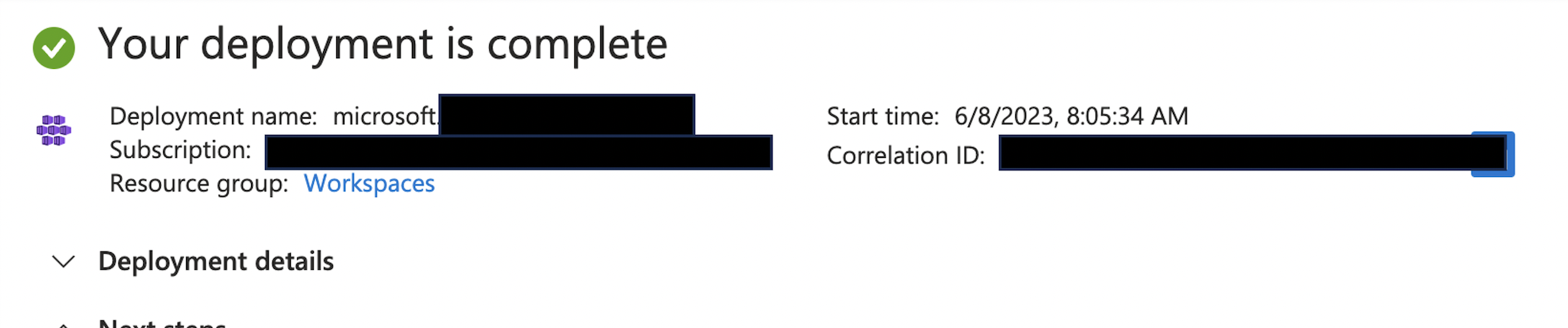

Once it is done deploying, you will see this.

Install DaskHub on your cluster

These next steps are done in the shell after connecting to your cluster. First you need to get to the shell.

Connect to your cluster

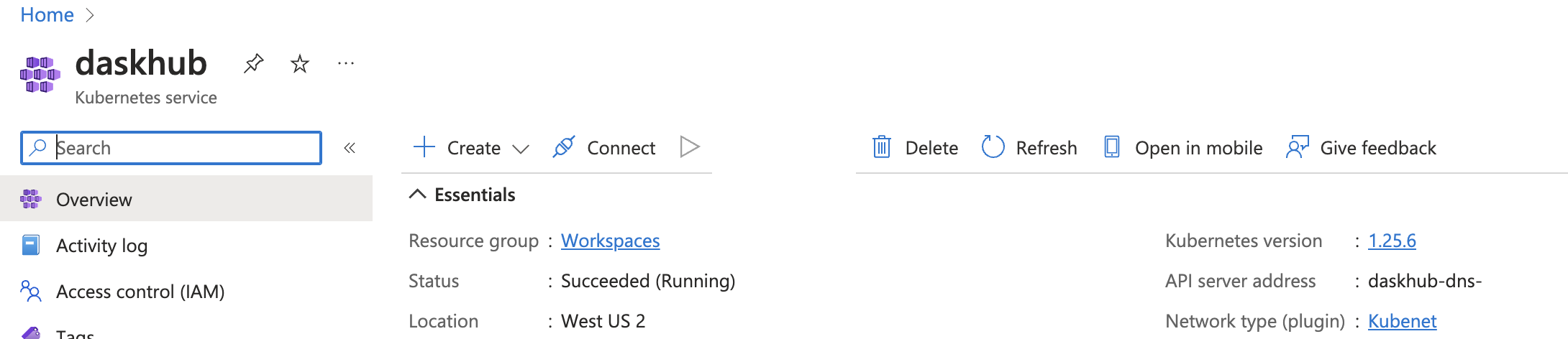

Once you have created your Kubernetes cluster, you want to go to its dashboard (by clicking on the name you gave it). You’ll see something like this (I named mine daskhub).

Click on the Connect icon in the nav bar at top.

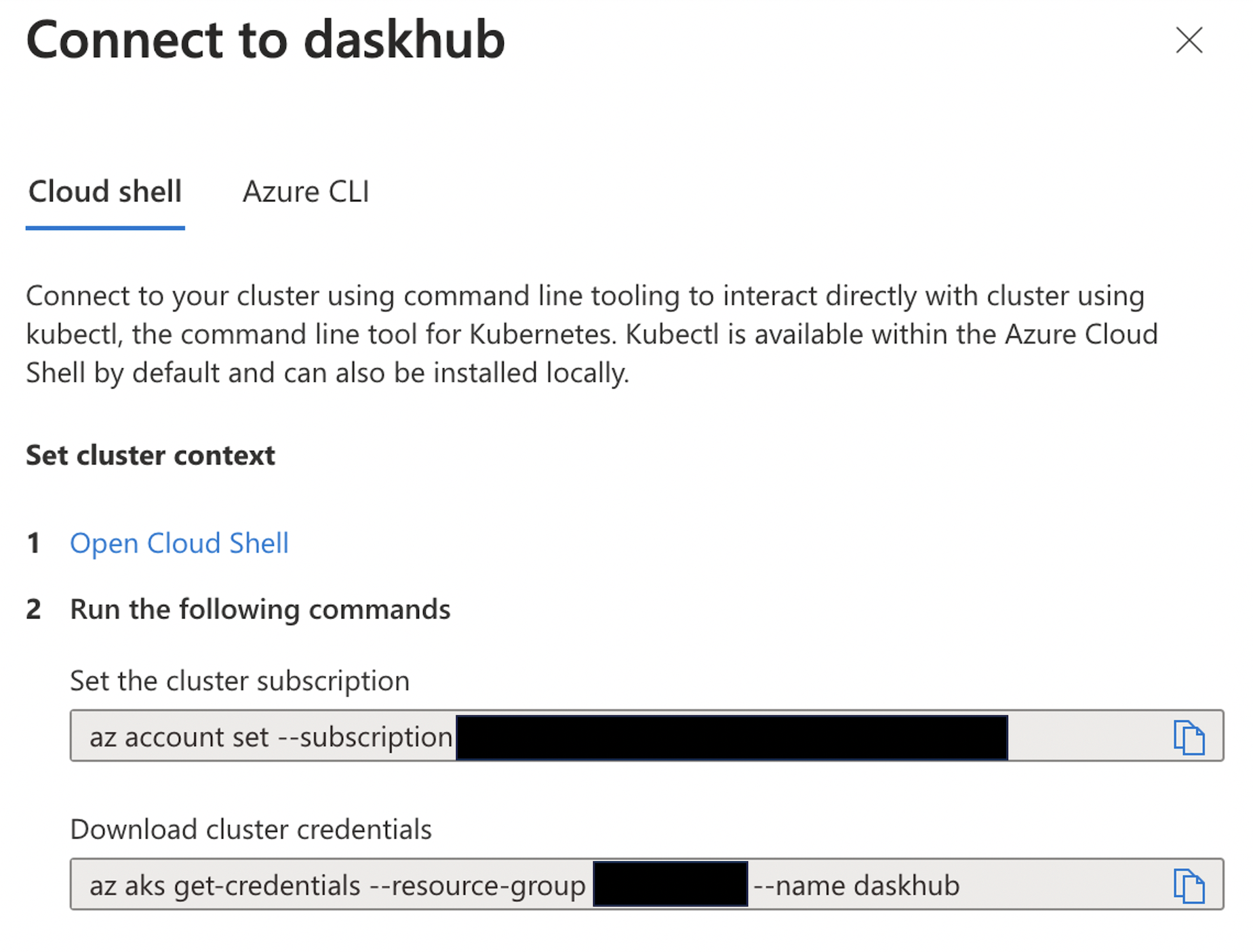

You then see this

Click on the link that says “Open Cloud Shell”.

You will get to a terminal. Paste in the two commands in the previous image (the commands that show up for you that is).

Create `dconfig.yaml`

This will be the configuration file for your Dask-enabled JupyterHub. For now, it can be just comments. Note the name is unimportant but should end in .yaml. I am using dconfig.yaml instead of config.yaml since I already have a config.yaml file for something else–and I have not figured out how to install different hubs in different directories or even different clusters in different directories (I have much to learn…).

nano dconfig.yaml

This will open the nano editor. Edit your file. You can do # just blank for now. Then Cntl-O to save and Cntl-X to exit.

Install daskhub via helm chart

Instructions: https://artifacthub.io/packages/helm/dask/daskhub .

Check that helm is installed

helm version

Tell helm about the dask helm repository

helm repo add dask https://helm.dask.org
helm repo update

Now install

helm upgrade --wait --install --render-subchart-notes \
    dhub dask/daskhub \
    --namespace=dhub --create-namespace \
    --values=dconfig.yaml

You will see this on successful installation (it’s long. much has been cut).

Set-up your external IP address

kubectl config set-context $(kubectl config current-context) --namespace dhub
kubectl --namespace=dhub get service proxy-public

These commands will show the the IP address. Save the public IP address. You will need it in step 2. Look for the IP address under EXTERNAL-IP.

Step 2 Set up https

You can log out of your cluster. The next steps are done elsewhere.

Create a domain name

You will need a domain name for https which you want for security (and JHub won’t stop complaining if you don’t). Find a domain name provider and set one up. It is not expensive. I used GoDaddy.

Create a DNS entry

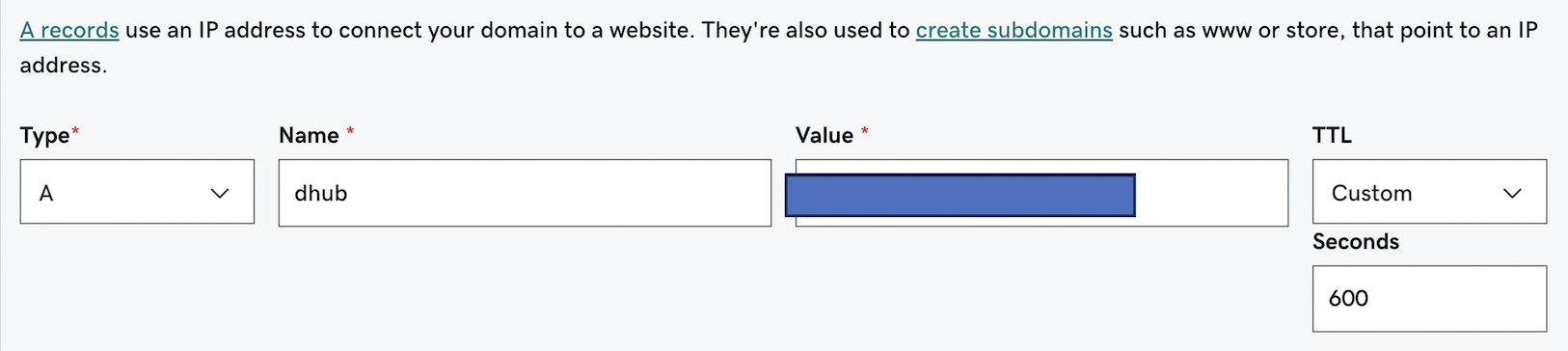

Let’s pretend you set up bluemountain123.live as the domain. Go to the DNS settings for your domain. Add a type A record. This will do 2 things. First this will create the subdomain that you will use to access your JupyterHub. So let’s say you create, dhub as the type A DNS entry. Then dhub.bluemountain123.live will be the url. You can have as many subdomains as you need.

Test if the url is working

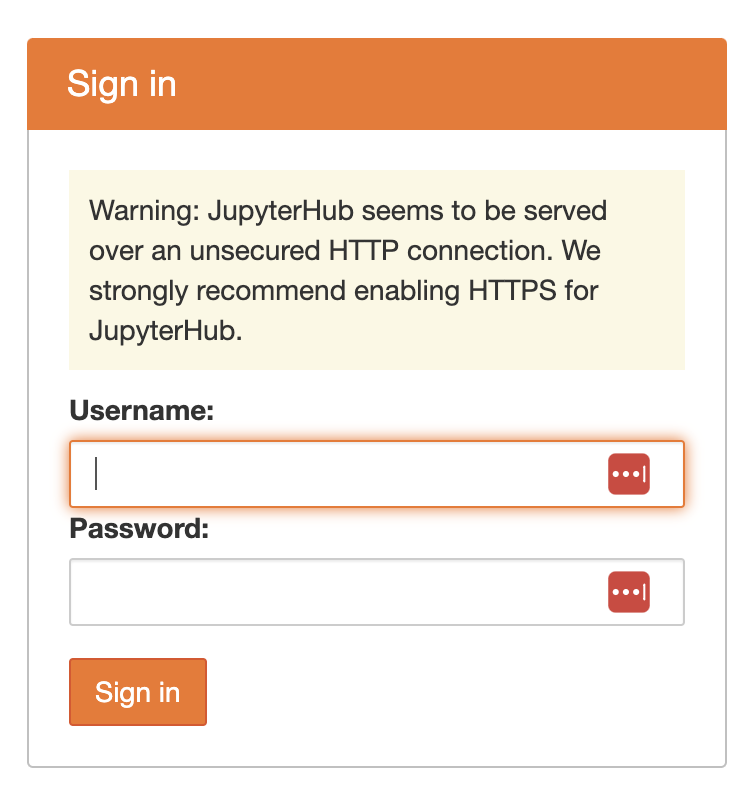

http:\\dhub.bluemountain123.live would be the url using the example domain above. Test that it is working (shows a JupyterHub login) before moving on. This is what you should see:

Set-up https on your JupyterHub

Log back into your Kubernetes cluster: go to portal.azure.com, click on your Kubernetes cluster name, and then click on “Connect”. Then click on “Open Cloud Shell”. Read documentation about https

Once you are on the shell, type

nano dconfig.yaml

to edit the config file. Paste this in and save. Note the additional jupyterhub: in the yaml file. This is not in a plain JupyterHub with Kubernetes config file (i.e. in a non-daskhub, the jupyterhub: bit is not there and everything is moved to left by 2 spaces).

jupyterhub:
  proxy:
    https:
      enabled: true
      hosts:
        - dhub.bluemountain123.live
      letsencrypt:
        contactEmail: your@email.com

Update the JupyterHub installation

Anytime you change dconfig.yaml you need to run this code.

helm upgrade --cleanup-on-fail --render-subchart-notes dhub dask/daskhub --namespace dhub --version=2023.1.0 --values dconfig.yaml

Test if https is working

Try https:\\dhub.bluemountain123.live and you should see the JupyterHub login without that http warning.

Step 3 Set up GitHub authentication

Optional, if you want to manage who can login via GitHub Team. I am going to show an example where I use a team on a GitHub organization to manage authentication. There are many other ways to manage users. Google to find that.

Create a new Oauth Application on GitHub

This is going to be associated with your (personal) GitHub account, but you can use a team on a GitHub org that you are owner of.

Log into GitHub and go to GitHub > Settings > Developer Settings > New Oauth Application

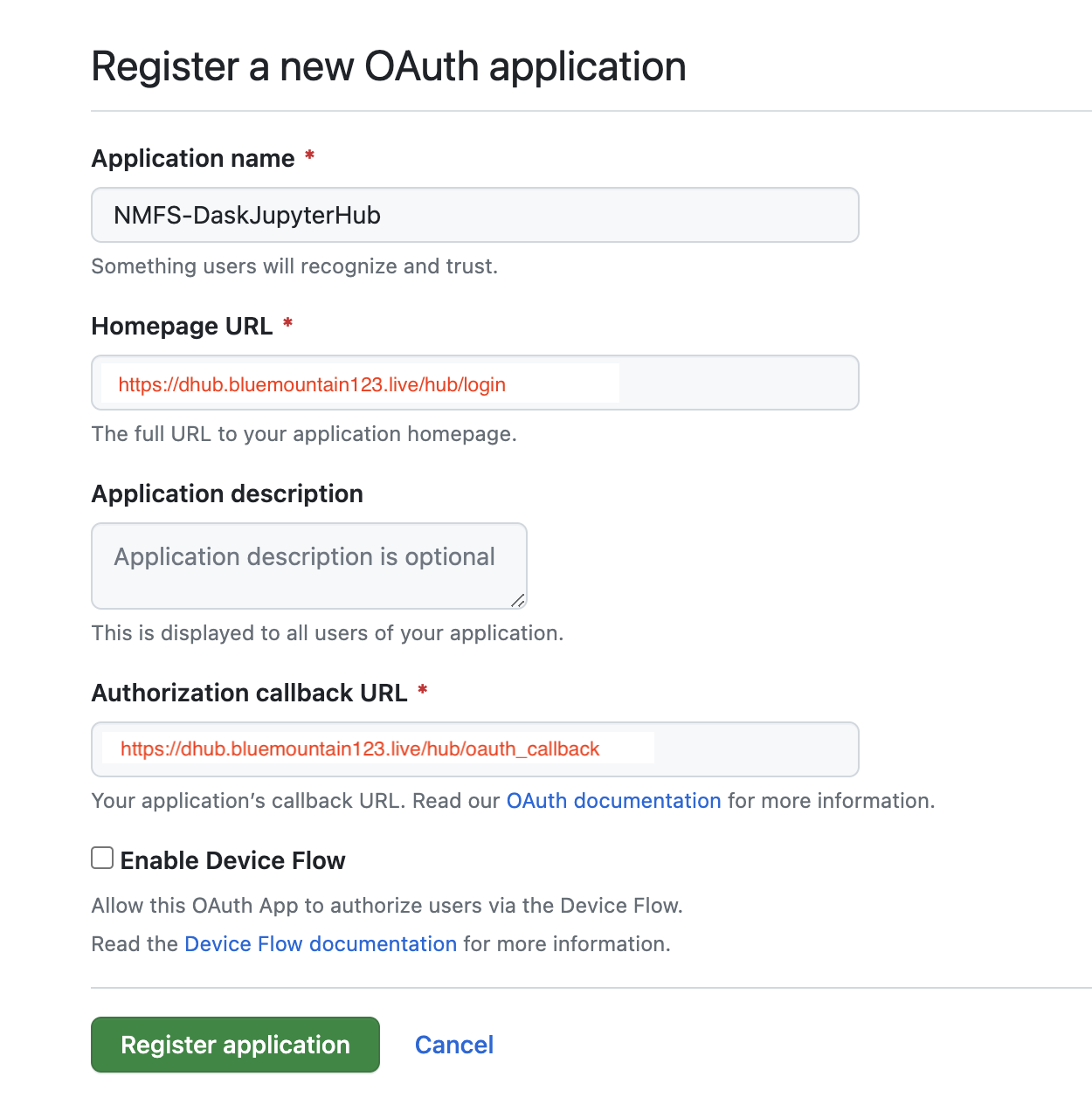

Look carefully at how I filled in the boxes.

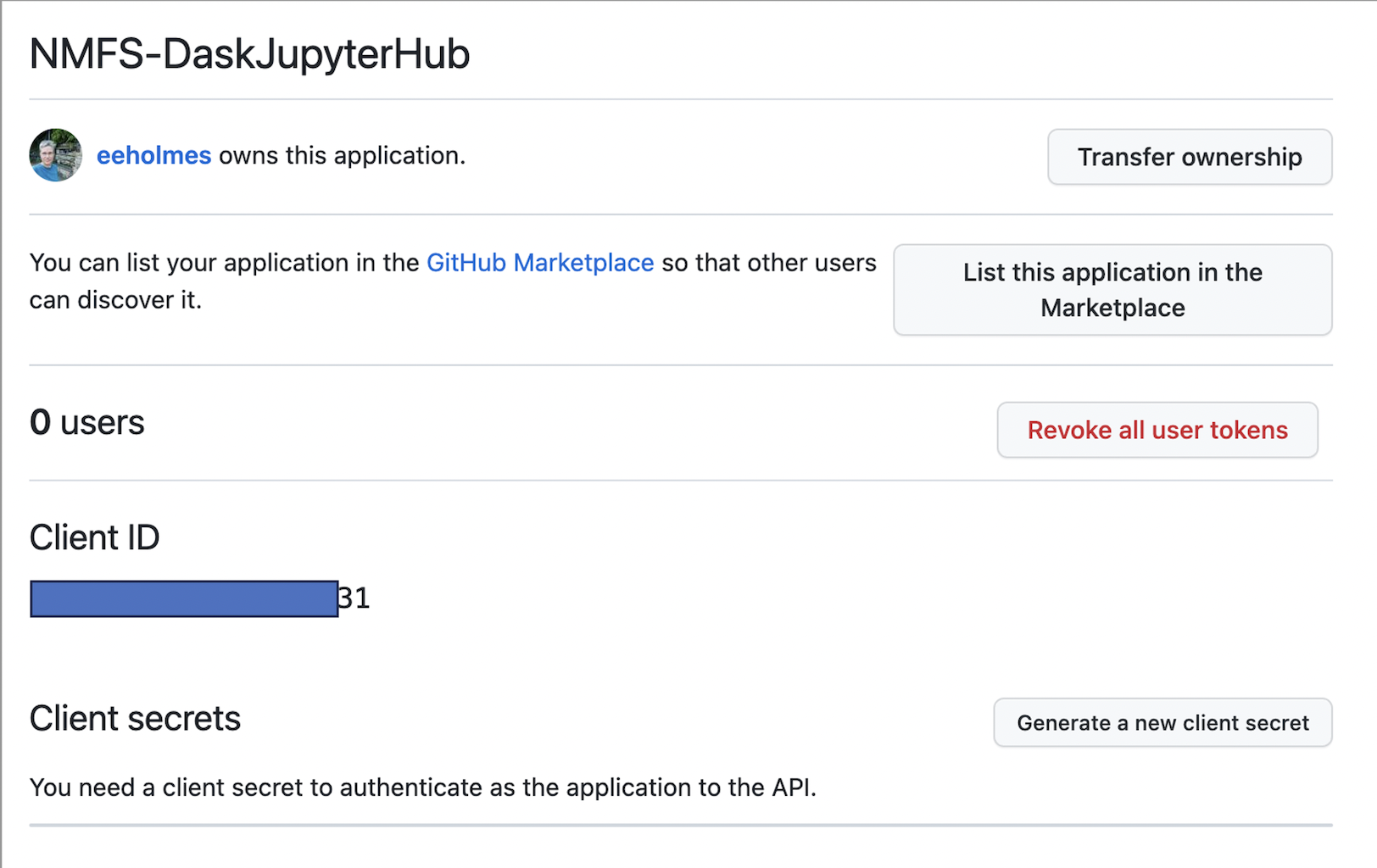

Next you will see something like this

You need to copy the ID and then click the create secrets button and save the secret. Save those for later.

Create a team in your GitHub org

You will be added by default and add anyone else who needs access to the hub. Let’s say your org is MyOrg and the team is called DaskHub. So then the allowed organization is MyOrg:DaskHub. You can leave off :DaskHub if you want to allow all members of the organization to log in.

Edit the `dconfig.yaml` file

nano dconfig.yaml

Add to your config file so it is now this. Replace the id, secret and url with your values. We need to set the KubeSpawner working directory because the Openscapes Docker image sets it to home/jovyan/.kernels–which is fine but annoying since .kernels is hidden and not $HOME.

jupyterhub:
  hub:
    config:
      GitHubOAuthenticator:
        client_id: <replace with your OAuth id>
        client_secret: <replace with your OAuth app secret>
        oauth_callback_url: https://dhub.bluemountain123.live/hub/oauth_callback
        allowed_organizations:
          - MyOrg:DaskHub
        scope:
          - read:org
      JupyterHub:
        authenticator_class: github
      KubeSpawner:
        working_dir: /home/jovyan
  proxy:
    https:
      enabled: true
      hosts:
        - dhub.bluemountain123.live
      letsencrypt:
        contactEmail: your@email.com

Update the hub

helm upgrade --cleanup-on-fail --render-subchart-notes dhub dask/daskhub --namespace dhub --version=2023.1.0 --values dconfig.yaml

Test

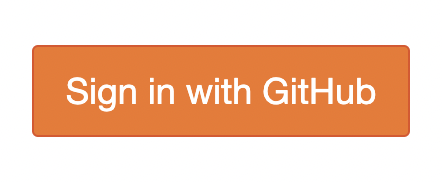

You should now see this and can authenticate with GitHub.

Set up the container image

Now you need to specify the Docker image that will be used. We will use 2 different profiles: Python and R (RStudio).

Edit the dconfig.yaml file and add the user image info. Note the spacing matters (a lot). I also added some Dask gateway config.

jupyterhub:
  hub:
    config:
      GitHubOAuthenticator:
        client_id: <replace with your OAuth id>
        client_secret: <replace with your OAuth app secret>
        oauth_callback_url: https://dhub.bluemountain123.live/hub/oauth_callback
        allowed_organizations:
          - MyOrg:DaskHub
        scope:
          - read:org
      JupyterHub:
        authenticator_class: github
  proxy:
    https:
      enabled: true
      hosts:
        - dhub.bluemountain123.live
      letsencrypt:
        contactEmail: your@email.com
  singleuser:
    image:
      name: openscapes/python
      tag: f577786
    cmd: null
  singleuser:
    # Defines the default image
    image:
      name: openscapes/python
      tag: f577786
    profileList:
      - display_name: "Python3"
        description: "NASA Openscapes Python image"
        default: true
      - display_name: "R"
        description: "NASA Openscapes RStudio image"
        kubespawner_override:
          image: openscapes/rocker:a7596b5
dask-gateway:
  gateway:
    extraConfig:
      idle: |-
        # timeout after 30 minutes of inactivity
        c.KubeClusterConfig.idle_timeout = 1800

Update the hub

helm upgrade --cleanup-on-fail --render-subchart-notes dhub dask/daskhub --namespace dhub --version=2023.1.0 --values dconfig.yaml

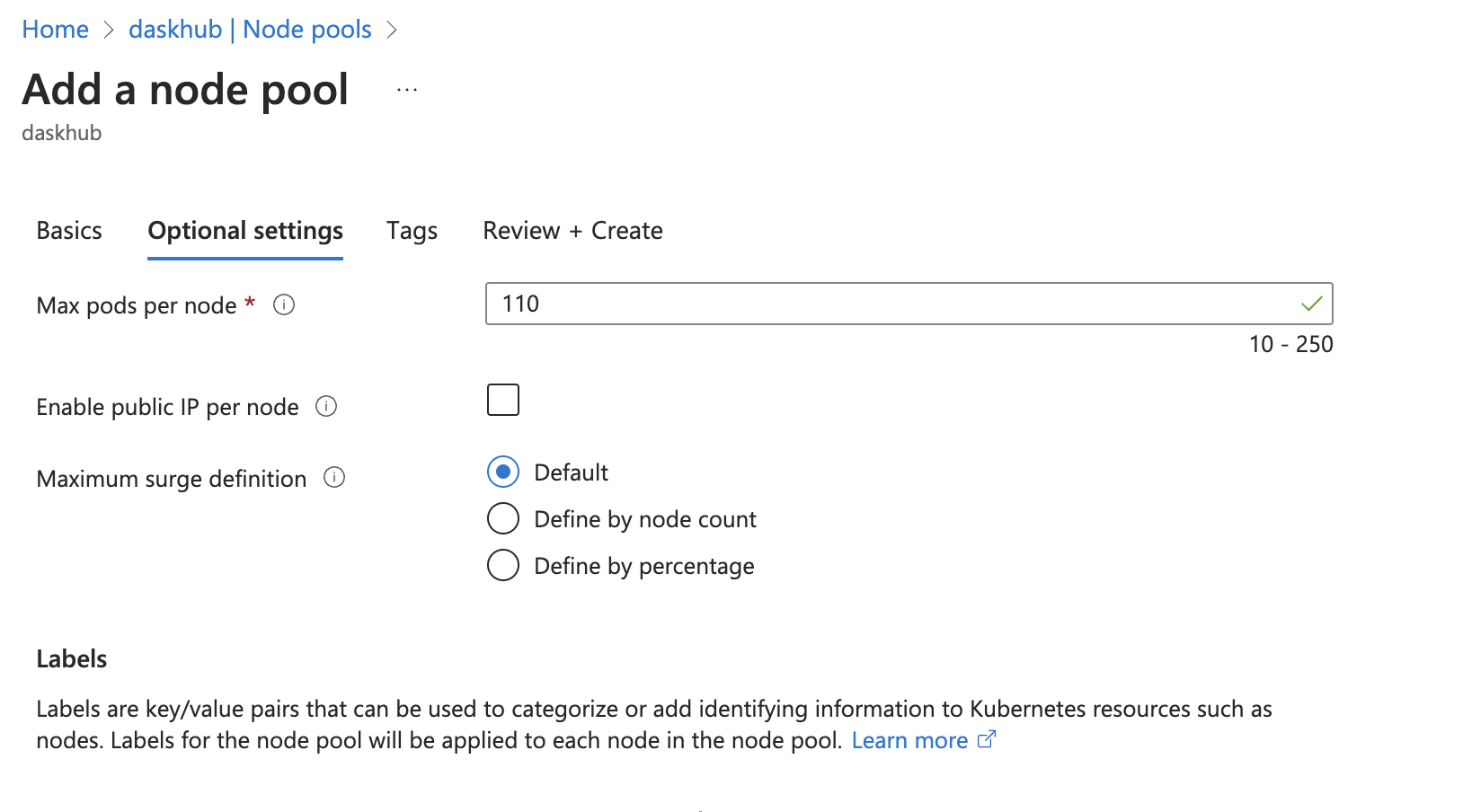

Changing the VM size

NOT WORKING YET I am stuck on creating the persistent volumes. Needed because you need the user storage somewhere if you have multiple node pools.

kubectl get nodes --show-labels | grep instance-type

beta.kubernetes.io/instance-type=Standard_D8s_v3

Create a separate disk for user data

I want the user data to be in a drive different from the VM being spun up for their notebook. Sounds easy here https://z2jh.jupyter.org/en/latest/jupyterhub/customizing/user-storage.html but I cannot string the steps together.

Steps, I think?

Create disk

Something like this?

https://bluexp.netapp.com/blog/azure-cvo-blg-azure-kubernetes-service-configuring-persistent-volumes-in-aks

But I can’t figure out the steps.

PVC

NOT WORKING YET

Is this pvc.yaml right?
How would I point this to the disk that I mount in the step above??

This command might have useful info

KUBE_EDITOR="nano" kubectl edit pvc --namespace=dhub claim-eeholmes

nana pvc.yaml

kind: PersistentVolumeClaim
apiVersion: v1
metadata:
  name: hub-db-dir
  labels:
    component: jupyter
spec:
  storageClassName: "standard" # name of storage class, it will be default storage class if unspecified.
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: "40Gi"

kubectl create -f pvc.yaml

To delete, you need to first edit the pvc yaml file and get rid of pvc protection. It is 2 lines.

kubectl --namespace=dhub get pvc
KUBE_EDITOR="nano" kubectl edit pvc --namespace=dhub claim-eeholmes

Then you can delete

kubectl --namespace=dhub delete pvc claim-eeholmes

Check that it is gone

kubectl --namespace=dhub get pvc

if not try

kubectl --namespace=dhub delete pvc claim-eeholmes --grace-period=0 --force

PV

Need a persistent volume claim too….

Tell the hub about the disk

https://z2jh.jupyter.org/en/latest/jupyterhub/customizing/user-storage.html

But see how this is done on the Openscapes 2i2c hub https://github.com/2i2c-org/infrastructure/blob/master/config/clusters/openscapes/common.values.yaml

I know their set-up is a little different: basehub -> jupyterhub in the helm chart, but I don’t see how the singleuser bit in the yaml file is referencing the nfs in the top of that yaml.

Troubleshooting

I cannot clone repos in the JupyterHub. Restart the server. In Jupyter, File > Hub Control Panel > Stop My Server.
